Festo 538677. Sub-base VMPA2-FB-AP-2-1-T0

Name: Festo 538677. Sub-base VMPA2-FB-AP-2-1-T0
Brand: Festo
SKU: FES-538677
Price: 24.41 EUR
Availability: InStock

€24.41

Excl. 19% VAT , excl. Shipping Cost

Article

FES-538677

Manufacturer Nr.

VMPA2-FB-AP-2-1-T0

Sub-base

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 538677. Sub-base VMPA2-FB-AP-2-1-T0
€24.41
Excl. 19% VAT , excl. Shipping Cost

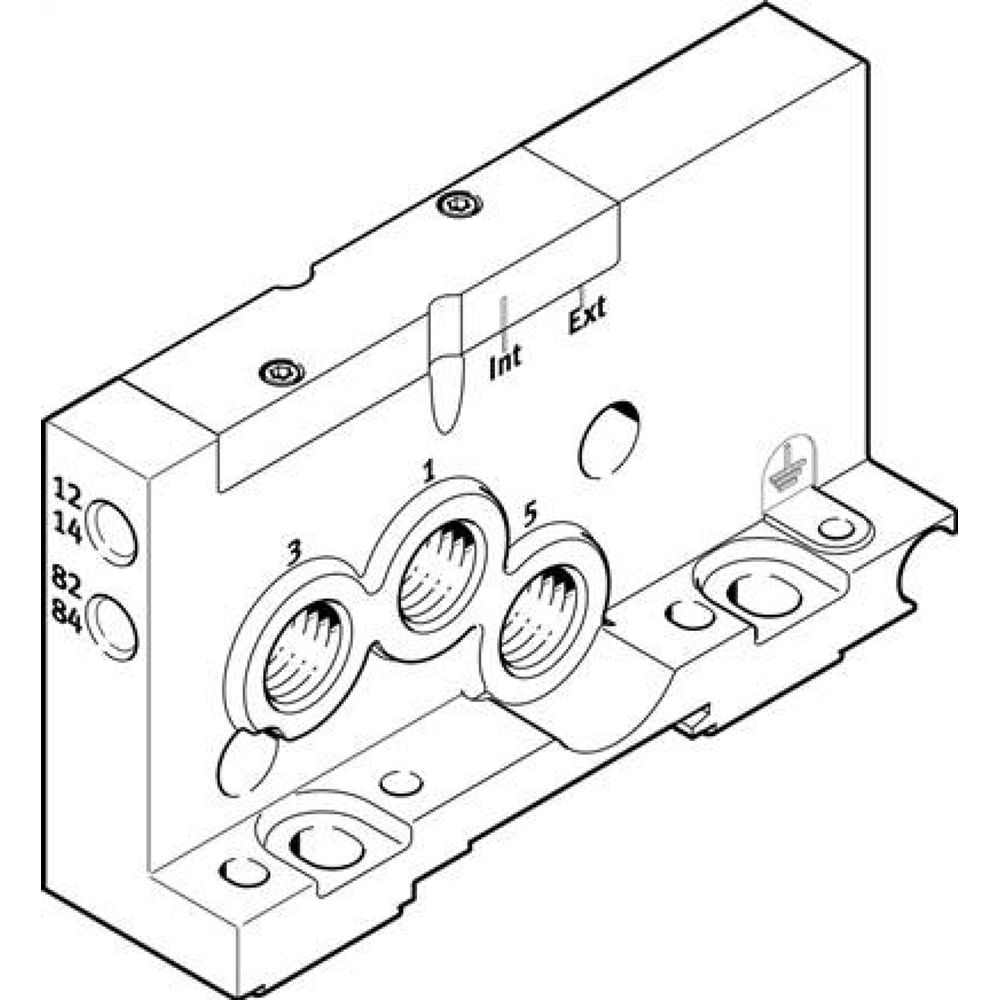

Festo 560947. End plate VMPAL-EPR-SP
€11.58
Excl. 19% VAT , excl. Shipping Cost
Festo 539502. Multi-pin CPV14-VI-P2-1/8-D
€86.08
Excl. 19% VAT , excl. Shipping Cost

Total price

Width	43 mm
Length	107.3 mm
Grid dimension	21 mm
Max. number of valve positions	2
Operating pressure	-0.09 MPa ... 1 MPa
Operating pressure	-0.9 bar ... 10 bar
Pilot pressure	0.3 MPa ... 0.8 MPa
Pilot pressure	3 bar ... 8 bar
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-5 °C ... 50 °C
Product weight	185 g
Pneumatic connection, port 2	G1/8
Pneumatic connection, port 4	G1/8
Note on materials	RoHS-compliant
Material sub-base	Die-cast aluminium

More Information
Manufacturer Nr.	VMPA2-FB-AP-2-1-T0
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568089467
Weight	0.175000
HS-Code	84819000
Article authenticity	Original product
Condition of article	New
