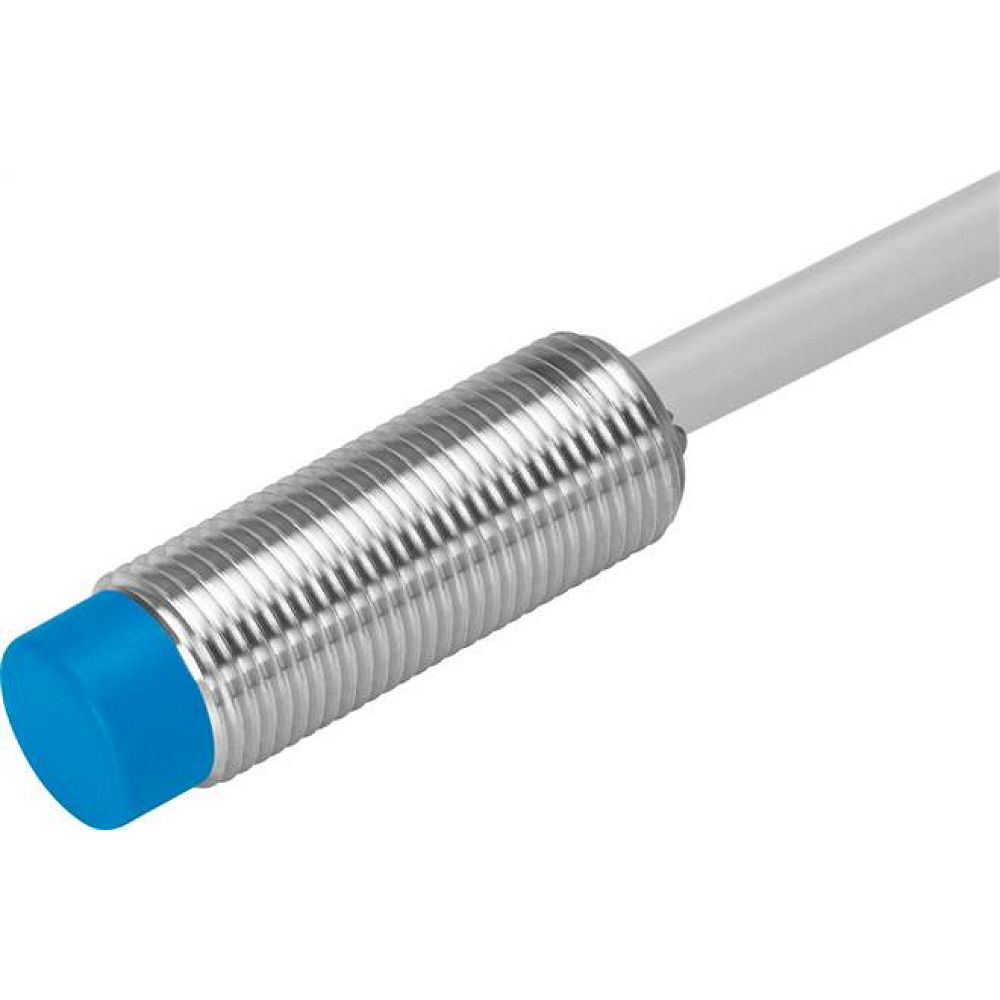

Festo 150408. Proximity sensor SIEN-M12NB-NS-K-L
Manufacturer Nr.
SIEN-M12NB-NS-K-L
Frequently Bought Together
Conforms to standard EN 60947-5-2 Symbol 00991704 Approval RCM trademark
c UL us listed (OL) CE mark (see declaration of conformity) To EU EMC Directive Rated operating distance 4 mm Assured operating distance 3.24 mm Reduction factors Aluminium = 0.5
Stainless steel St 18/8 = 0.9
Copper = 0.5
Brass = 0.6
Steel St 37 = 1.0 Ambient temperature -25 °C ... 70 °C Repetition accuracy with constant conditions 0.2 mm Switching output NPN Switching element function N/O contact Hysteresis 0.36 mm Max. switching frequency 2000 Hz Max. output current 200 mA Voltage drop 2 V Inductive protective circuit Integrated Short circuit current rating Pulsed Operational voltage range DC 10 V ... 30 V Residual ripple ± 10% No-load supply current 10 mA Reverse polarity protection For all electrical connections Electrical connection Cable Cable length 2.5 m Material cable sheath TPE-U(PUR) Size M12x1 Type of mounting Via lock nut Mounting type Not flush Product weight 90 g Material housing Brass
PBTP
Nickel-plated Switching status indication Yellow LED Ambient temperature with moving cable -5 °C ... 70 °C Degree of protection IP65
IP67 Corrosion resistance class CRC 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Additional information for sensor selection with standard sensing distance Electrical output NPN Selection of sensor design Standard
More Information
Manufacturer Nr.
SIEN-M12NB-NS-K-L
Manufacturer
Festo
GPSR manufacturer information
Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN
4052568069186
Weight
0.110000
HS-Code
85365019
Article authenticity
Original product
Condition of article
New
