Festo 538268. Proximity sensor SIED-M12NB-ZS-K-L

Name: Festo 538268. Proximity sensor SIED-M12NB-ZS-K-L
Brand: Festo
SKU: FES-538268
Price: 72.27 EUR
Availability: InStock

€72.27

Excl. 19% VAT , excl. Shipping Cost

Article

FES-538268

Manufacturer Nr.

SIED-M12NB-ZS-K-L

Proximity sensor

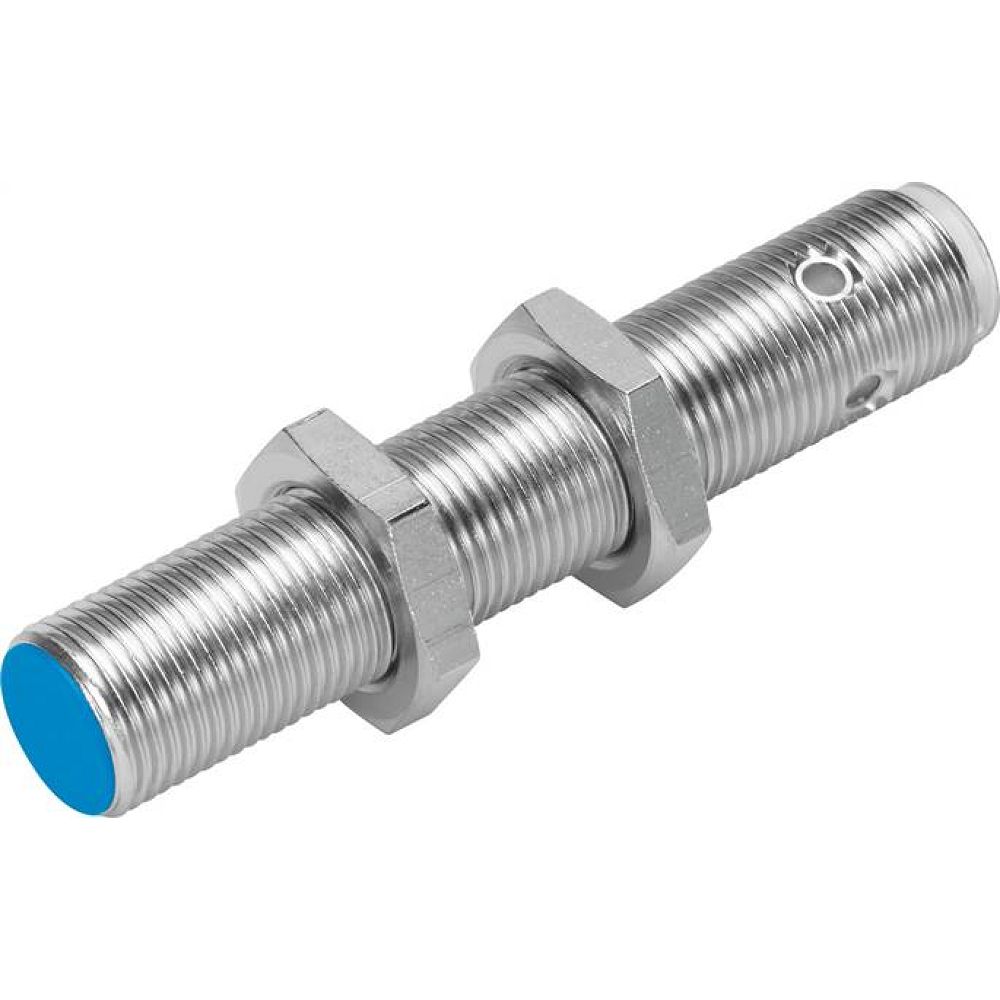

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 538268. Proximity sensor SIED-M12NB-ZS-K-L
€72.27
Excl. 19% VAT , excl. Shipping Cost
Festo 551391. Proximity sensor SIES-8M-PO-24V-K-7,5-OE
€64.19
Excl. 19% VAT , excl. Shipping Cost
Festo 538288. Proximity sensor SIED-M30B-ZS-K-L
€79.42
Excl. 19% VAT , excl. Shipping Cost

Total price

Design	Round
Conforms to standard	EN 60947-5-2
Symbol	00991712
Approval	RCM trademark c UL us listed (OL)
CE mark (see declaration of conformity)	To EU EMC Directive To EU Low Voltage Directive
Measuring principle	Inductive
Rated operating distance	4 mm
Assured operating distance	3.24 mm
Reduction factors	Aluminium = 0.6 Stainless steel St 18/8 = 0.9 Copper = 0.5 Brass = 0.6 Steel St 37 = 1.0
Ambient temperature	-25 °C ... 85 °C
Repetition accuracy	0.2 mm
Switching output	Non-contacting, 2-wire
Switching element function	N/O contact
Hysteresis	0.03 mm ... 0.88 mm
Max. switching frequency DC	900 Hz
Max. switching frequency AC	25 Hz
Max. output current	200 mA
Voltage drop	8 V
Min. load current	5 mA
Short circuit current rating	no
Operational voltage range AC	20 V ... 265 V
Operational voltage range DC	20 V ... 320 V
Mains frequency	50 Hz
No-load supply current	1.5 mA
Reverse polarity protection	For all electrical connections
Electrical connection	2-wire Cable
Cable length	2.5 m
Material cable sheath	TPE-U(PUR)
Material insulating sheath	PVC
Size	M12
Type of mounting	Via lock nut
Tightening torque	10 Nm
Mounting type	Not flush
Product weight	90 g
Material housing	Brass PA Nickel-plated
Switching status indication	Yellow LED
Ambient temperature with moving cable	-5 °C ... 50 °C
Degree of protection	IP67
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L
Additional information for sensor selection	For DC and AC voltage
Electrical output	Non-contacting, 2-wire
Selection of sensor design	Standard

More Information
Manufacturer Nr.	SIED-M12NB-ZS-K-L
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568089016
Weight	0.100000
HS-Code	85365019
Article authenticity	Original product
Condition of article	New
