Festo 538271. Proximity sensor SIED-M12B-ZS-S-L

Name: Festo 538271. Proximity sensor SIED-M12B-ZS-S-L
Brand: Festo
SKU: FES-538271
Price: 72.27 EUR
Availability: InStock

€72.27

Excl. 19% VAT , excl. Shipping Cost

Article

FES-538271

Manufacturer Nr.

SIED-M12B-ZS-S-L

Proximity sensor

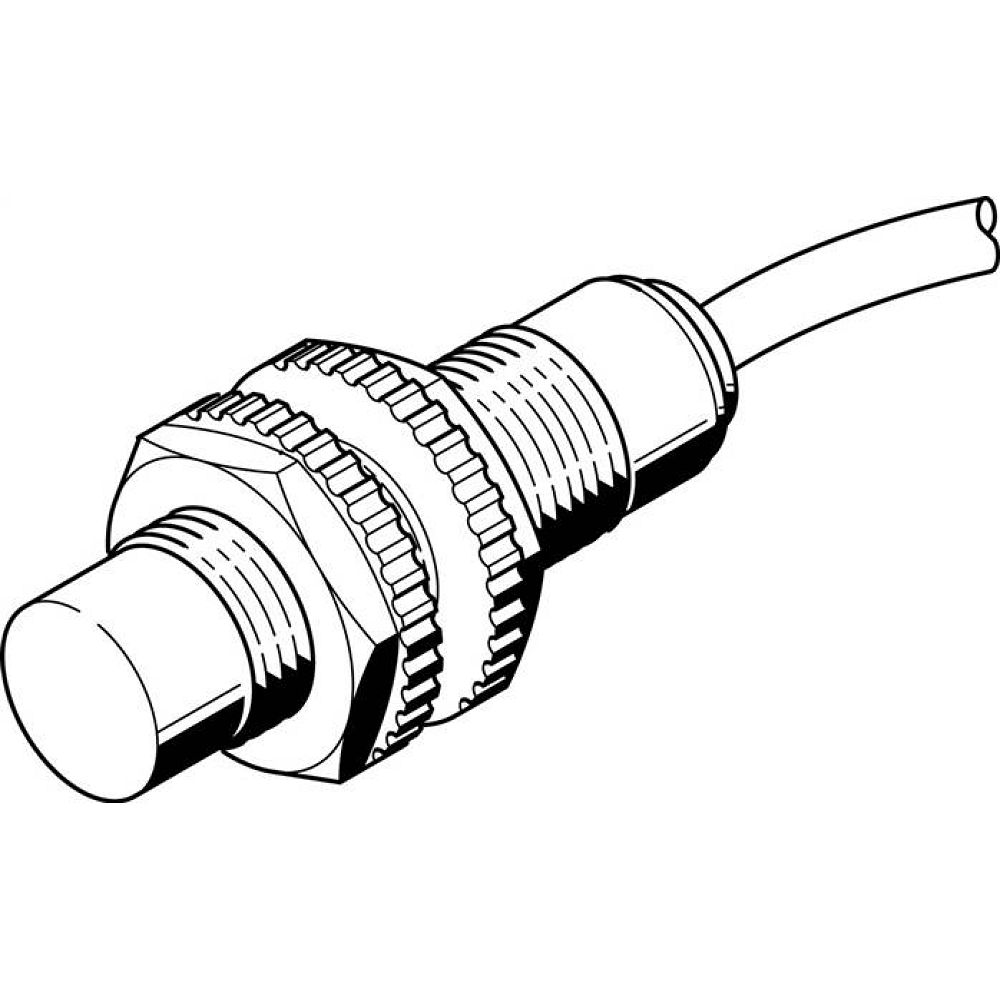

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 538271. Proximity sensor SIED-M12B-ZS-S-L
€72.27
Excl. 19% VAT , excl. Shipping Cost
Festo 150405. Proximity sensor SIEN-M12B-NO-S-L
€55.63
Excl. 19% VAT , excl. Shipping Cost
Festo 150447. Proximity sensor SIEN-M30NB-PO-S-L
€62.52
Excl. 19% VAT , excl. Shipping Cost

Total price

Design	Round
Conforms to standard	EN 60947-5-2
Symbol	00991714
Approval	RCM trademark c UL us listed (OL)
CE mark (see declaration of conformity)	To EU EMC Directive To EU Low Voltage Directive
Measuring principle	Inductive
Rated operating distance	2 mm
Assured operating distance	1.62 mm
Reduction factors	Aluminium = 0.5 Stainless steel St 18/8 = 0.9 Copper = 0.4 Brass = 0.6 Steel St 37 = 1.0
Ambient temperature	-25 °C ... 85 °C
Repetition accuracy	0.1 mm
Switching output	Non-contacting, 2-wire
Switching element function	N/O contact
Hysteresis	0.02 mm ... 0.44 mm
Max. switching frequency DC	1200 Hz
Max. switching frequency AC	25 Hz
Max. output current	200 mA
Voltage drop	8 V
Min. load current	5 mA
Short circuit current rating	no
Operational voltage range AC	20 V ... 265 V
Operational voltage range DC	20 V ... 320 V
Mains frequency	50 Hz
No-load supply current	1.5 mA
Reverse polarity protection	For all electrical connections
Electrical connection	2-pin M12x1 Plugs
Size	M12
Type of mounting	Via lock nut
Tightening torque	10 Nm
Mounting type	Flush
Product weight	20 g
Material housing	Brass PA Nickel-plated
Switching status indication	Yellow LED
Degree of protection	IP67
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L
Additional information for sensor selection	For DC and AC voltage
Electrical output	Non-contacting, 2-wire
Selection of sensor design	Standard

More Information
Manufacturer Nr.	SIED-M12B-ZS-S-L
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568089047
Weight	0.033000
HS-Code	85365019
Article authenticity	Original product
Condition of article	New
