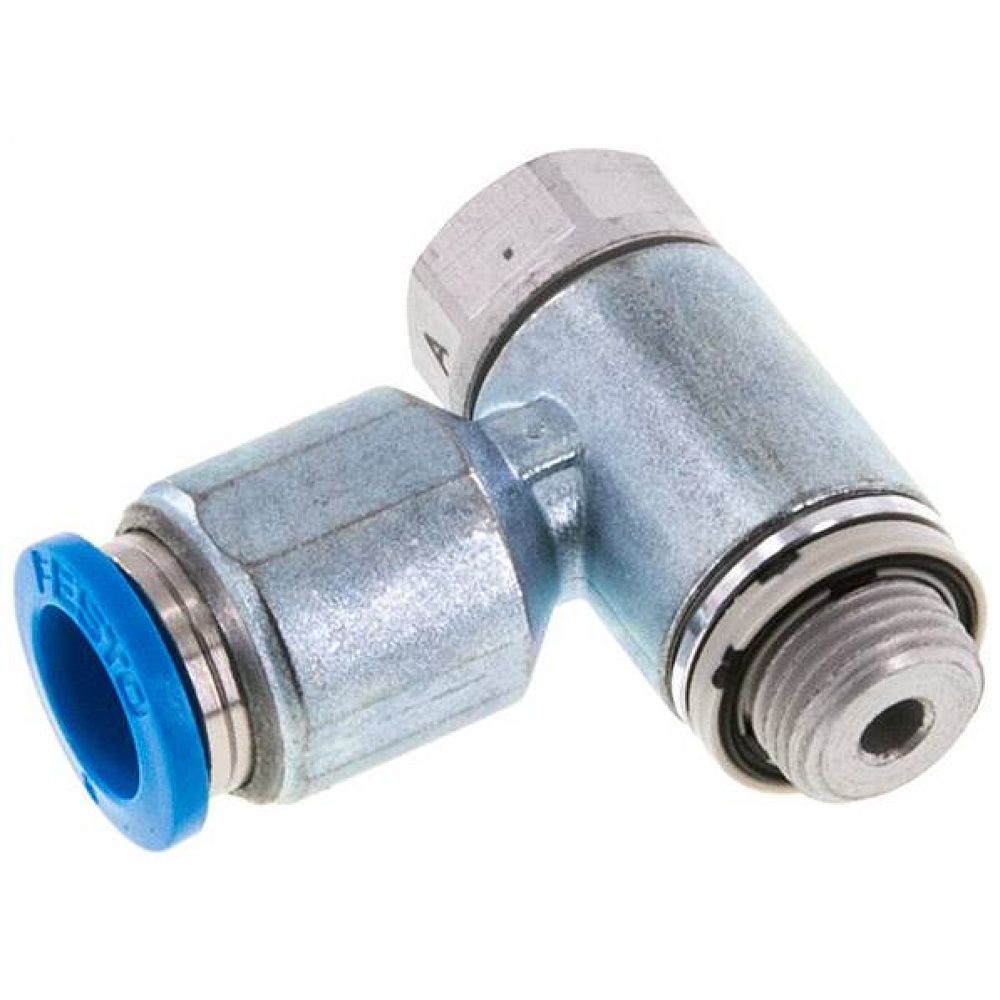

Festo 193145. One-way flow control valve GRLA-1/8-QS-8-D
€12.58
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-193145
Manufacturer Nr.
GRLA-1/8-QS-8-D
One-way flow control valve
Frequently Bought Together
-
This Item:
€12.58Excl. 19% VAT , excl. Shipping Cost
-

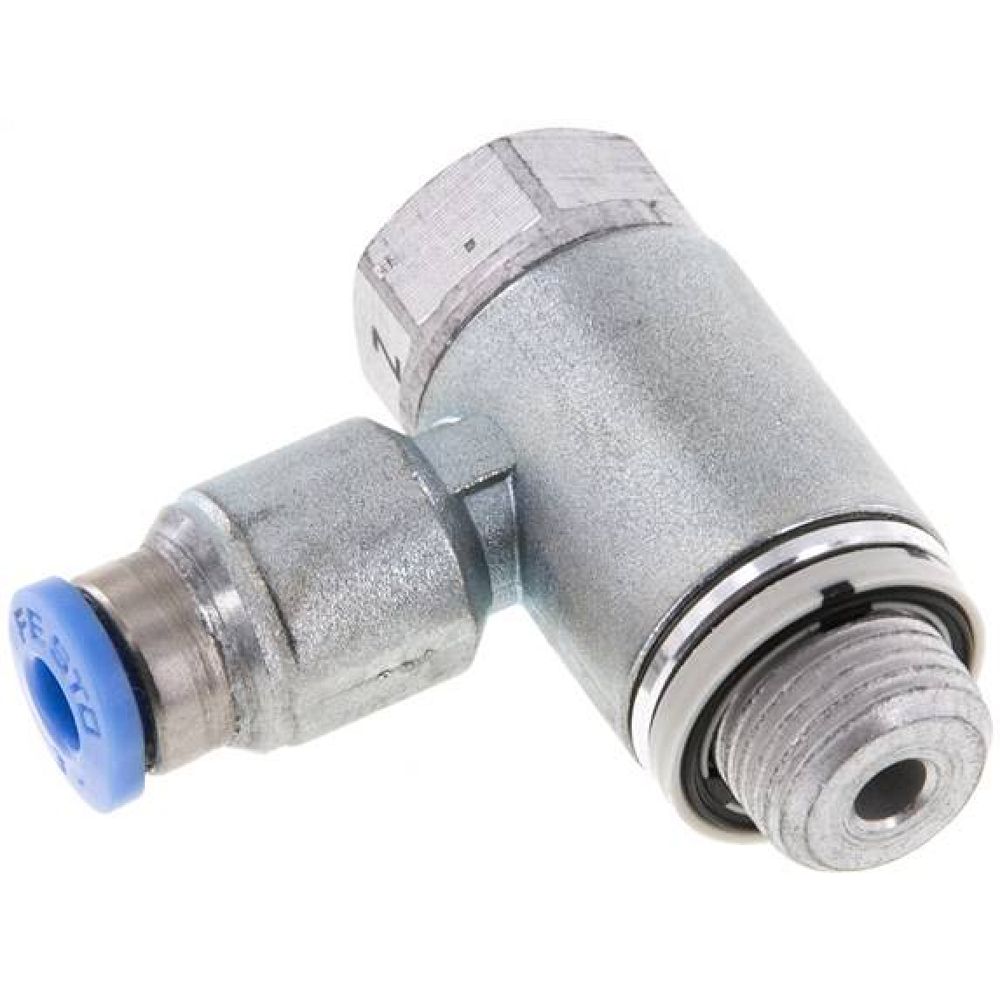

Festo 193156. One-way flow control valve GRLZ-1/8-QS-3-D
€12.84Excl. 19% VAT , excl. Shipping Cost
-
Festo 151165. One-way flow control valve GRLA-1/8-B
€22.47Excl. 19% VAT , excl. Shipping Cost
Total price
| Valve function | Exhaust air one-way flow control function |
| Pneumatic connection, port 1 | QS-8 |
| Pneumatic connection, port 2 | G1/8 |
| Adjustment component | Slotted head screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 215 l/min |
| Standard nominal flow rate in blocked direction | 175 l/min ... 250 l/min |
| Ambient temperature | -10 °C ... 60 °C |
| Maritime classification | See certificate |
| Mounting position | optional |
| Symbol | 00991452 |
| Operating pressure complete temperature range | 0.2 bar ... 10 bar |
| Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) | 400 l/min |
| Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi) | 330 l/min ... 410 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 °C ... 60 °C |
| Nominal torque | 3 Nm |
| Tolerance for nominal tightening torque | ± 10% |
| Product weight | 22 g |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material release ring | POM |
| Material adjusting screw | Brass |
| Material swivel fitting | Die-cast zinc Chromated |
| Manufacturer Nr. | GRLA-1/8-QS-8-D |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568015053 |
| Weight | 0.024000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought

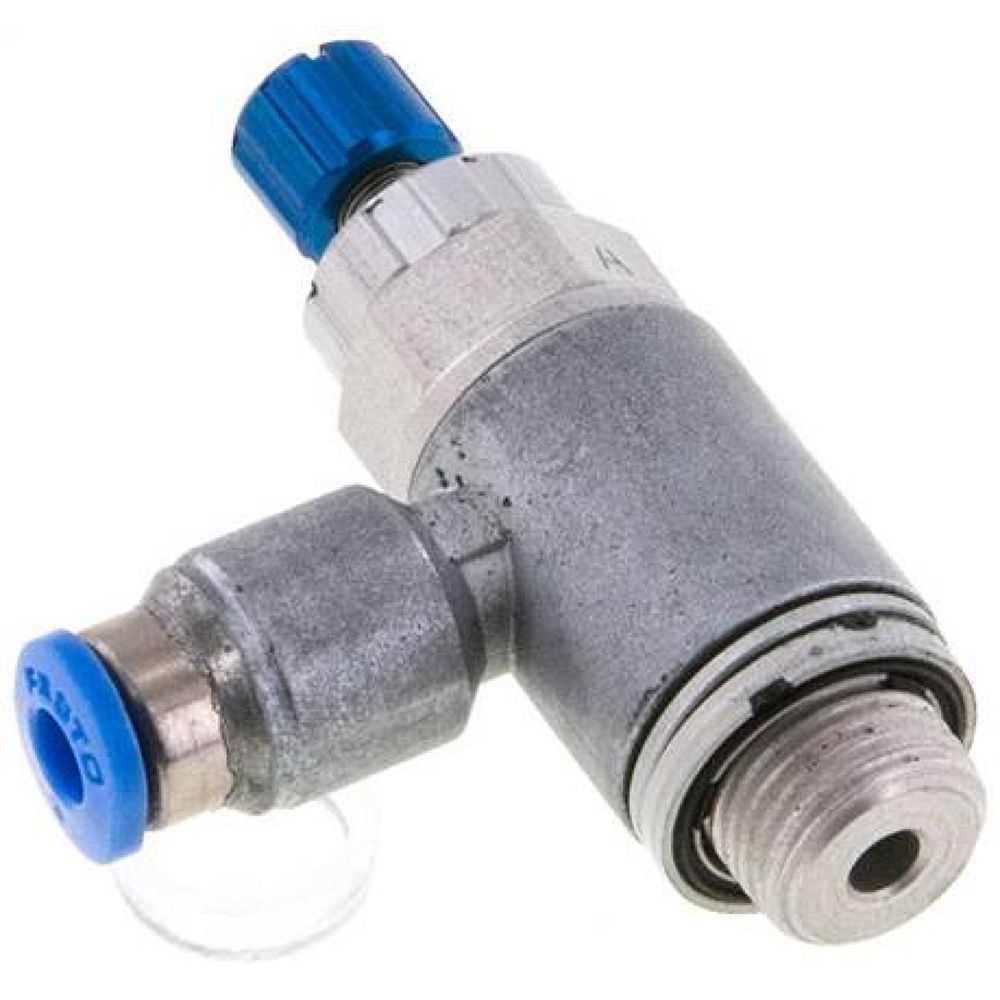

Festo 197579. One-way flow control valve GRLA-1/8-QS-3-RS-D
€14.65
Excl. 19% VAT ,
excl. Shipping Cost

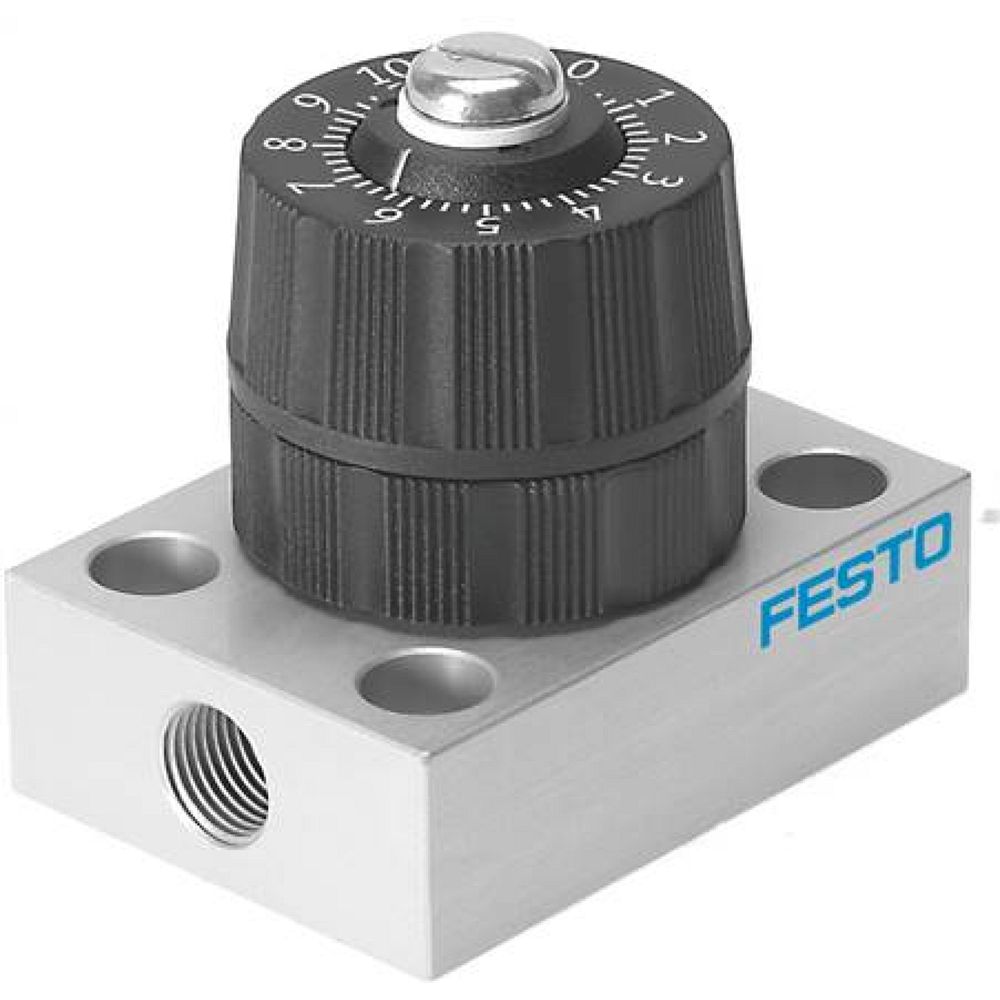

Festo 542022. Precision one-way flow control valve GRP-70-1/8-AL
€131.41
Excl. 19% VAT ,
excl. Shipping Cost

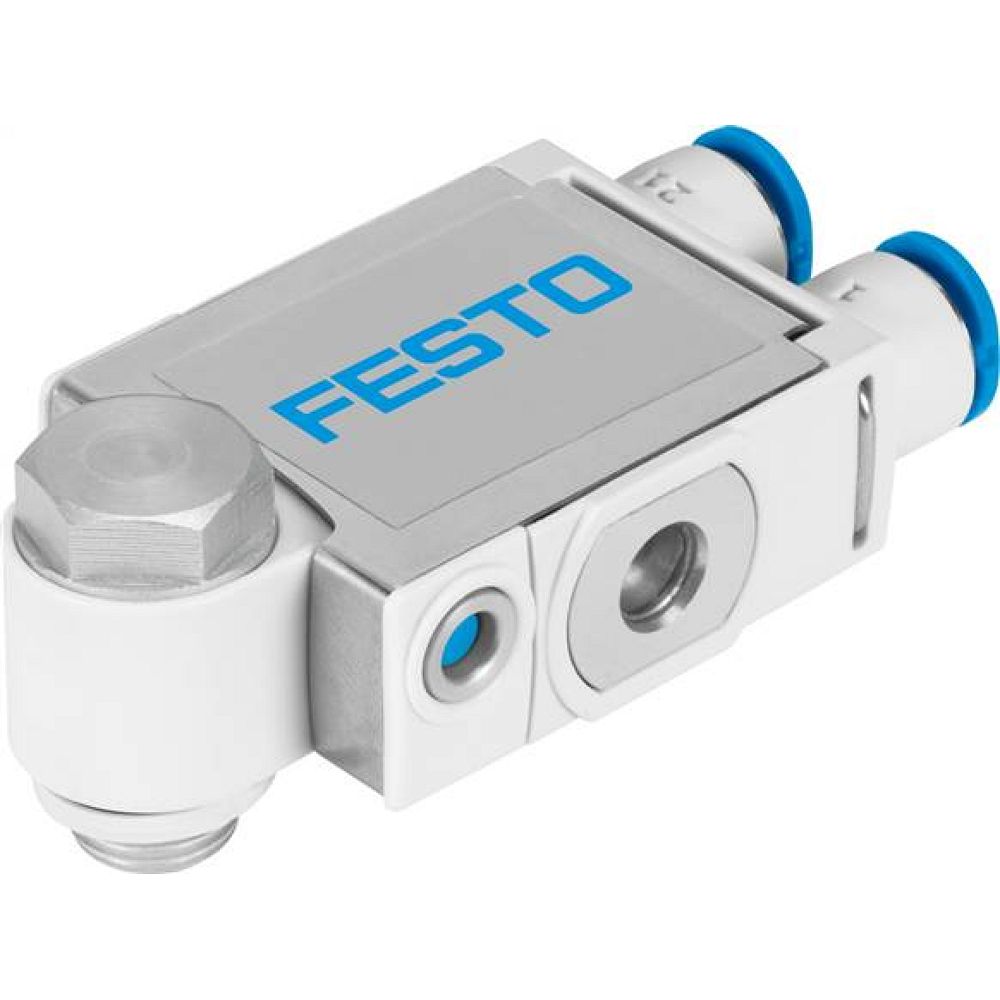

Festo 1927030. One-way flow control valve VFOF-LE-BAH-G14-Q8
€91.86
Excl. 19% VAT ,
excl. Shipping Cost

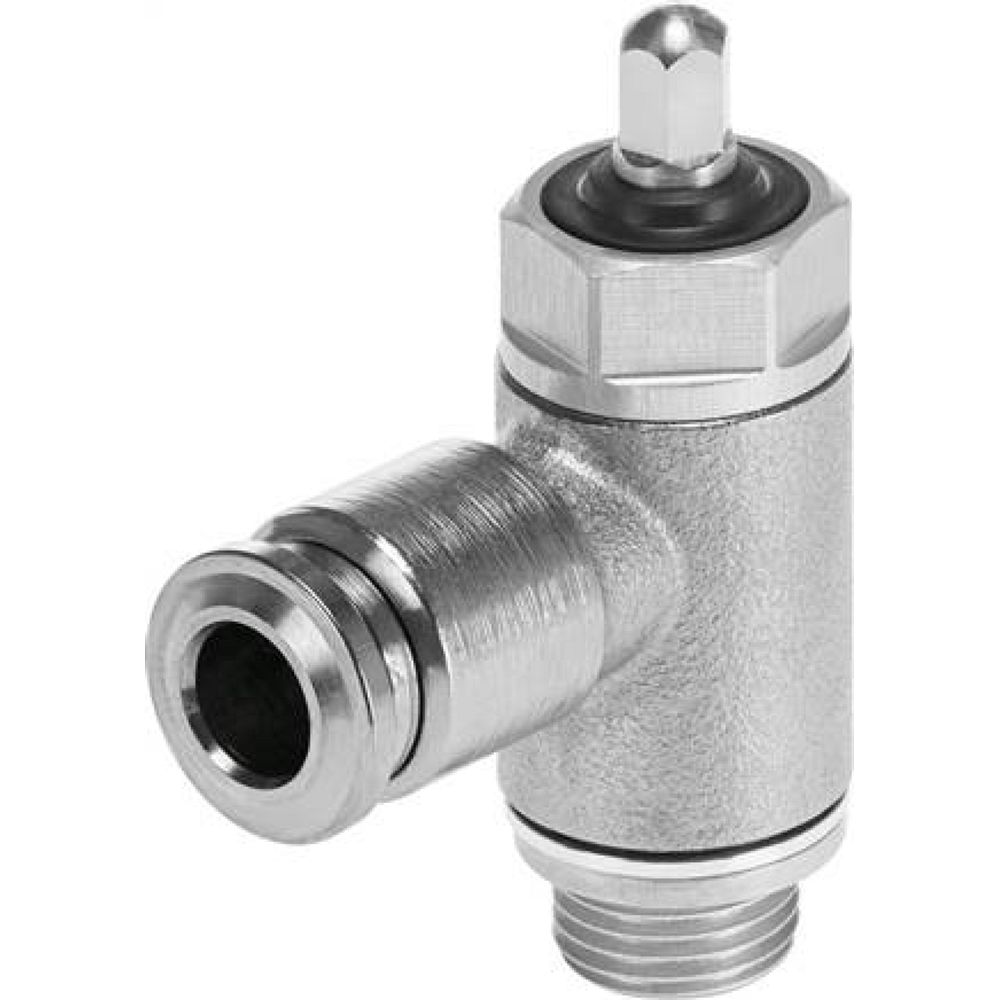

Festo 578801. One-way flow control valve VFOH-LE-A-G14-Q10
