Festo 175825. Proximity sensor SMTSO-8E-NS-M12-LED-24
€142.25
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-175825
Manufacturer Nr.
SMTSO-8E-NS-M12-LED-24
Proximity sensor
Frequently Bought Together
-
This Item:
€142.25Excl. 19% VAT , excl. Shipping Cost
-

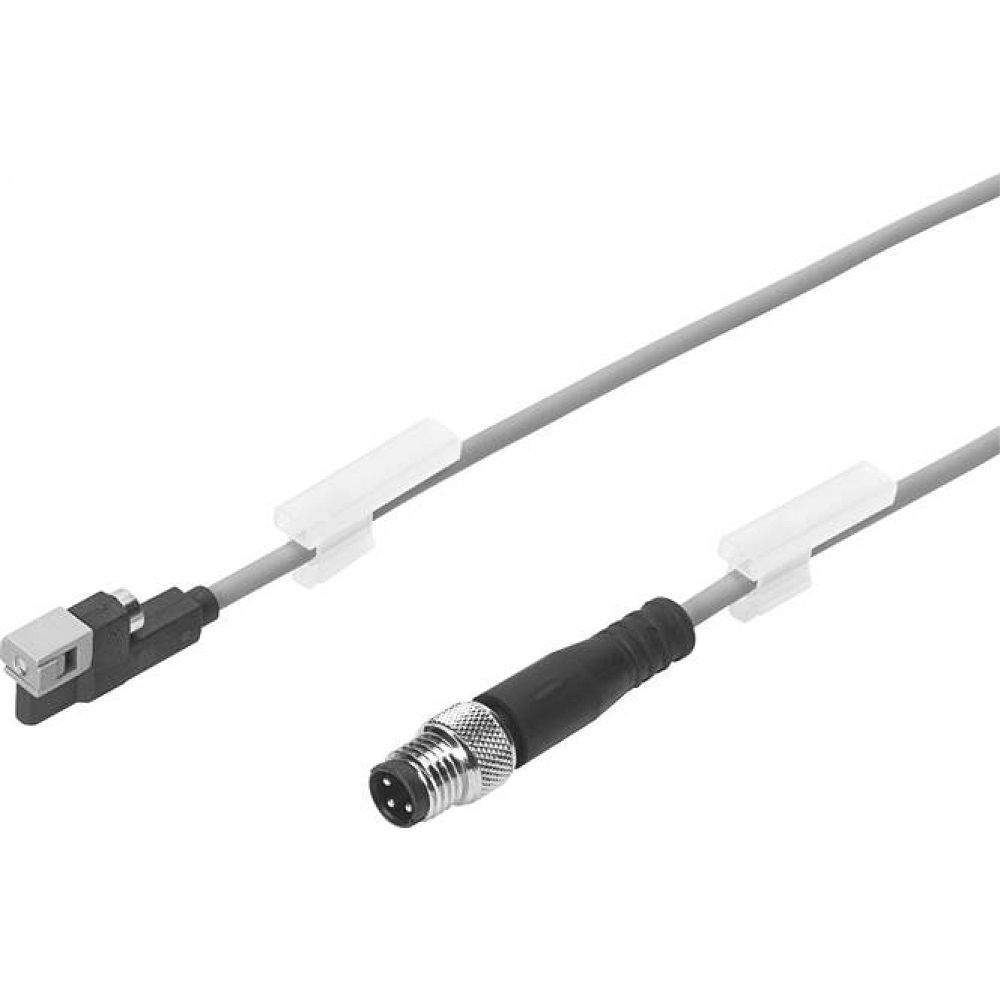

Festo 8065027. Proximity sensor SMT-8G-NS-24V-E-0,3Q-M8D
€45.66Excl. 19% VAT , excl. Shipping Cost
-
Festo 173210. Proximity sensor SME-10-KL-LED-24
€41.54Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | For T-slot |
| Based on standard | EN 60947-5-2 |
| Symbol | 00991150 |
| Approval | RCM trademark |
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive |
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Special characteristics | Welding field resistant Resistant to welding spatter |
| Note on materials | RoHS-compliant |
| Instructions on use | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position |
| Measuring principle | Magneto-inductive |
| Ambient temperature | -25 °C ... 70 °C |
| Repetition accuracy | 0.2 mm |
| Switching output | NPN |
| Switching behavior during welding process | Output signal freezes |
| Switching element function | N/O contact |
| Switch-on time | 38 ms |
| Switch-off time | 20 ms |
| Max. switching frequency | 14 Hz |
| Max. output current | 200 mA |
| Max. switching capacity DC | 6 W |
| Voltage drop | 3 V |
| Off-state current | 0.01 mA |
| Short circuit current rating | Pulsed |
| Overload protection | Available |
| Operational voltage range DC | 10 V ... 30 V |
| Residual ripple | 10 % |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection type | Plugs |
| Electrical connection 1, connector system | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of connections/cores | 3 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection 1, connection pattern | 00995573 |
| Connection outlet orientation | Lateral |
| Material electrical contact | Gold-plated brass |
| Type of mounting | Clamped in T-slot With accessories Insertable in the slot from above |
| Mounting position | optional |
| Product weight | 10 g |
| Housing colour | Black |
| Material housing | Wrought aluminium alloy PA PUR High-alloy stainless steel |
| Switching status indication | Yellow LED |
| Degree of protection | IP65 IP67 |
| Immunity to magnetic fields | 45 - 65 Hz Alternating magnetic field |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer Nr. | SMTSO-8E-NS-M12-LED-24 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568143411 |
| Weight | 0.025000 |
| HS-Code | 85365019 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought
Festo 2476855. Proximity sensor SDBT-BSW-1L-PU-W-0.3-N-M12
€43.03
Excl. 19% VAT ,
excl. Shipping Cost

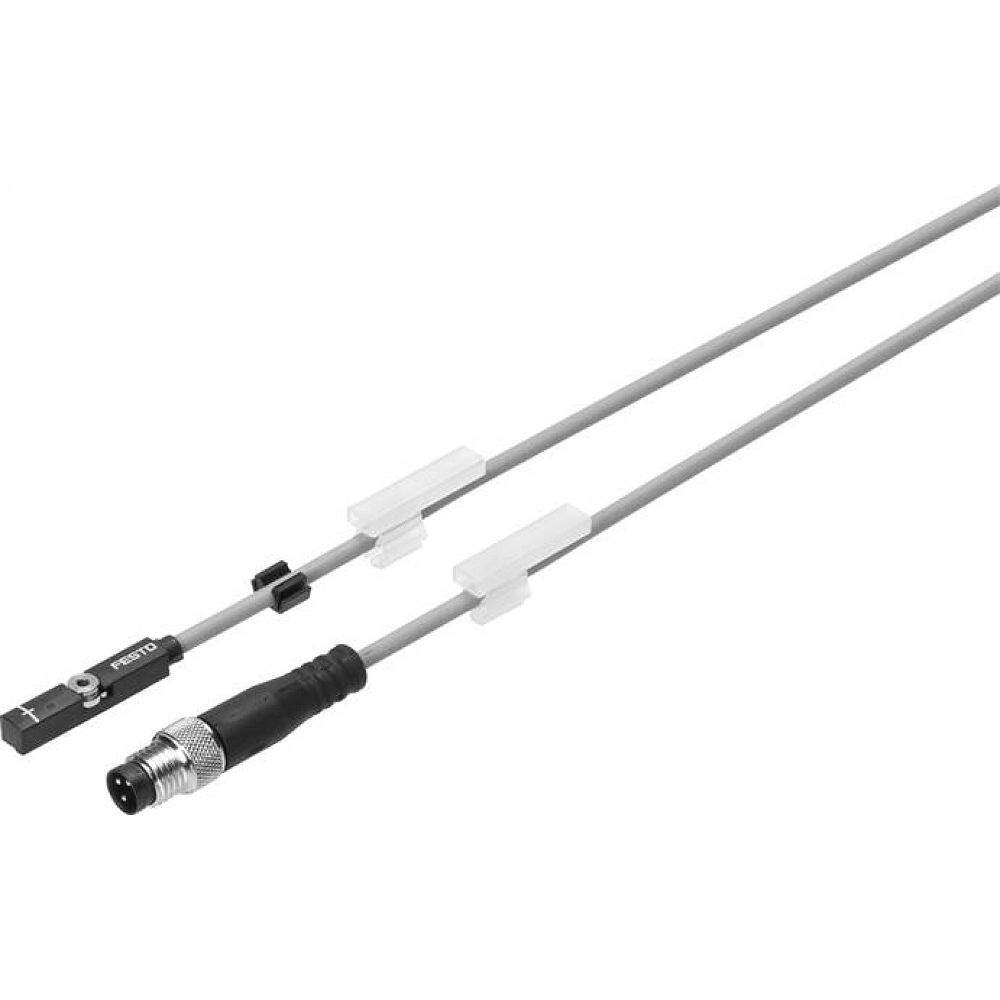

Festo SMT-8M-A-PSO-24V-E-0,3-M8D (574344) Proximity Sensor
€29.25
Excl. 19% VAT ,
excl. Shipping Cost

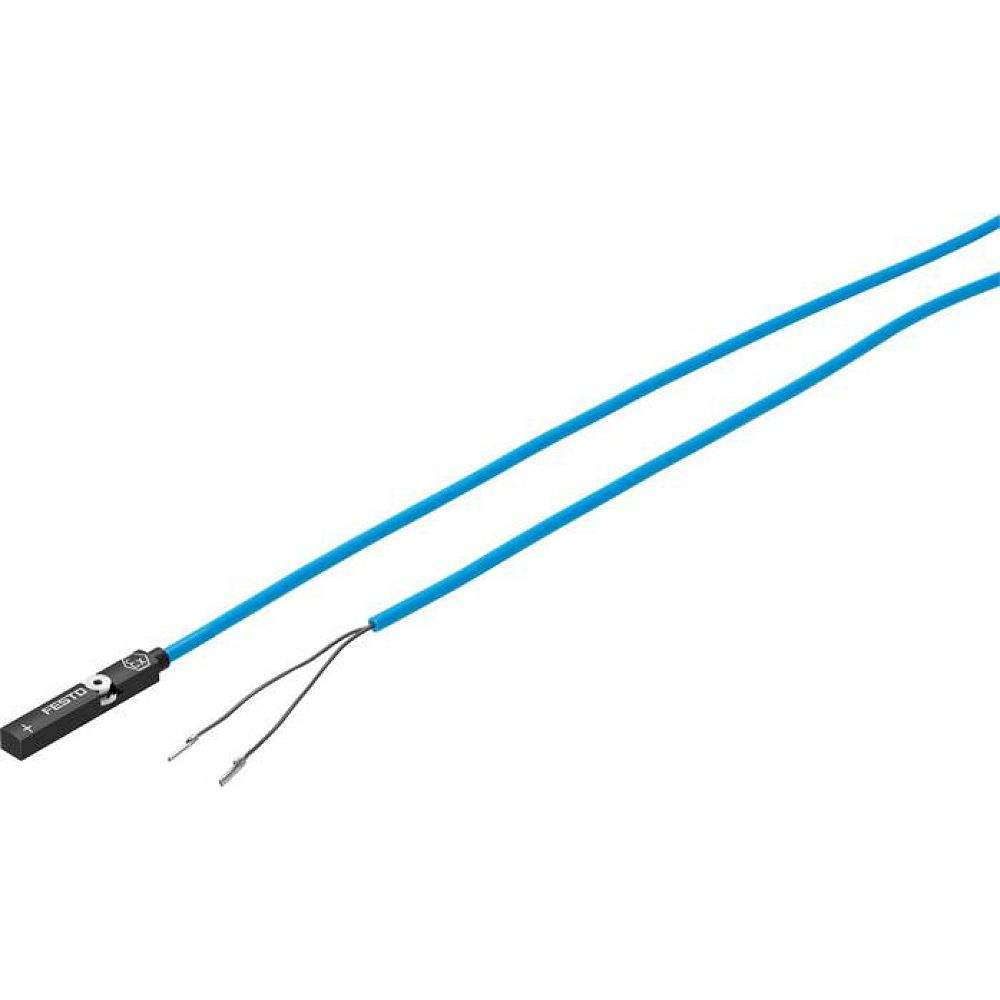

Festo 579071. Proximity sensor SDBT-MS-20NL-ZN-E-5-LE-EX6
€45.24
Excl. 19% VAT ,
excl. Shipping Cost

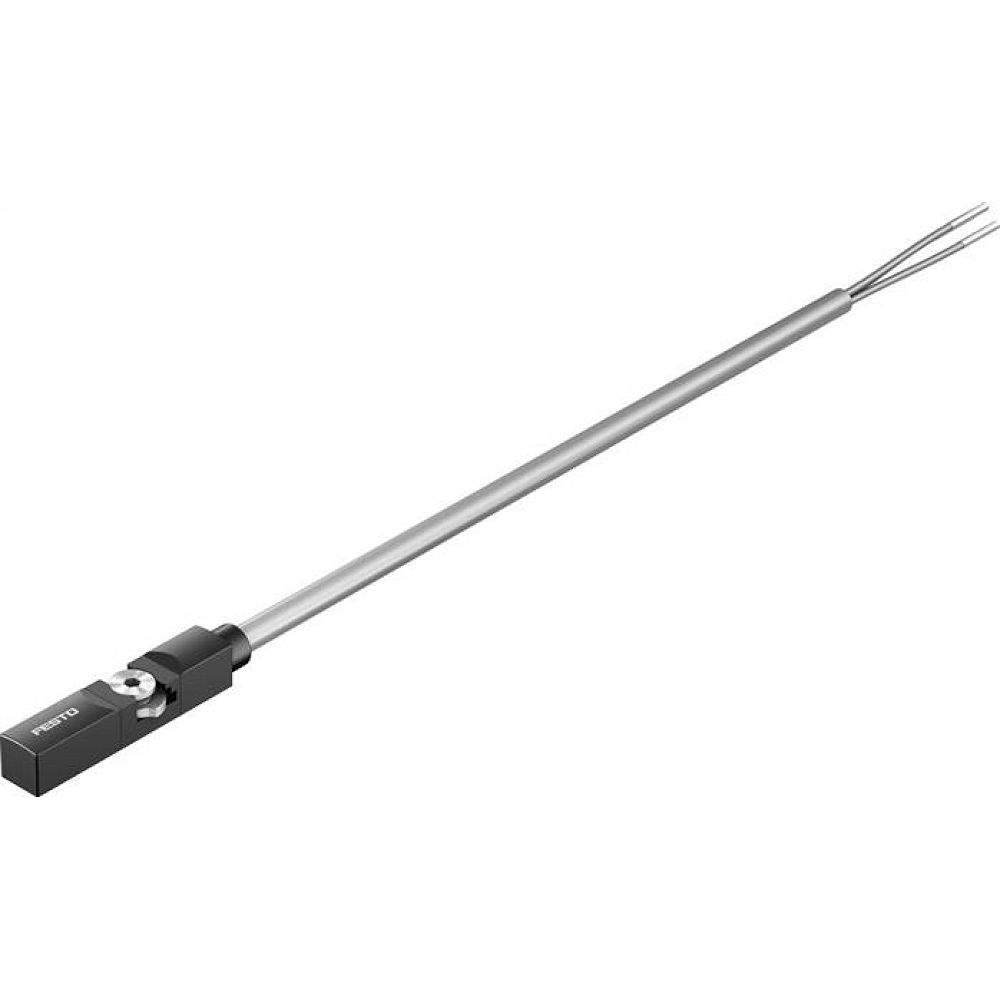

Festo 574381. Proximity sensor CRSMT-8M-PS-24V-K-10,0-OE-EX2
