Festo 551366. Proximity sensor SME-10M-DS-24V-E-2,5-Q-OE
€30.94
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-551366
Manufacturer Nr.
SME-10M-DS-24V-E-2,5-Q-OE
Proximity sensor
Frequently Bought Together
-
This Item:
€30.94Excl. 19% VAT , excl. Shipping Cost
-
Festo SMT-8-SL-PS-LED-24-B (562019) Proximity Sensor
€54.34Excl. 19% VAT , excl. Shipping Cost
-

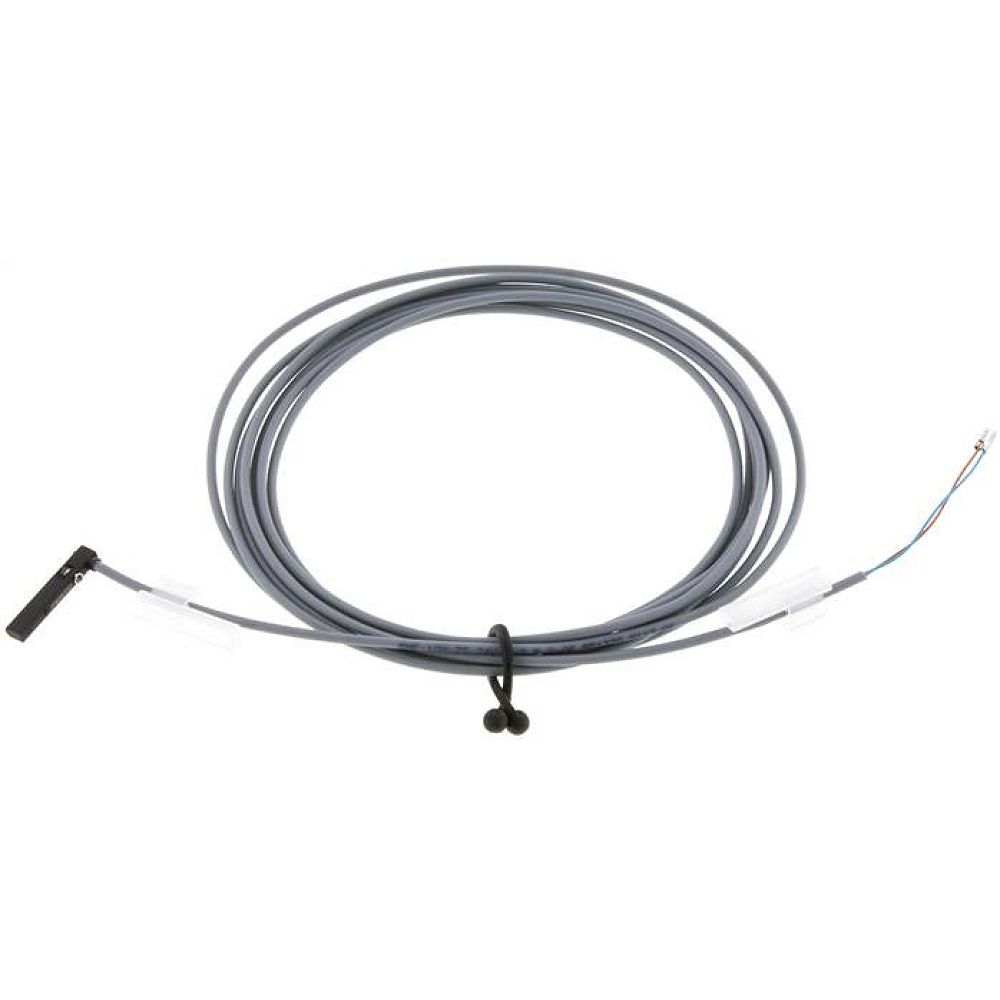

Festo 551370. Proximity sensor SME-10M-ZS-24V-E-2,5-Q-OE
€30.94Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | For C-slot |
| Conforms to standard | EN 60947-5-2 |
| Symbol | 00991620 |
| Approval | RCM trademark |
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive |
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Special characteristics | Oil resistant |
| Note on materials | RoHS-compliant Free of halogen |
| Instructions on use | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position |
| Measuring principle | Magnetic reed |
| Ambient temperature | -40 °C ... 70 °C |
| Repetition accuracy | 0.2 mm |
| Switching output | Contacting, bipolar |
| Switching element function | N/O contact |
| Switch-on time | 1.2 ms |
| Switch-off time | 1 ms |
| Max. switching frequency | 50 Hz |
| Max. output current | 300 mA |
| Max. output current using mounting kits | 50 mA |
| Max. switching capacity AC | 9 VA |
| Max. switching capacity DC | 9 W |
| Max. switching capacity DC using mounting kits | 1.5 W |
| Max. switching capacity AC using mounting kits | 1.5 VA |
| Voltage drop | 1.5 V |
| Short circuit current rating | no |
| Overload protection | Not available |
| Rated operational voltage DC | 24 V |
| Operational voltage range AC | 5 V ... 30 V |
| Operational voltage range DC | 5 V ... 30 V |
| Reverse polarity protection | no |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, connector system | Open end |
| Electrical connection 1, number of connections/cores | 3 |
| Connection outlet orientation | Lateral |
| Test conditions cable | Bending strength: to Festo standard Test conditions on request Torsional resistance: > 300,000 cycles, ± 270°/0.1 m Energy chain: > 5 million cycles, bending radius 28 mm |
| Cable length | 2.5 m |
| Cable characteristic | Suitable for energy chains/robot applications |
| Material cable sheath | TPE-U(PUR) |
| Type of mounting | Screw-clamped Insertable in the slot from above |
| Max. tightening torque | 0.4 Nm |
| Mounting position | optional |
| Product weight | 16.8 g |
| Material housing | PA-reinforced High-alloy stainless steel |
| Switching status indication | Yellow LED |
| Ambient temperature with moving cable | -20 °C ... 70 °C |
| Degree of protection | IP65 IP68 |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer Nr. | SME-10M-DS-24V-E-2,5-Q-OE |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568094683 |
| Weight | 0.024000 |
| HS-Code | 85365019 |
| Article authenticity | Original product |
| Condition of article | New |
