Aventics Pressure sensor, Series PE5 R412010762 PE5-PN-DA04-V10-010-M12
€155.91
Excl. 19% VAT ,
excl. Shipping Cost
Article
AVE-R412010762
Manufacturer Nr.
R412010762
PE5-PN-DA04-V10-010-M12
Frequently Bought Together
-
This Item:
€155.91Excl. 19% VAT , excl. Shipping Cost
-

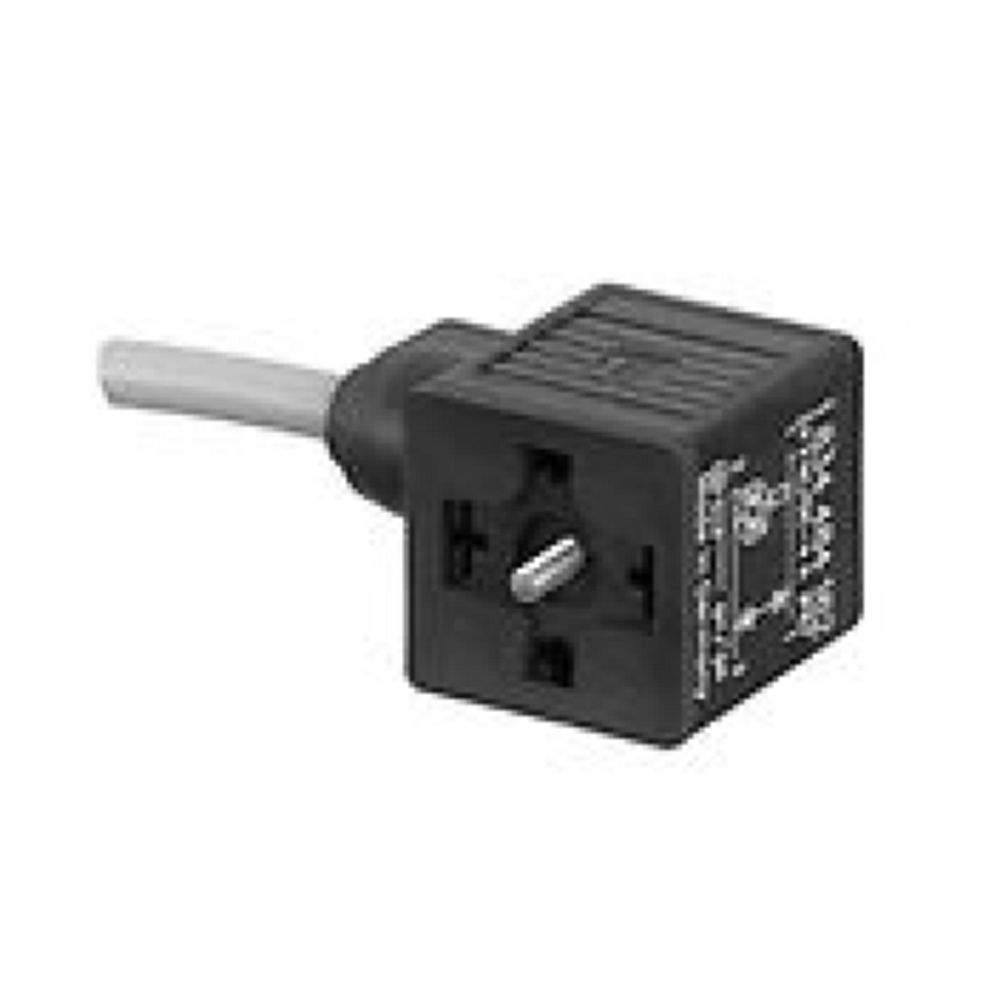

Aventics Valve plug connector, series CON-VP 1834484163 CON-VP-F_A-2+E-YE-Z-5000-PVC-OW-3
€28.74Excl. 19% VAT , excl. Shipping Cost
-
Aventics Sensor mounting, Series CB1 1827020084 CB1-PRB-032-125-SN1-SN2
€8.23Excl. 19% VAT , excl. Shipping Cost
Total price
| Operating voltage DC, max. | 30 V DC |
| Operating pressure min | -1 bar |
| Operating pressure max | 1 bar |
| Certificates | Conforms with REACH, Free of substances that impair surface wetting in the coating process, CE declaration of conformity, RoHS, cULus |
| Compressed air connection type | push-in fitting |
| Compressed air connection | Ø 4 |
| Min. ambient temperature | 0 °C |
| Max. ambient temperature | 60 °C |
| Min. medium temperature | 0 °C |
| Max. medium temperature | 60 °C |
| Medium | Compressed air (max. 40 μm) |
| Oil content of compressed air max. | 40 mg/m³ |
| Measurement | Relative pressure |
| Display | LCD display, 4 digits, Color setting: green or red |
| Units displayed | bar, kPa, inHg, MPa, psi |
| Switching logic | NO/NC (adjustable) |
| Protection against overpressure | 5 bar |
| Shock resistance max. | 30 g |
| Vibration resistance | 5 g (10 - 150 Hz) |
| Precision (% of full scale value) | ± 2 % including temperature drift, ±1.5% in temperature range of 10 - 30°C |
| Repeatability (% of full scale value) | ± 0,2 % |
| Switching time | < 5 ms |
| Switching point | adjustable 0 ... 100% |
| Resetting point | adjustable 0 ... 100% |
| Hysteresis | adjustable |
- Simplified navigation in accordance with VDMA
- Protection class increased to IP65 and IP67
- Contains zero point offset function
- PNP, NPN, and push-pull are freely selectable
- Option to switch between current and voltage
- UL approval and PWIS-free
- Compliant with CE, RoHS and Reach
| Manufacturer Nr. | R412010762 |
|---|---|
| Manufacturer | Aventics |
| GPSR manufacturer information | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Weight | 0.155000 |
| HS-Code | 85365080 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Aventics Valve plug connector, series CON-VP 1834484101 CON-VP-F_A-2+E-YE-Z-SCREW
€16.59
Excl. 19% VAT ,
excl. Shipping Cost
Aventics Sensor mounting, Series CB1 1827020282 CB1-TRB-032-040-ST6
€12.45
Excl. 19% VAT ,
excl. Shipping Cost
Aventics Pressure sensor, Series PE5 R412010765 PE5-PN-G014-000-060-M12
€155.91
Excl. 19% VAT ,
excl. Shipping Cost
Aventics Series MS01 R412011178 MS01-04-3/2CC-SR-G014-GD-AL
€2,356.51
Excl. 19% VAT ,
excl. Shipping Cost

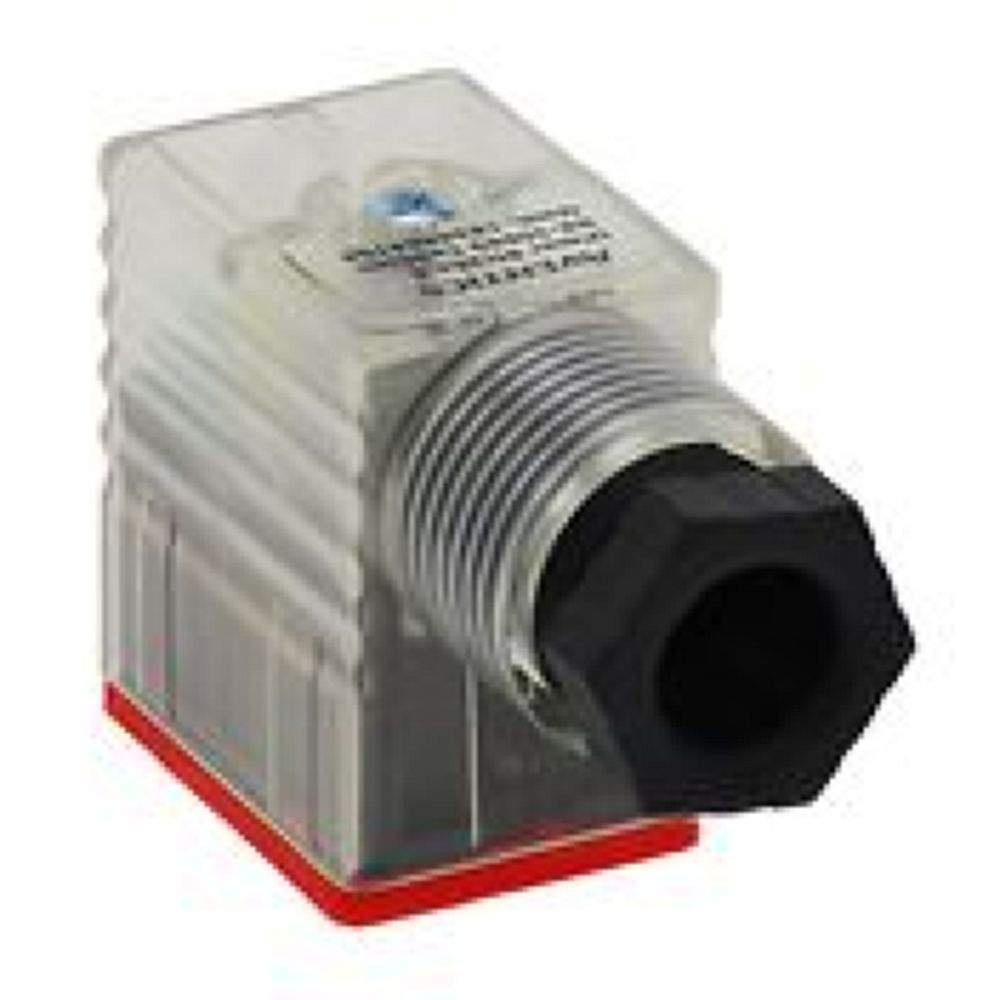

Aventics Valve plug connector, series CON-VP 1834484104 CON-VP-F_B-2+E-YE-Z-SCREW
