Aventics Series MS01 R412011178 MS01-04-3/2CC-SR-G014-GD-AL
€2,356.51
Excl. 19% VAT ,
excl. Shipping Cost
Article
AVE-R412011178
Manufacturer Nr.
R412011178
MS01-04-3/2CC-SR-G014-GD-AL
Frequently Bought Together
-
This Item:
€2,356.51Excl. 19% VAT , excl. Shipping Cost
-
Aventics Sensor mounting, Series CB1 3220643562 322-CB1-080-125-RM6
€16.73Excl. 19% VAT , excl. Shipping Cost
-
Aventics Pressure sensor, Series PE5 R412010768 PE5-A1-DA04-V10-010-M12
€171.86Excl. 19% VAT , excl. Shipping Cost
Total price
| Version | 4x |
| Version | MS01-AL test block, variant I, with 2 x 3/2-directional valve |
| Standards | ISO 15407-1 |
| Standards | 26 mm |
| Length | 174.5 mm |
| Grid dimension | 27.1 mm |
| Cleaning pressure option | cleaning pressure can be connected |
| Compressed air connection standard | according to ISO 228-1 |
| Compressed air connection input | G 3/8 |
| Compressed air connection, exhaust | G 1/8 |
| Compressed air connection output | G 1/4 |
| Compressed air connection pilot air exhaust | G 1/8 |
| Working pressure min. | 4 bar |
| Working pressure max | 10 bar |
| Min. ambient temperature | 0 °C |
| Max. ambient temperature | 50 °C |
| Min. medium temperature | 0 °C |
| Max. medium temperature | 50 °C |
| Medium | Compressed air |
| Max. particle size | 5 µm |
| Oil content of compressed air min. | 0 mg/m³ |
| Oil content of compressed air max. | 0.1 mg/m³ |
| Protection class | IP65 |
| Duty cycle | 100 % |
| DC operating voltage | 24 V |
- Test block MS01
- Operating pressure 4 bar ... 10 bar
| Manufacturer Nr. | R412011178 |
|---|---|
| Manufacturer | Aventics |
| GPSR manufacturer information | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Weight | 3.700000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Aventics Round plug connector, Series CON-RD R402003771 CON-RD-MS-M12B-5-SCREW
€115.52
Excl. 19% VAT ,
excl. Shipping Cost
Aventics Valve plug connector, series CON-VP 1834484059 CON-VP-F_A-3+E-SCREW
€6.78
Excl. 19% VAT ,
excl. Shipping Cost

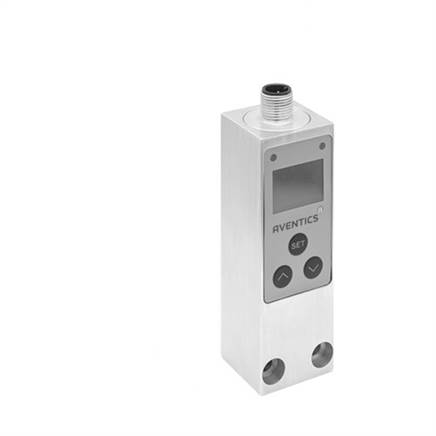

Aventics R412010849 (PE2-P1-F001-V10-010-M012) Drucksensor, Serie PE2
€301.51
Excl. 19% VAT ,
excl. Shipping Cost
Aventics Serie MS01 R412011208 MS01-07-3/2CC-SR-D6X1-PA-GF
€3,513.70
Excl. 19% VAT ,
excl. Shipping Cost

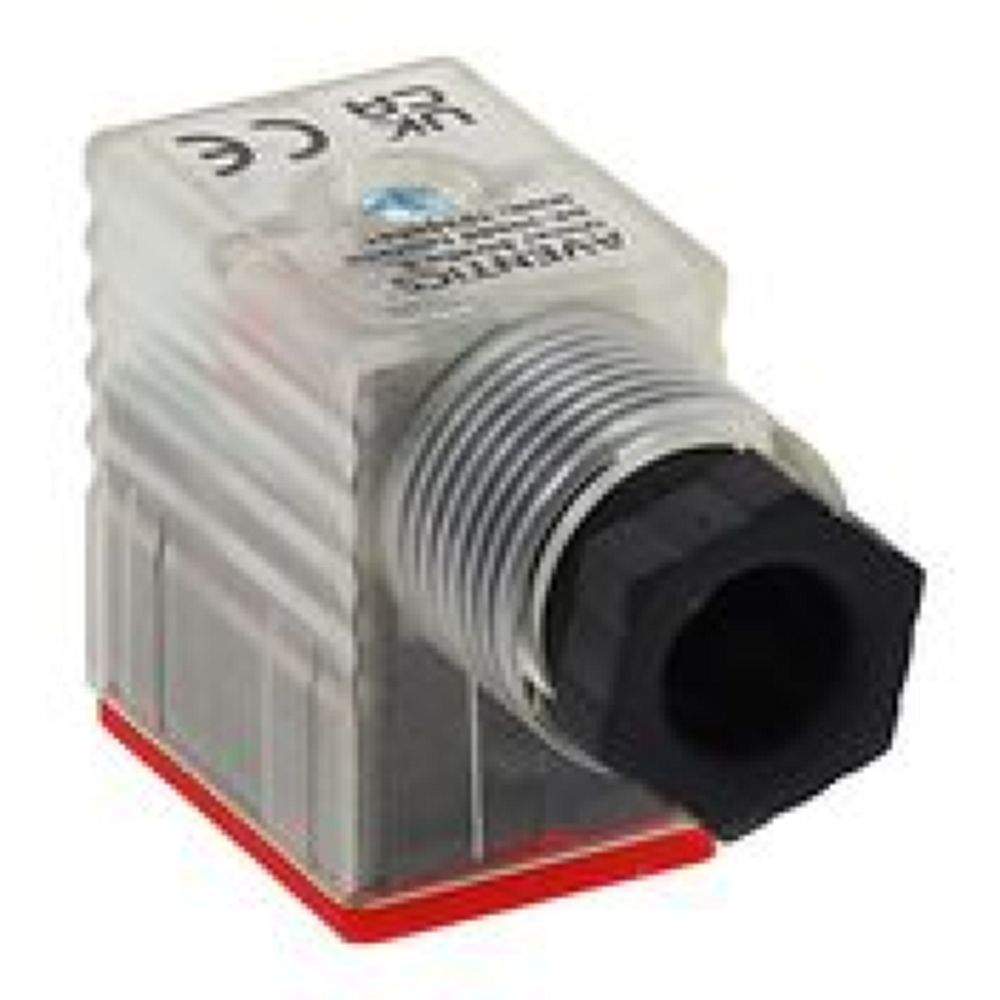

Aventics Valve plug connector, series CON-VP 1834484105 CON-VP-F_B-2+E-RD-V-SCREW
