SV-14. Quick exhaust valve G 1/4", Standard
€8.17
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SV-14
Manufacturer Nr.
SV 14
Quick exhaust valve G 1/4", Standard
Frequently Bought Together
-
This Item:
€8.17Excl. 19% VAT , excl. Shipping Cost
-

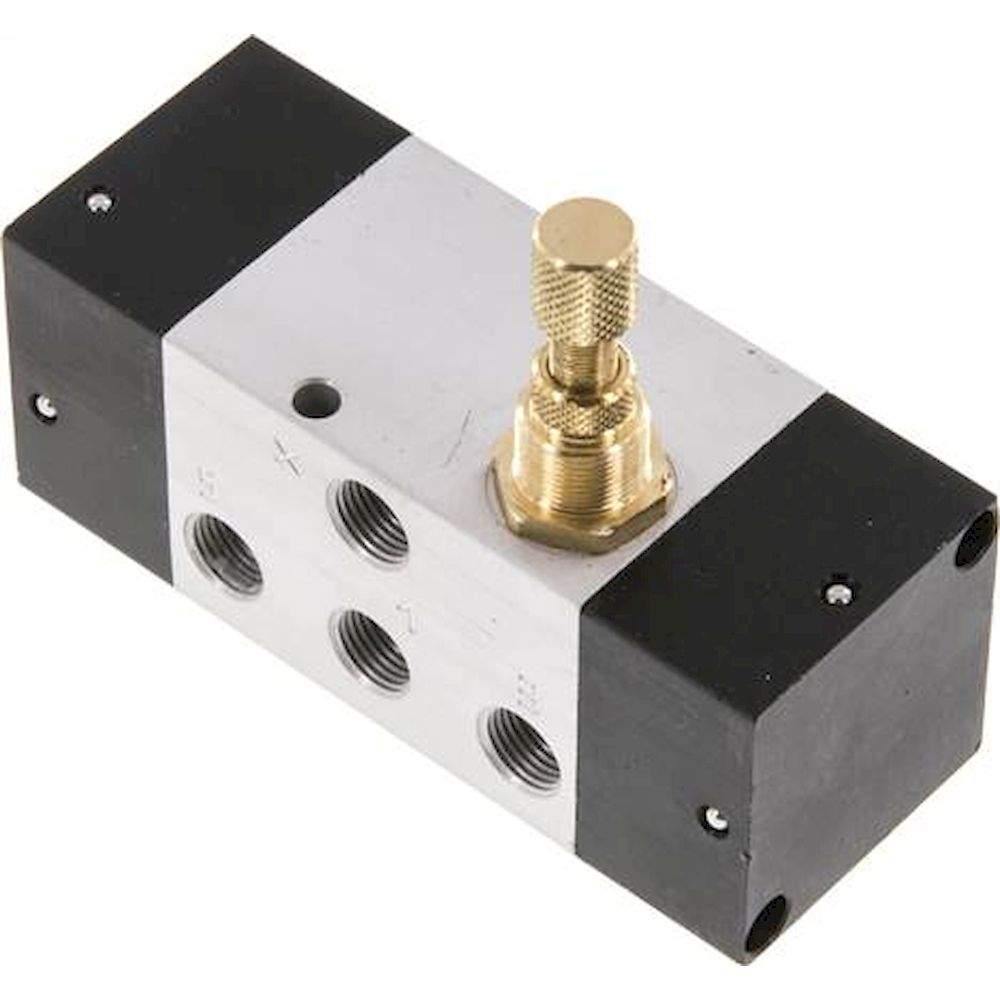

VZ-18-513-B. 5/2-way time valve, 1 to 10 seconds, Delayed backwash filter
€72.93Excl. 19% VAT , excl. Shipping Cost
-
Airtec SU-18-310. Signal interrupter G 1/8", Series Precision
€57.82Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Precision model: Body: Aluminium anodized, Seals: NBR, standard versions: Body: Nickel-plated brass, seals: NBR/polyurethane
Media:
oiled and unoiled filtered compressed air
Function:
These valves are used to vent the cylinders quickly and enhance the cylinder speed. For this, they are screwed directly on the cylinder using the connection 2. Breathing: The air flowing through the control valve can flow continuously from connection 1 to the connection 2. Venting: When the control valve switches over to venting, 1 becomes depressurized. The valve switches to flow from 2 to 3 and the air from the cylinder can be freely vented into the open.
Warning:
Only for use in cylinders where there is sufficient end position damping (adjustable cushion, shock absorber). When using a silencer in connection 3, this must be large enough to avoid dynamic pressure.
Precision model: Body: Aluminium anodized, Seals: NBR, standard versions: Body: Nickel-plated brass, seals: NBR/polyurethane
Media:
oiled and unoiled filtered compressed air
Function:
These valves are used to vent the cylinders quickly and enhance the cylinder speed. For this, they are screwed directly on the cylinder using the connection 2. Breathing: The air flowing through the control valve can flow continuously from connection 1 to the connection 2. Venting: When the control valve switches over to venting, 1 becomes depressurized. The valve switches to flow from 2 to 3 and the air from the cylinder can be freely vented into the open.
Warning:
Only for use in cylinders where there is sufficient end position damping (adjustable cushion, shock absorber). When using a silencer in connection 3, this must be large enough to avoid dynamic pressure.
| Manufacturer Nr. | SV 14 |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571658816 |
| Weight | 0.150000 |
| HS-Code | 84818099 |
| Article authenticity | Original product |
| Condition of article | New |
