SV-1438-MEMBRANE. Quick exhaust valve , Spare diaphragm (standard)
€1.65
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SV-1438-MEMBRANE
Manufacturer Nr.
SV 1438 MEMBRANE
Quick exhaust valve , Spare diaphragm (standard)
Frequently Bought Together
-
This Item:
€1.65Excl. 19% VAT , excl. Shipping Cost
-

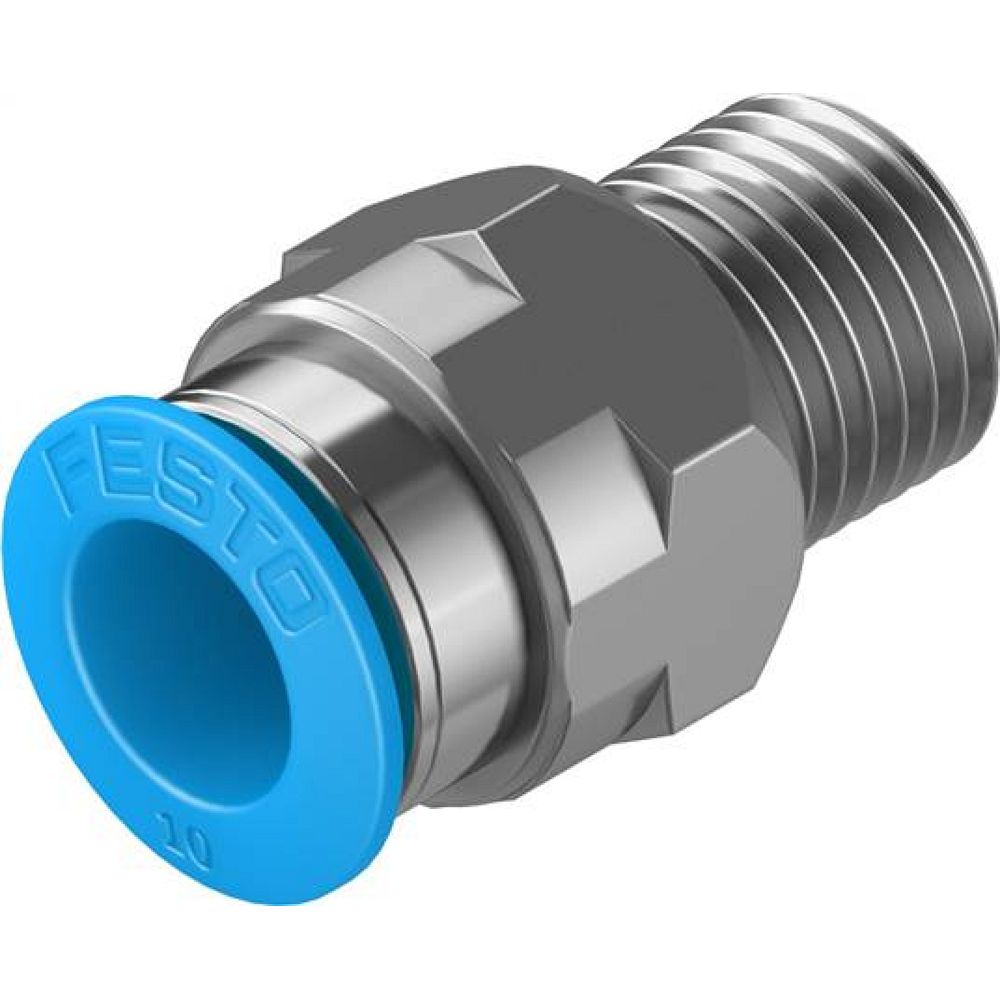

Festo 130679. Push-in fitting QS-1/4-10-50
€2.12Excl. 19% VAT , excl. Shipping Cost
-

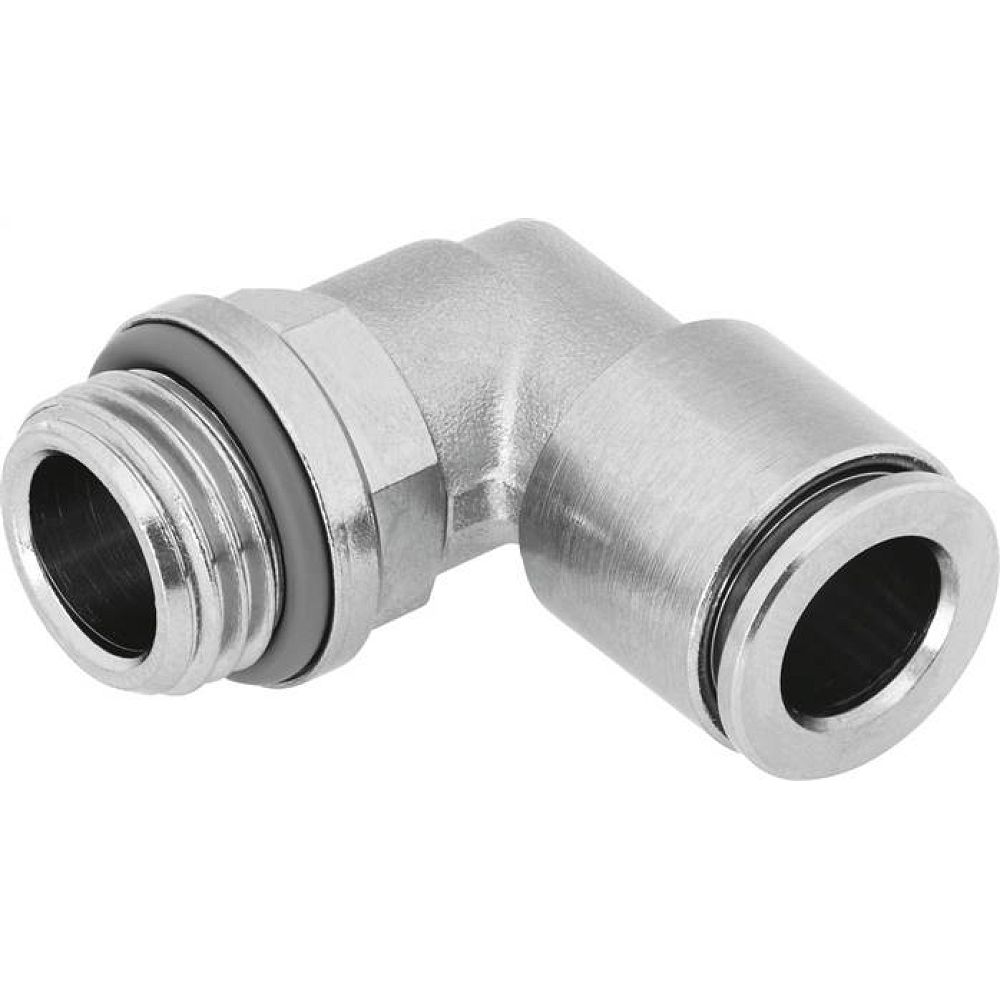

Festo 578285. Push-in L-fitting NPQH-L-G14-Q10-P10
€4.28Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Precision model: Body: Aluminium anodized, Seals: NBR, standard versions: Body: Nickel-plated brass, seals: NBR/polyurethane
Media:
oiled and unoiled filtered compressed air
Function:
These valves are used to vent the cylinders quickly and enhance the cylinder speed. For this, they are screwed directly on the cylinder using the connection 2. Breathing: The air flowing through the control valve can flow continuously from connection 1 to the connection 2. Venting: When the control valve switches over to venting, 1 becomes depressurized. The valve switches to flow from 2 to 3 and the air from the cylinder can be freely vented into the open.
Warning:
Only for use in cylinders where there is sufficient end position damping (adjustable cushion, shock absorber). When using a silencer in connection 3, this must be large enough to avoid dynamic pressure.
Precision model: Body: Aluminium anodized, Seals: NBR, standard versions: Body: Nickel-plated brass, seals: NBR/polyurethane
Media:
oiled and unoiled filtered compressed air
Function:
These valves are used to vent the cylinders quickly and enhance the cylinder speed. For this, they are screwed directly on the cylinder using the connection 2. Breathing: The air flowing through the control valve can flow continuously from connection 1 to the connection 2. Venting: When the control valve switches over to venting, 1 becomes depressurized. The valve switches to flow from 2 to 3 and the air from the cylinder can be freely vented into the open.
Warning:
Only for use in cylinders where there is sufficient end position damping (adjustable cushion, shock absorber). When using a silencer in connection 3, this must be large enough to avoid dynamic pressure.
| Manufacturer Nr. | SV 1438 MEMBRANE |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571658854 |
| Weight | 0.001800 |
| HS-Code | 84799070 |
| Article authenticity | Original product |
| Condition of article | New |
