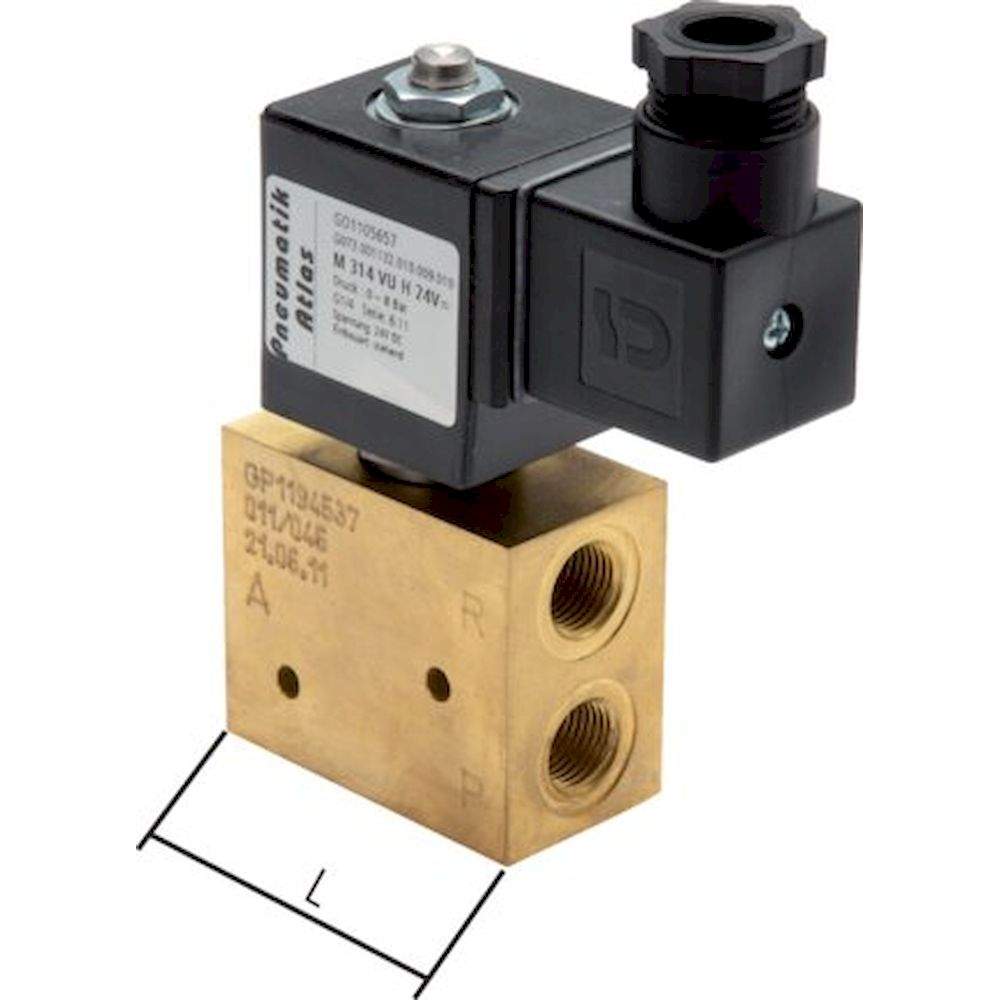

3/2-way vacuum valve, G 3/4", -0,9 to 1bar, 24 V DC
€2,513.16
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-067766
Manufacturer Nr.
M 334 VU H 24V=
3/2-way vacuum valve, G 3/4", -0,9 to 1bar, 24 V DC
Frequently Bought Together
-
This Item:
€2,513.16Excl. 19% VAT , excl. Shipping Cost
-

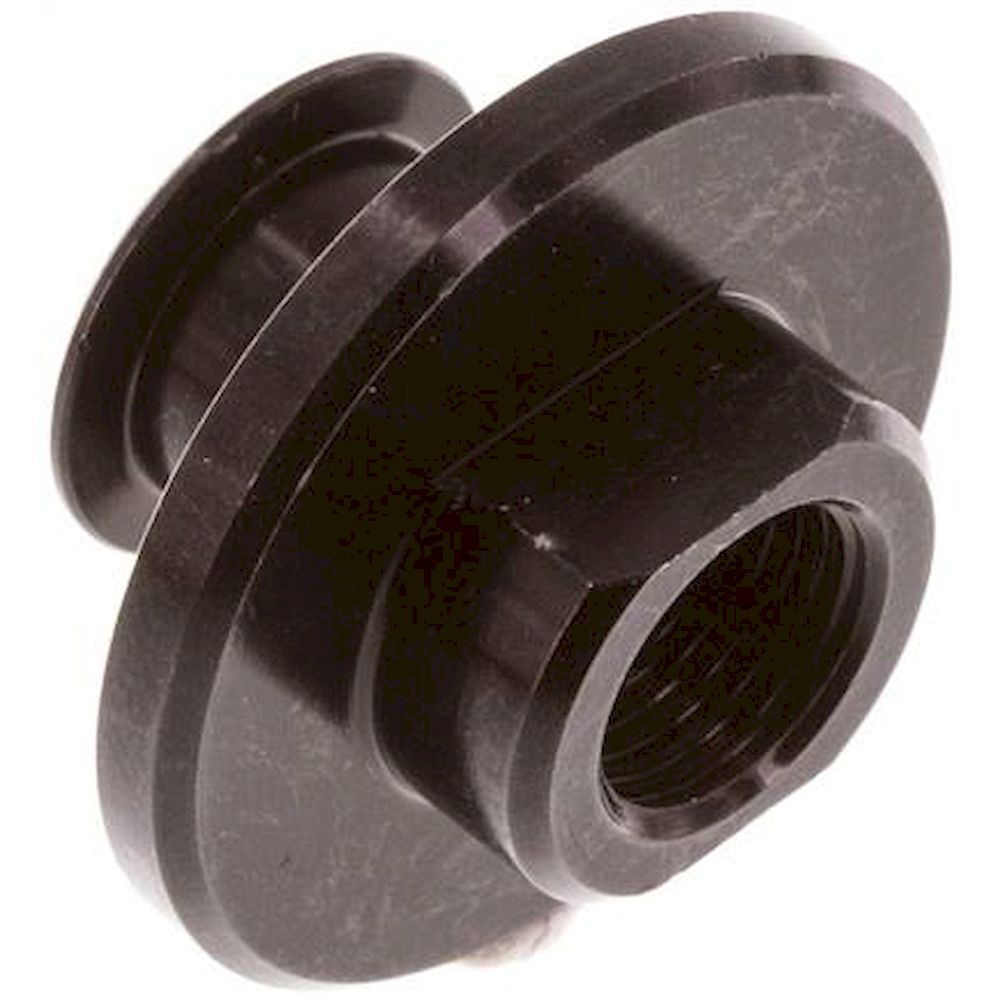

Suction cup fixations, Type E, G 1/8" (IG)
€6.31Excl. 19% VAT , excl. Shipping Cost
-
Bellows suction pad, 1,5-way, P-series, Ø 11x4,5mm, Silicone (50A), red
€3.51Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body: brass, internal parts: 1.4104, seal: FKM
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (type standard: any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Pressure input:
P (type Universal: possible at every connection)
Vacuum inlet:
P (type Universal: possible at every connection)
Note:
In a standard type, the breathing takes place via the anchor (M 5 female thread).
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body: brass, internal parts: 1.4104, seal: FKM
Temperature range:
-10 to +80 °C, environment: max. +35 °C
Media:
neutral, gaseous and liquid media, vacuum (max. -0.9 bar)
Installation position:
with upright magnets (type standard: any)
Control voltages:
24 V DC, 230 V AC
Voltage tolerance:
± 10 %
Protection class:
IP 65 (plug size 3)
Pressure input:
P (type Universal: possible at every connection)
Vacuum inlet:
P (type Universal: possible at every connection)
Note:
In a standard type, the breathing takes place via the anchor (M 5 female thread).
Information:
These valves are always supplied with a solenoid coil and a connector plug.
| Version | universal |
| Control voltage | 24 V DC |
| function | normally closed / open (NC / NO) |
| Thread (2x) | G 3/4" |
| Operating pressure [bar] | -0.9 to 1 |
| DN [mm] | 21 |
| Suction performance [m³/h] | 130 |
| Suction performance [l/min] | 2167 |
| Kv value* [l/min] | 88,3 |
| L [mm] | 96 |
| Power consumption (DC) [W] | 30 |
| Structural shape solenoid coil | F |
| Spare solenoid coil | MAG F 24V= |
| Manufacturer Nr. | M 334 VU H 24V= |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571478537 |
| Weight | 6.000000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

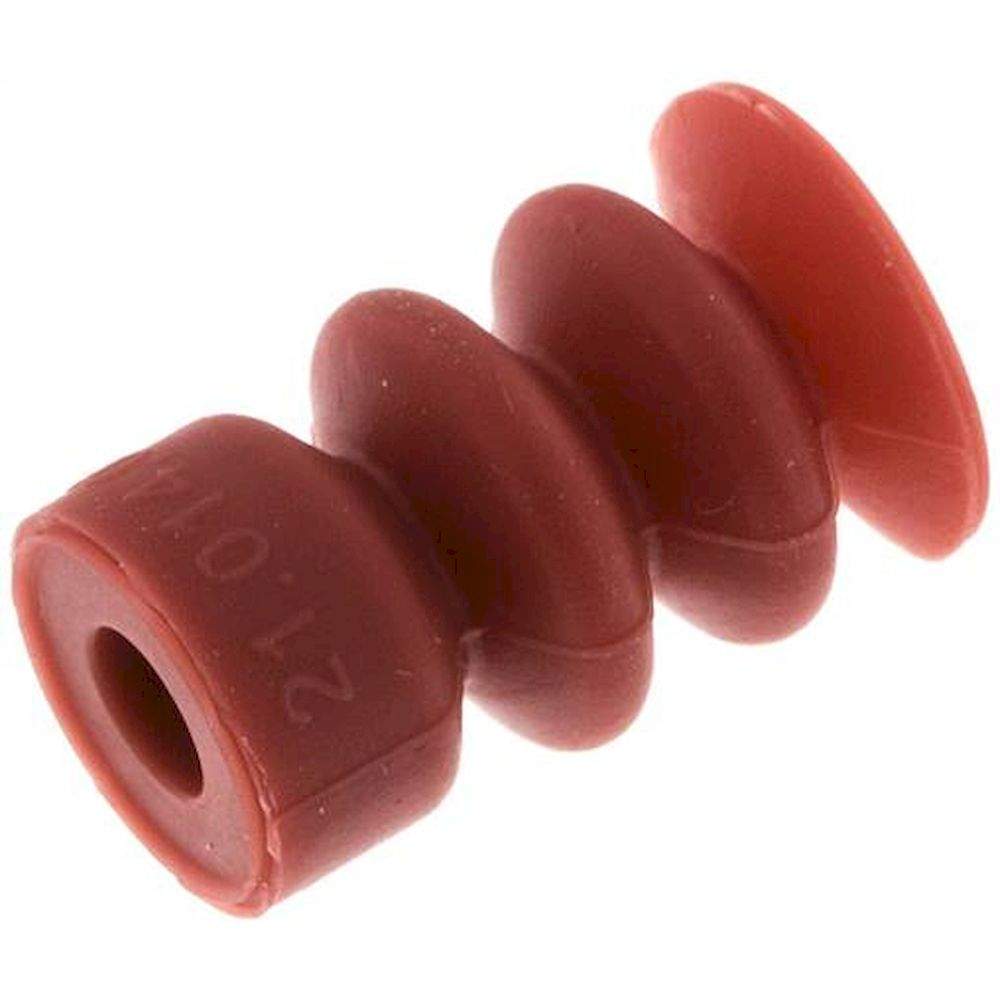

Bellows suction pad, 2,5-way, Ø 14x10mm, Silicone (65A), red
€6.35
Excl. 19% VAT ,
excl. Shipping Cost

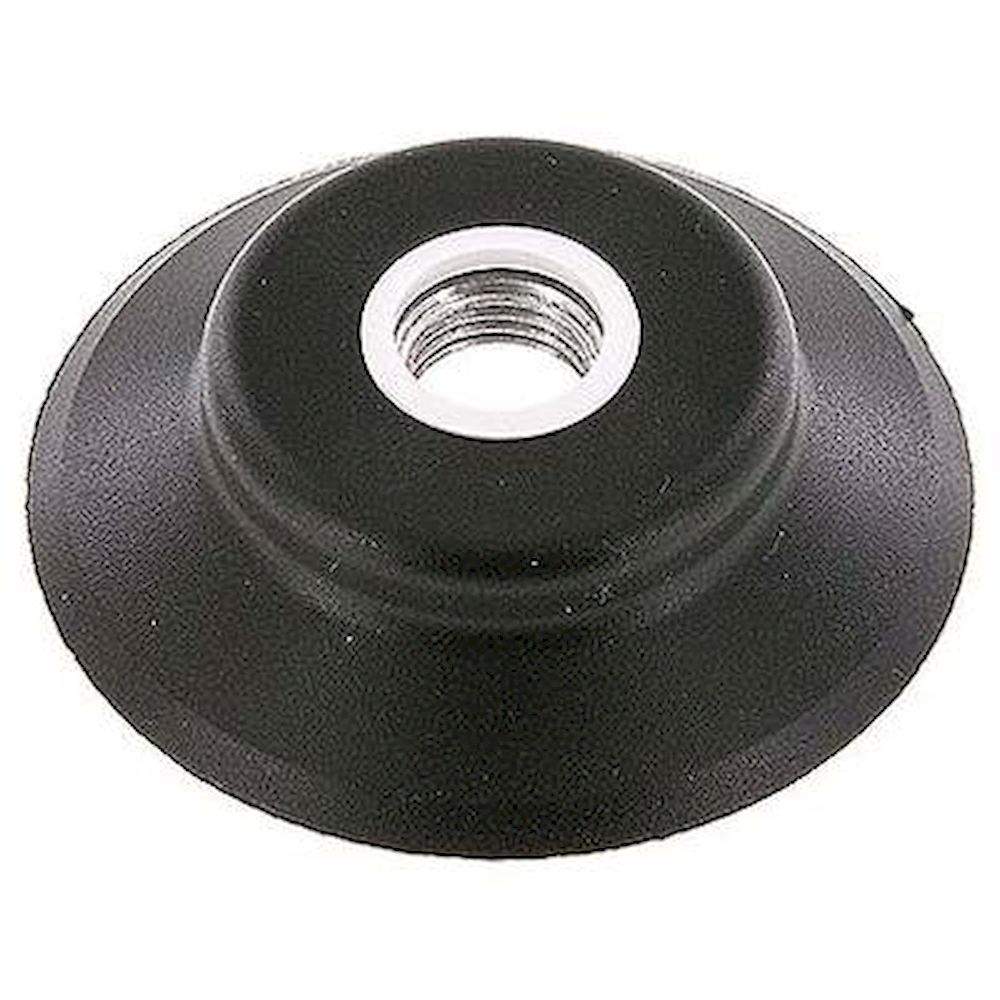

Flat suction cups (robust lips), Ø 62x5mm, G 1/4", NBR (55A), black
€12.83
Excl. 19% VAT ,
excl. Shipping Cost

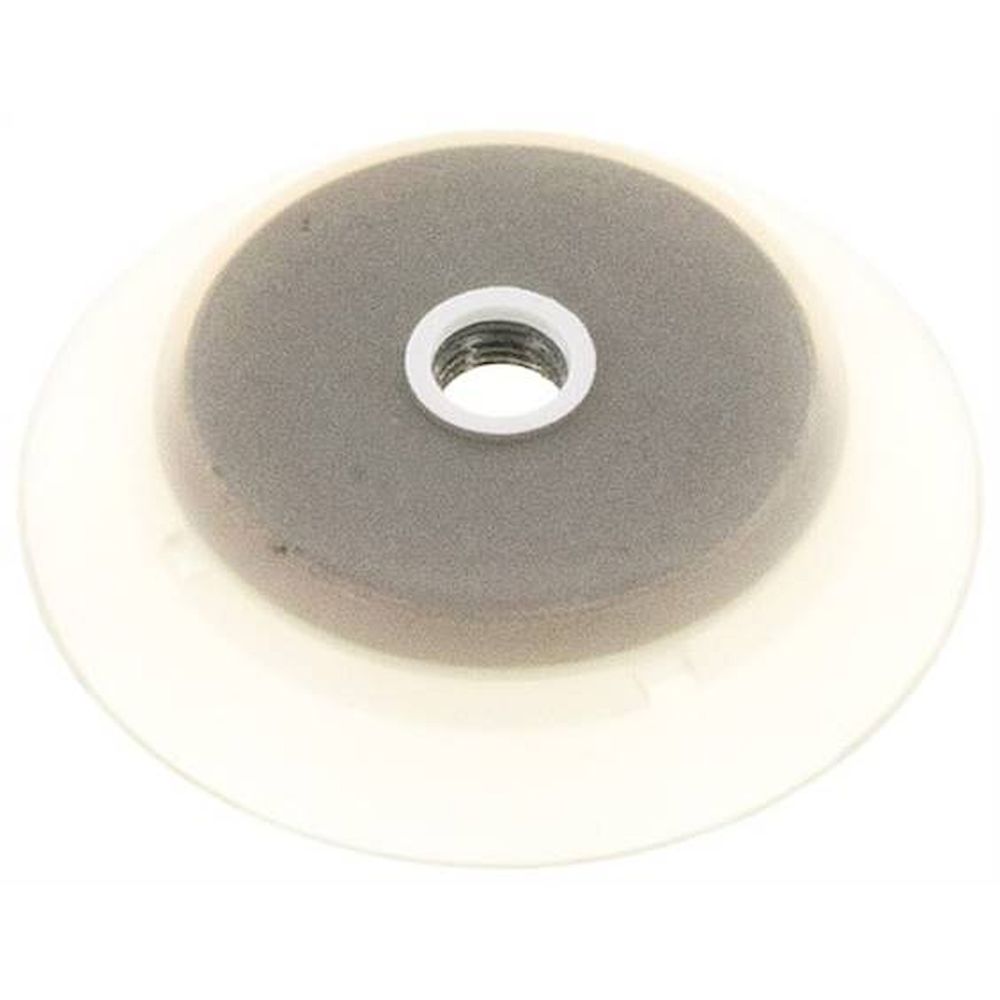

Flat suction cups (robust lips), Ø 95x6mm, G 1/4", Silicone (50A), transparent
€31.62
Excl. 19% VAT ,
excl. Shipping Cost

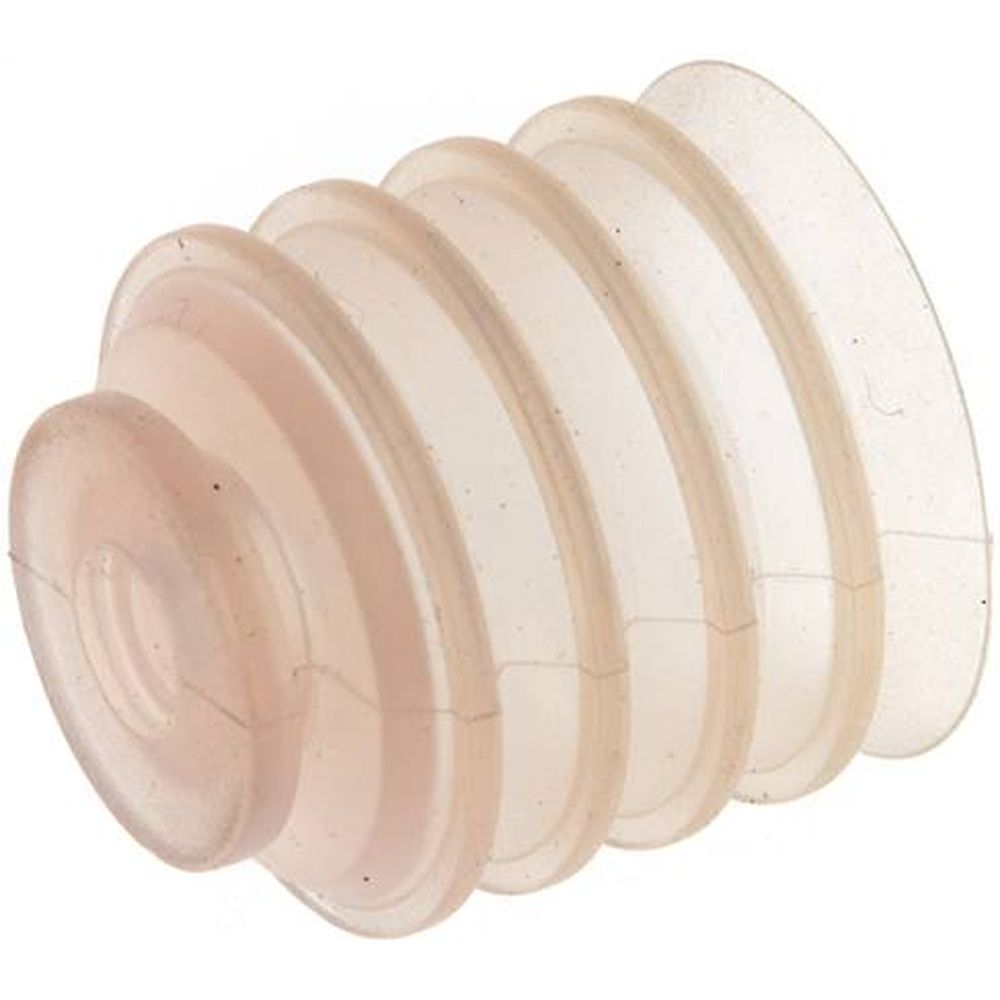

Bellows suction pad, 4,5-way, P-series, Ø 31x21mm, Silicone (50A), transparent
€22.07
Excl. 19% VAT ,
excl. Shipping Cost

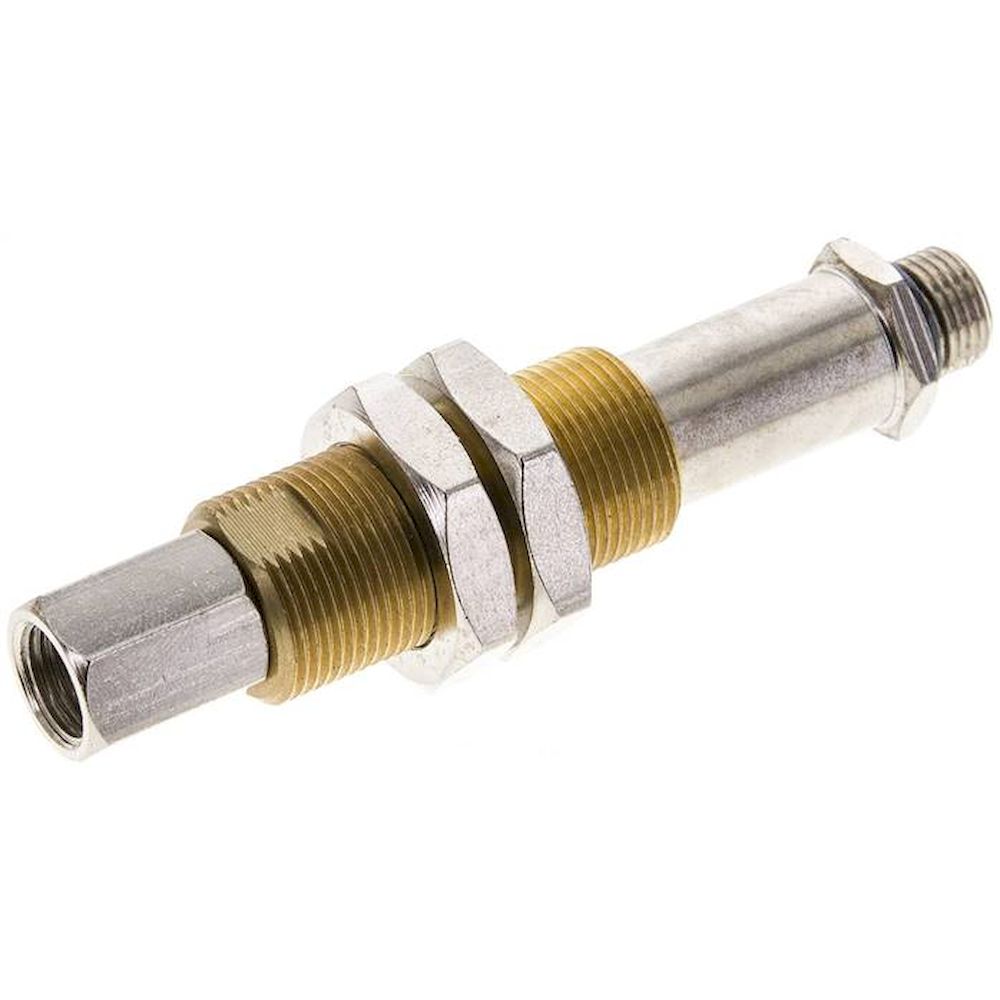

Spring plunger G 1/8" (AG)xG 1/8" (Female thread), stroke 20mm, Standard
