Vacuum regulator without external leakage G 3/8"
€488.03
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-067746
Manufacturer Nr.
R 38 VU
Vacuum regulator without external leakage G 3/8"
Frequently Bought Together
-
This Item:
€488.03Excl. 19% VAT , excl. Shipping Cost
-
Flat suction cups, support rib, P,series- Ø 42x2mm, CR (50A), black
€7.84Excl. 19% VAT , excl. Shipping Cost
-

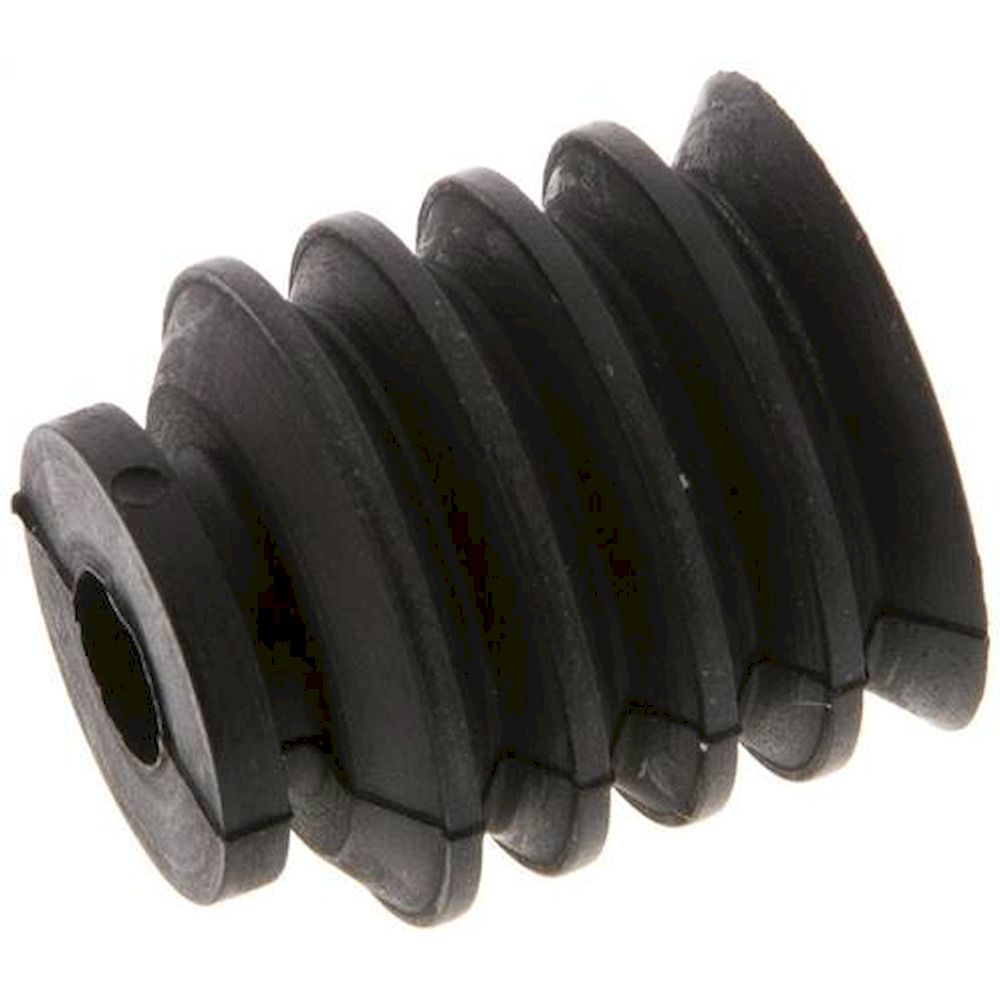

Bellows suction pad, 4,5-way, P-series, Ø 20x16mm, CR (50A), black
€8.13Excl. 19% VAT , excl. Shipping Cost
Total price
Application:
A vacuum without external leakage can be accurately regulated with these vacuum regulators. They are used in vacuum systems where individual consumer units need to be supplied with different levels of vacuum.
Adjustment:
The configuration is carried out using a knurled screw or via a pneumatic signal.
Materials:
Body: Anodized aluminium, seals: NBR
Temperature range:
-10 to +80 °C
Pressure gauge connection:
G 1/4" (controller G 1/4" and G 3/8": G 1/8")
Control connection (pneumatic setting):
G 1/8" (controller G 1 1/2": G 1/4")
A vacuum without external leakage can be accurately regulated with these vacuum regulators. They are used in vacuum systems where individual consumer units need to be supplied with different levels of vacuum.
Adjustment:
The configuration is carried out using a knurled screw or via a pneumatic signal.
Materials:
Body: Anodized aluminium, seals: NBR
Temperature range:
-10 to +80 °C
Pressure gauge connection:
G 1/4" (controller G 1/4" and G 3/8": G 1/8")
Control connection (pneumatic setting):
G 1/8" (controller G 1 1/2": G 1/4")
| Version | Standard controller |
| Setting | Manually |
| Thread | G 3/8" |
| Suction performance [m³/h] | 10 |
| Suction performance [l/min] | 167 |
| Pressure gauge connection | G 1/8" |
| Pressure regulation range [bar] | -1 to -0,2 |
| Manufacturer Nr. | R 38 VU |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571569006 |
| Weight | 6.000000 |
| HS-Code | 84141089 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

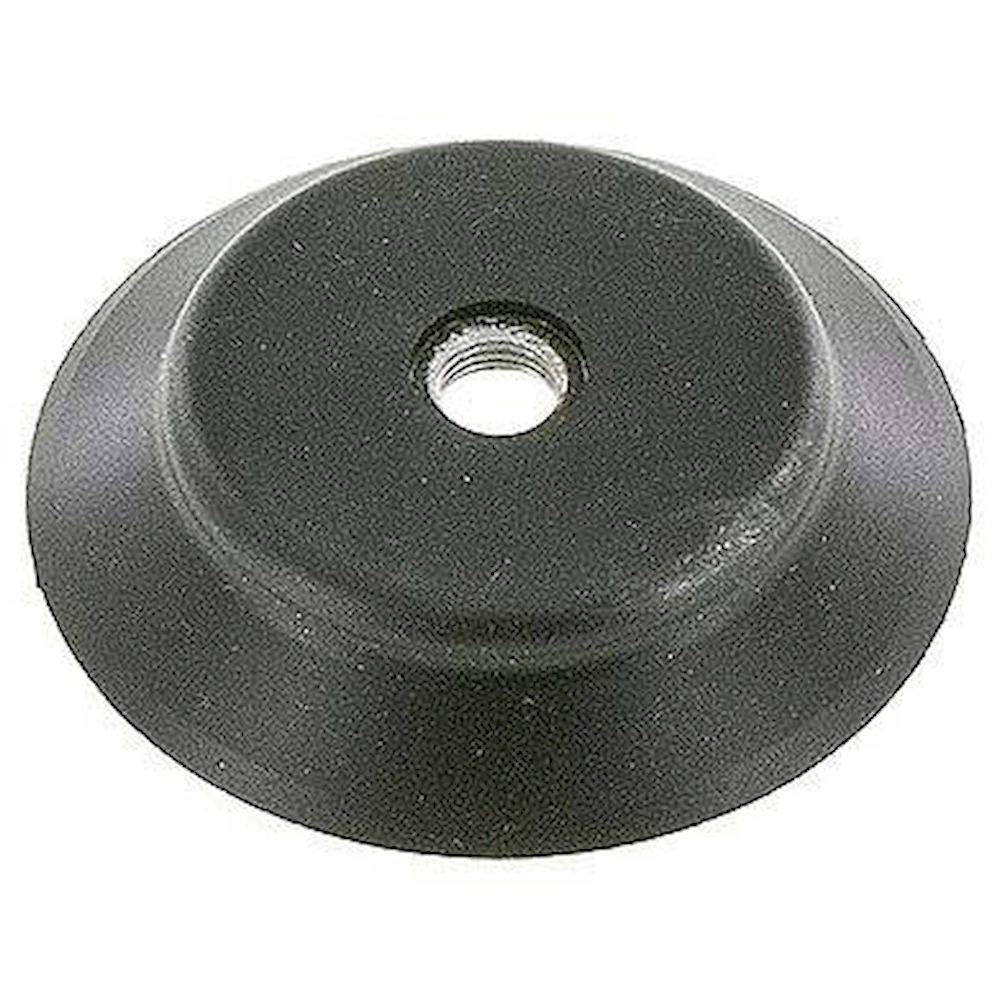

Flat suction cups (robust lips), Ø 95x6mm, G 1/4", NBR (55A), black
