Enerpac BRD166, 142 kN Capacity, 159 mm Stroke, Double-Acting, General Purpose Hydraulic Cylinder
€1,823.51
Excl. 19% VAT ,
excl. Shipping Cost
Article
ENP-BRD166
Manufacturer Nr.
BRD166
BRD166, 142 kN Capacity, 159 mm Stroke, Double-Acting, General Purpose Hydraulic Cylinder
Frequently Bought Together
-
This Item:
€1,823.51Excl. 19% VAT , excl. Shipping Cost
-

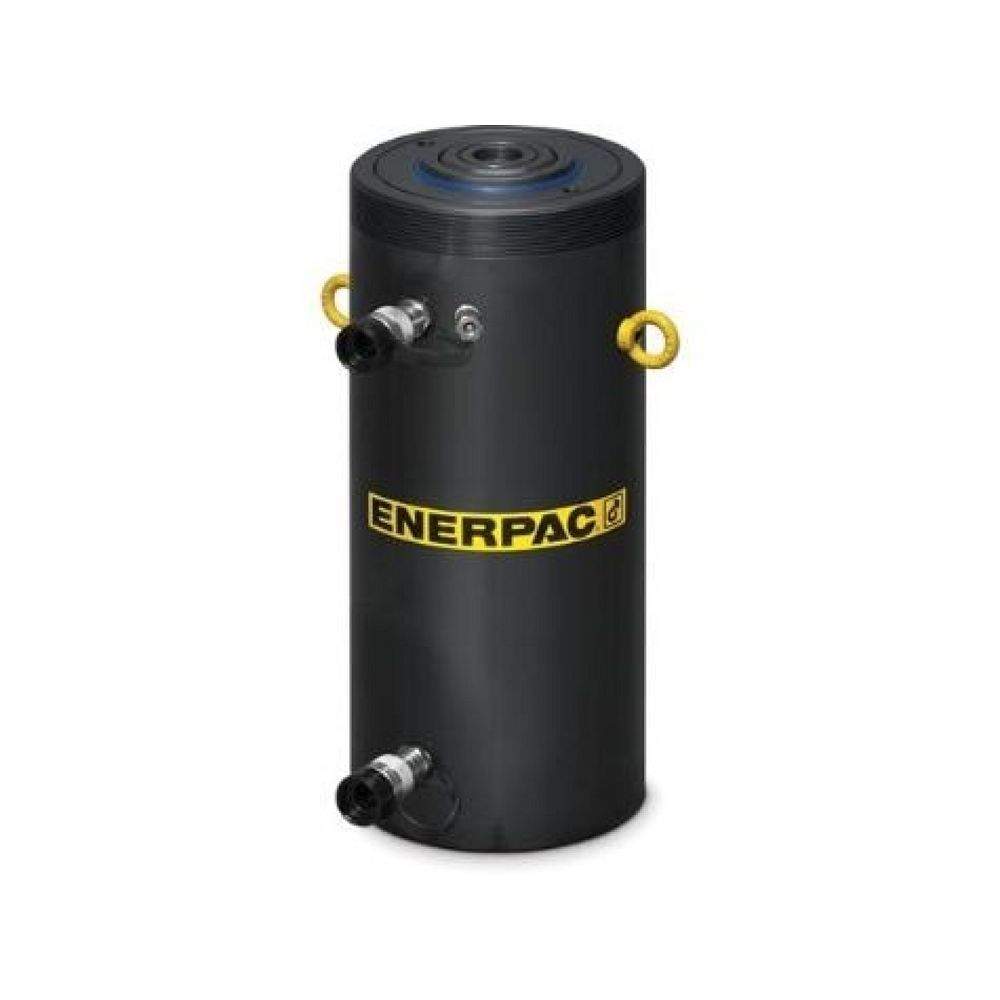

Enerpac HCR2508, 2541 kN Capacity, 200 mm Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
€0.00Excl. 19% VAT , excl. Shipping Cost
-
Enerpac HCRL15012, 1501 kN Capacity, 300 mm Stroke, Double-Acting, High Tonnage, Lock Nut Hydraulic Cylinder
€8,143.13Excl. 19% VAT , excl. Shipping Cost
Total price
Model: BRD166 |ECCN: EAR99 | Harmonization: 8412210075
Series: BRD |Product Line: Industrial Tools, Workholding Tools
Series: BRD |Product Line: Industrial Tools, Workholding Tools
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
- Double-acting operation develops force in both directions, providing maximum versatility
- Plunger wiper reduces contamination, extending cylinder life
Dimension imperial
Collar Thread Size W
M70 x 2
Dimension metric
Collapsed Height A (mm)
389
Extended Height B (mm)
548
Body Length C (mm)
359
Outside Diameter D (mm)
80
Cylinder Bore Diameter E (mm)
50,8
Plunger Diameter F (mm)
35,0
Bottom to Advance Port I (mm)
73
Top to Retract Port H (mm)
73
Plunger Protrusion K (mm)
30
Clevis Eye Mounting Dimension L (mm)
492
Clevis Eye Mounting Dimension L1 (mm)
651
Clevis Eye Mounting Dimension M (mm)
52
Neck Length N (mm)
54
Plunger Thread Length P (mm)
28
Plunger External Thread Q (mm)
M30 x 1,5
Collar Thread Size W
M70 x 2
Collar Thread Length X (mm)
22
Internal Base Thread Z (mm)
M56 x 2
Internal Base Thread Length Z1 (mm)
24
| Manufacturer Nr. | BRD166 |
|---|---|
| Manufacturer | Enerpac |
| Weight | 10.200000 |
| Note | Industriewerkzeuge, Spanntechnik |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought
Enerpac HCG506, 550 kN Capacity, 150 mm Stroke, Single-Acting, High Tonnage Hydraulic Cylinder
€1,100.58
Excl. 19% VAT ,
excl. Shipping Cost
Enerpac RR5020, 498 kN Capacity, 511 mm Stroke, Double-Acting, General Purpose Hydraulic Cylinder
€5,264.69
Excl. 19% VAT ,
excl. Shipping Cost

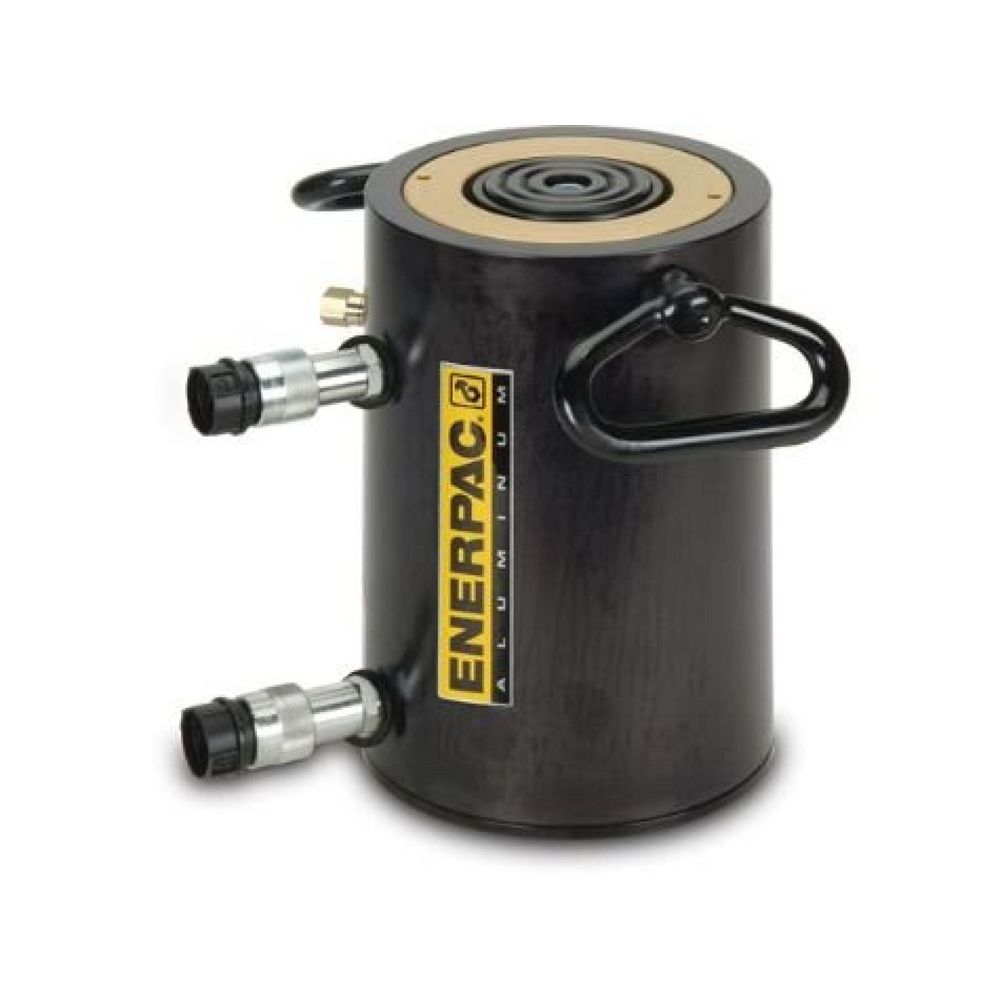

Enerpac RAR1008, 1002 kN Capacity, 200 mm Stroke, Double-Acting, Aluminum Hydraulic Cylinder
