Festo 8034563. Sub-base VMPAL-AP-20-T35-RV

Name: Festo 8034563. Sub-base VMPAL-AP-20-T35-RV
Brand: Festo
SKU: FES-8034563
Price: 19.7 EUR
Availability: InStock

€19.70

Excl. 19% VAT , excl. Shipping Cost

Article

FES-8034563

Manufacturer Nr.

VMPAL-AP-20-T35-RV

Sub-base

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 8034563. Sub-base VMPAL-AP-20-T35-RV
€19.70
Excl. 19% VAT , excl. Shipping Cost
Festo 527577. Air supply plate CPVSC1-SP-P
€77.53
Excl. 19% VAT , excl. Shipping Cost

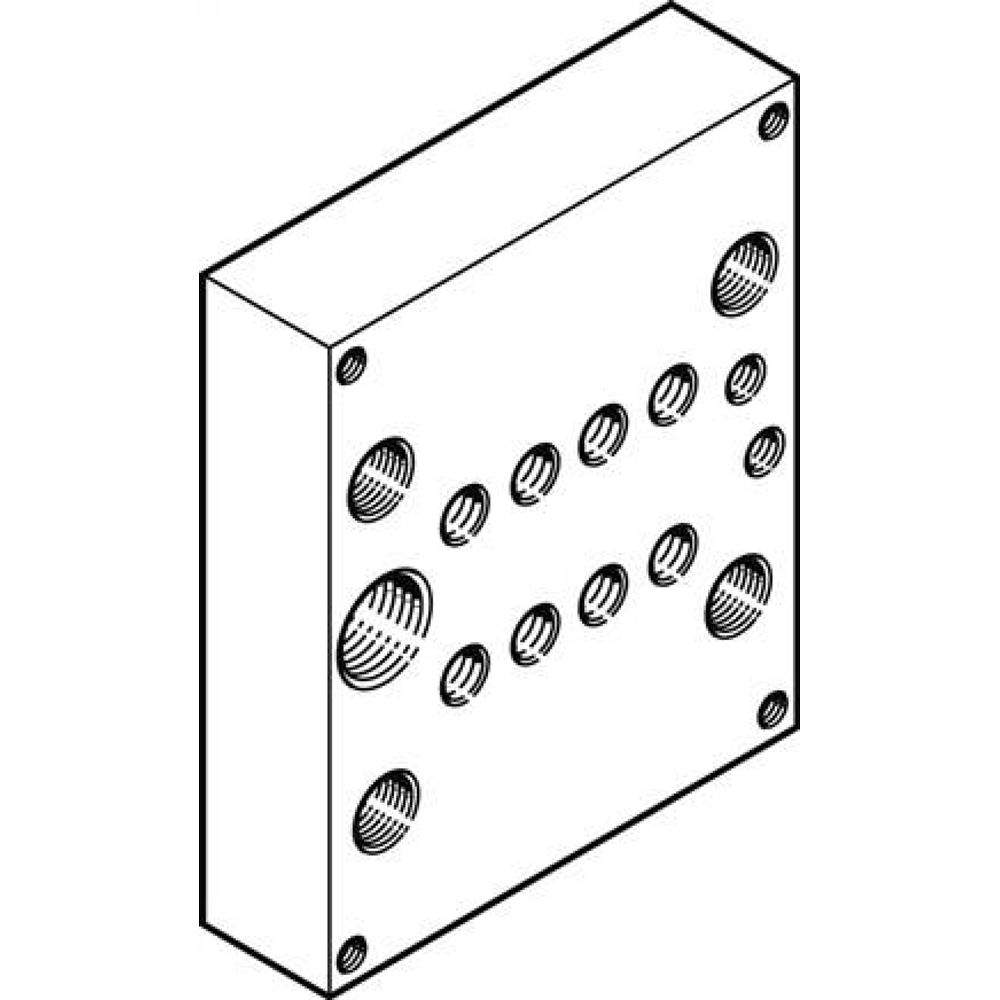

Festo 161970. Multi-pin CPV10-VI-P4-M7
€86.60
Excl. 19% VAT , excl. Shipping Cost

Total price

Construction width	20 mm
Width	21.2 mm
Length	107.3 mm
Grid dimension	21.2 mm
Pressure-zone division	Ducts 3 and 5
Integrated function	Check valve
Max. number of valve positions	1
Flow direction	Non-reversible
Valve terminal structure	Valve sizes can be mixed
Operating pressure	-0.09 MPa ... 1 MPa
Operating pressure	-0.9 bar ... 10 bar
Pilot pressure	0.3 MPa ... 0.8 MPa
Pilot pressure	3 bar ... 8 bar
Suitability for vacuum	no
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	3 - high corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-5 °C ... 50 °C
Product weight	50 g
Pneumatic connection, port 2	For 18 mm cartridge
Pneumatic connection, port 4	For 18 mm cartridge
Note on materials	RoHS-compliant
Material sub-base	PA-reinforced

More Information
Manufacturer Nr.	VMPAL-AP-20-T35-RV
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568283681
Weight	0.100000
HS-Code	84819000
Article authenticity	Original product
Condition of article	New
