Festo 8035230. Sub-base VMPAL-AP-10-RV

Name: Festo 8035230. Sub-base VMPAL-AP-10-RV
Brand: Festo
SKU: FES-8035230
Price: 17.09 EUR
Availability: InStock

€17.09

Excl. 19% VAT , excl. Shipping Cost

Article

FES-8035230

Manufacturer Nr.

VMPAL-AP-10-RV

Sub-base

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 8035230. Sub-base VMPAL-AP-10-RV
€17.09
Excl. 19% VAT , excl. Shipping Cost

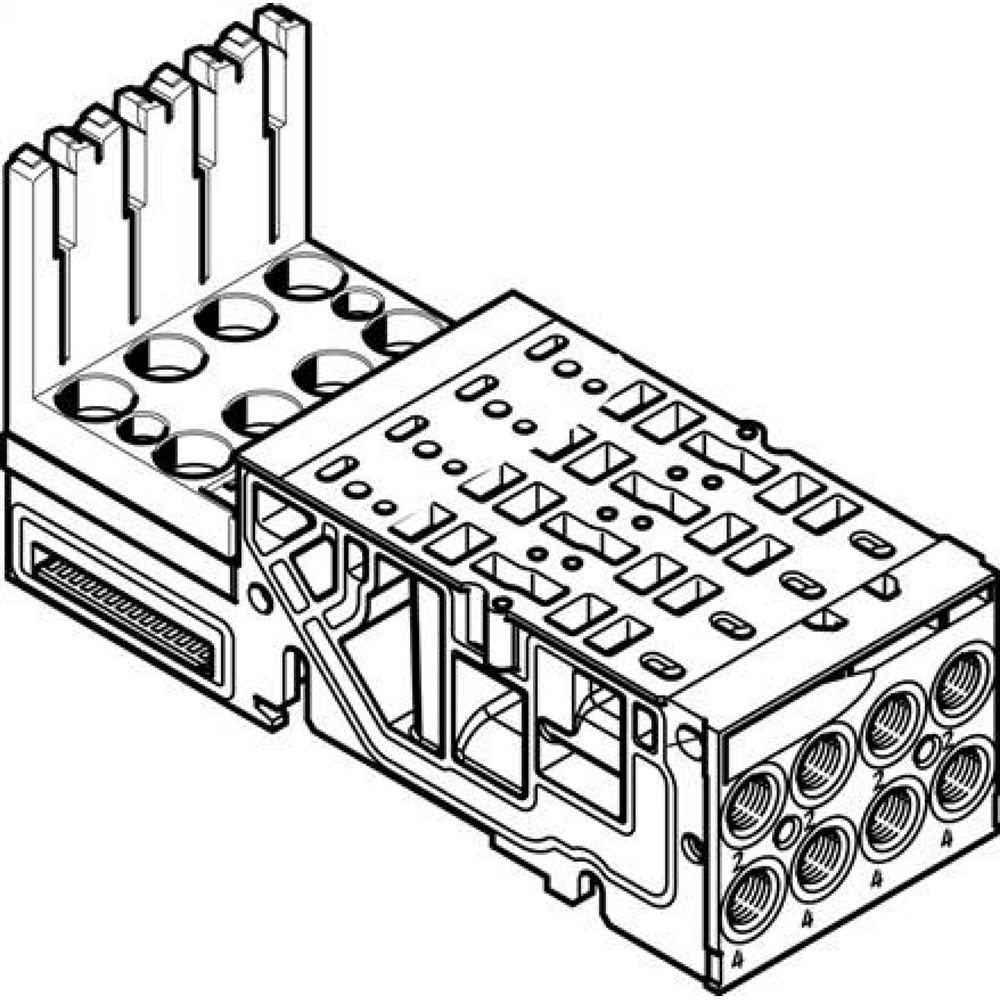

Festo VMPA1-AP-4-1-EMM-8 (546804) Sub-Base
€75.57
Excl. 19% VAT , excl. Shipping Cost
Festo 549114. Regulator plate VMPA2-B8-R7C2-C-06
€148.26
Excl. 19% VAT , excl. Shipping Cost

Total price

Construction width	10 mm
Width	10.7 mm
Length	107.3 mm
Grid dimension	10.7 mm
Integrated function	Check valve
Max. number of valve positions	1
Flow direction	Non-reversible
Valve terminal structure	Valve sizes can be mixed
Operating pressure	-0.09 MPa ... 1 MPa
Operating pressure	-0.9 bar ... 10 bar
Pilot pressure	0.3 MPa ... 0.8 MPa
Pilot pressure	3 bar ... 8 bar
Suitability for vacuum	no
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	3 - high corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-5 °C ... 50 °C
Product weight	25 g
Pneumatic connection, port 2	For 10 mm cartridge
Pneumatic connection, port 4	For 10 mm cartridge
Note on materials	RoHS-compliant
Material sub-base	PA-reinforced

More Information
Manufacturer Nr.	VMPAL-AP-10-RV
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568429393
Weight	0.050000
HS-Code	84819000
Article authenticity	Original product
Condition of article	New
