Festo 2399248. Semi-rotary drive DRRD-12-180-FH-Y9A

Name: Festo 2399248. Semi-rotary drive DRRD-12-180-FH-Y9A
Brand: Festo
SKU: FES-2399248
Price: 463.38 EUR
Availability: InStock

€463.38

Excl. 19% VAT , excl. Shipping Cost

Article

FES-2399248

Manufacturer Nr.

DRRD-12-180-FH-Y9A

Semi-rotary drive

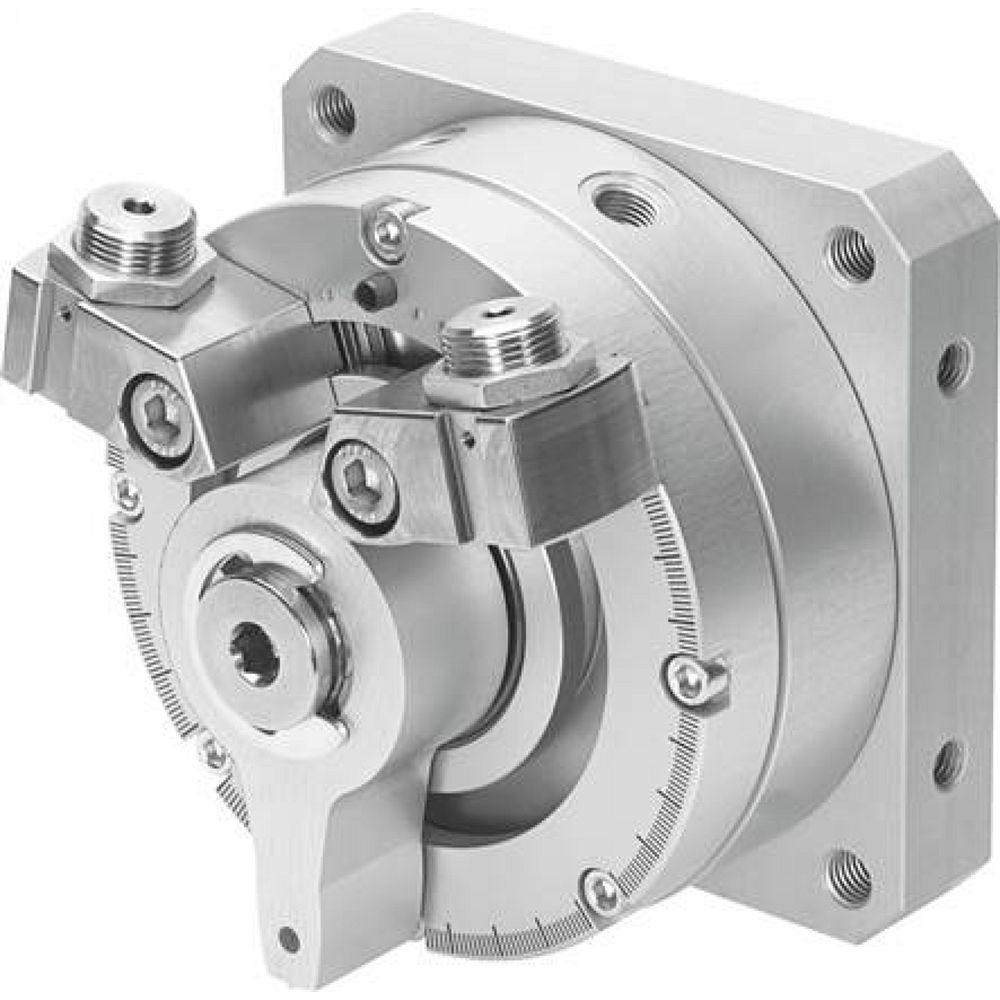

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 2399248. Semi-rotary drive DRRD-12-180-FH-Y9A
€463.38
Excl. 19% VAT , excl. Shipping Cost
Festo 185942. Semi-rotary drive DSM-10-240-P-FW
€222.90
Excl. 19% VAT , excl. Shipping Cost
Festo 556757. Swivel/linear unit DSL-40-125-270-CC-A-S2-KF-B
€2,626.97
Excl. 19% VAT , excl. Shipping Cost

Total price

Size	12
Cushioning angle	48 deg
Setting range of swivel angle on both sides	+10/-100 deg
Swivel angle	180 deg
Cushioning	Internal hydraulic cushioning normal
Mounting position	optional
Design	Rack and pinion
Position detection	Via proximity switch
Symbol	00991265
Operating pressure	0.2 MPa ... 1 MPa
Operating pressure	2 bar ... 10 bar
Mode of operation	Double-acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformity	VDMA24364 zone III
Ambient temperature	-10 °C ... 60 °C
Theoretical torque at 0.6 MPa (6 bar, 87 psi)	0.8 Nm
Permissible mass moment of inertia	0.03 kgm²
Product weight	385 g
Type of mounting	Either: With through-hole Via female thread
Pneumatic connection	M5
Note on materials	RoHS-compliant
Material drive shaft	High-alloy stainless steel
Material seals	NBR TPE-U(PU)
Material housing	Wrought aluminium alloy Smooth anodised

More Information
Manufacturer Nr.	DRRD-12-180-FH-Y9A
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568253943
Weight	0.490000
HS-Code	84123900
Article authenticity	Original product
Condition of article	New
