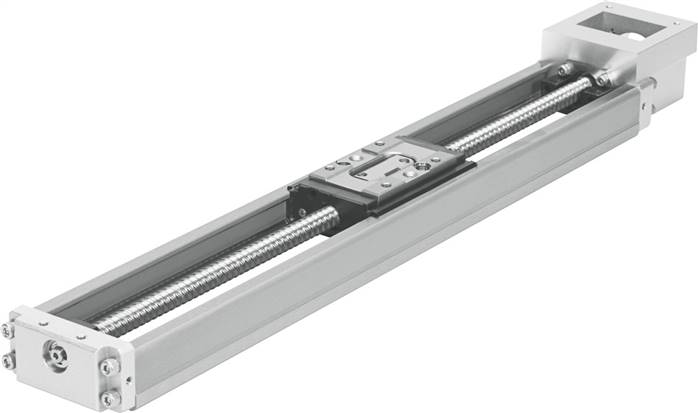

Festo 562776. Electrical slide EGSK-33-500-6P
Manufacturer Nr.
EGSK-33-500-6P
Frequently Bought Together
Working stroke 500 mm Size 33 Reversing backlash theoretical 20 µm Spindle diameter 10 mm Spindle pitch 6 mm/U Mounting position optional Guide Recirculating ball bearing guide Design Electromechanical linear axis
With ball screw drive Referencing Reference switch Spindle type Ball screw drive Symbol 00991211 Max. acceleration 20 m/s² Max. speed 0.47 m/s Repetition accuracy ±0.01 mm Corrosion resistance class CRC 0 - No corrosion stress LABS (PWIS) conformity VDMA24364 zone III Degree of protection IP10 Ambient temperature 0 °C ... 40 °C Dynamic basic load rating fixed bearing 1790 N Dynamic basic load rating linear guide 9207 N Dynamic basic load rating ball screw 2840 N 2nd moment of area Iy 62000 mm⁴ 2nd moment of area Iz 380000 mm⁴ Max. drive torque 0.14 Nm Max. force Fy 2469 N Max. force Fz 2469 N Max. moment Mx 50.1 Nm Max. moment My 16.4 Nm Max. moment Mz 16.4 Nm Max. feed force Fx 150 N Frictional torque independent of load 0.07 Nm Static basic load rating ball screw 4900 N Static basic load rating linear guide 20200 N Mass moment of inertia JH per metre of stroke 0.0771 kgcm² Mass moment of inertia JO 0.0115 kgcm² Feed constant 6 mm/U Static basic load rating fixed bearing 2590 N Reference value operational performance 3000 km Moving mass 310 g Weight of slide 310 g Product weight 4530 g Weight of additional slide 310 g Basic weight for 0 mm stroke 1380 g Additional weight per 10 mm stroke 63 g Type of mounting Via female thread and dowel pin Material end cap Die-cast aluminium
Coated Material profile Coated
High-alloy steel Note on materials RoHS-compliant Material drive cover Die-cast aluminium
Coated Material slide Steel Material spindle nut Steel Material spindle Steel
More Information
Manufacturer Nr.
EGSK-33-500-6P
Manufacturer
Festo
GPSR manufacturer information
Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN
4052568209841
Weight
6.000000
HS-Code
84799070
Article authenticity
Original product
Condition of article
New
