Festo 161760. Pressure switch PEV-1/4-SC-OD
€154.58
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-161760
Manufacturer Nr.
PEV-1/4-SC-OD
Pressure switch
Frequently Bought Together
-
This Item:
€154.58Excl. 19% VAT , excl. Shipping Cost
-
Festo 8022833. Pressure sensor SPAW-P6R-G14F-2NV-M12
€281.50Excl. 19% VAT , excl. Shipping Cost
-
Festo 527466. Pressure sensor SDE5-D10-O-Q4E-P-M8
€75.42Excl. 19% VAT , excl. Shipping Cost
Total price
| Conforms to standard | EN 60947-5-1 |
| Symbol | 00991471 |
| Approval | CCC |
| CE mark (see declaration of conformity) | To EU Low Voltage Directive |
| CE marking (see declaration of conformity) | To UK regulations for electrical equipment |
| Explosion protection | The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Note on materials | RoHS-compliant |
| Measured variable | Relative pressure |
| Measurement method | Pneumatic/electric pressure transducer with setting scale |
| Operating pressure | 0.1 MPa ... 1.2 MPa |
| Operating pressure | 1 bar ... 12 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] Water |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature | -20 °C ... 80 °C |
| Ambient temperature | -20 °C ... 80 °C |
| Switching element function | Changeover switch |
| Max. switching frequency | 3 Hz |
| Max. switching output voltage AC | 250 V |
| Max. switching output voltage DC | 125 V |
| Max. output current | 5000 mA |
| Min. load current | 1 mA at 24 V 10 mA at 10 V 100 mA at 5 V |
| Utilisation category - inductive load | AC-14 DC-13 |
| Utilisation category - resistive load | AC-12 DC-12 |
| Electrical connection | Type A Plugs To DIN 43650 Square design |
| Type of mounting | With through-hole |
| Mounting position | optional |
| Pneumatic connection | G1/4 |
| Product weight | 144 g |
| Material housing | Die-cast aluminium |
| Material switch contact | Silver |
| Setting range threshold value | 1 bar ... 12 bar |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Manufacturer Nr. | PEV-1/4-SC-OD |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568129279 |
| Weight | 0.175000 |
| HS-Code | 85365080 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought

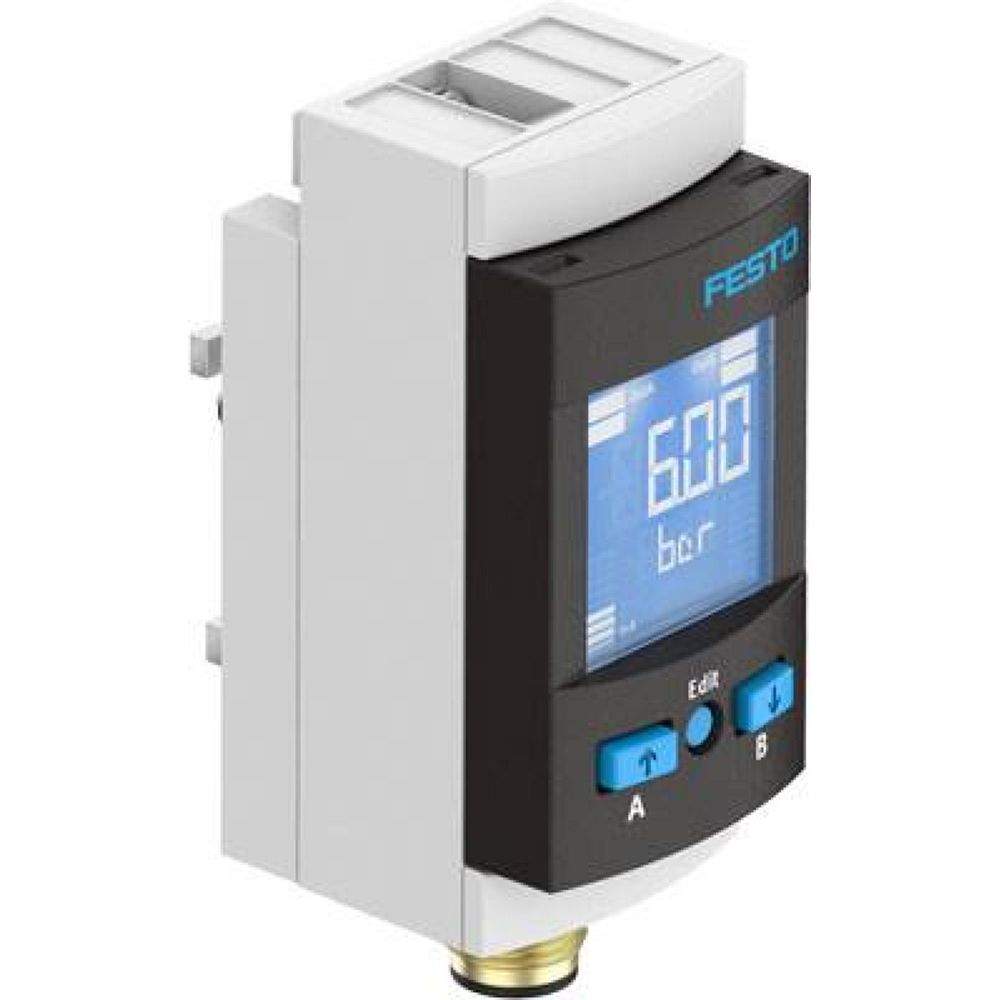

Festo 8035302. Pressure sensor SPAU-P10R-MS4-F-L-PNLK-PNVBA-M8D
€151.26
Excl. 19% VAT ,
excl. Shipping Cost

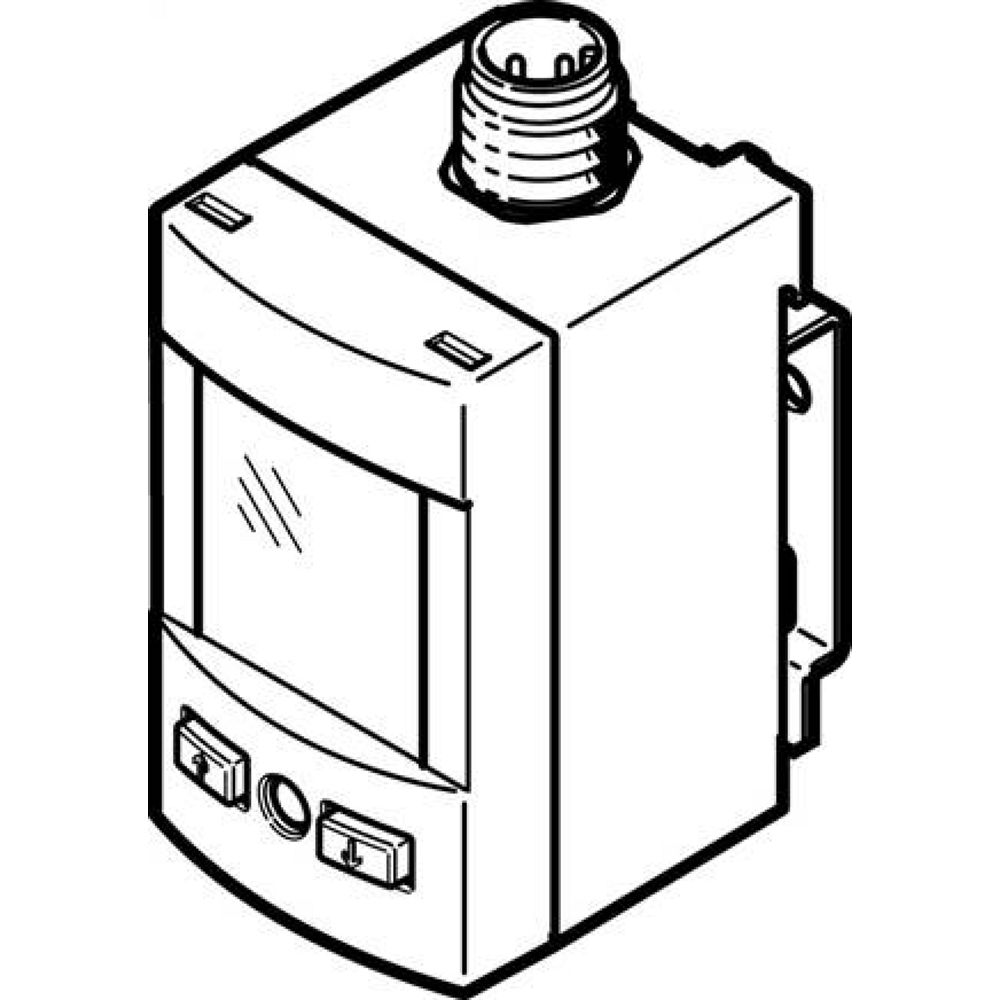

Festo 8001238. Pressure sensor SPAU-V1R-W-Q4D-L-PNLK-PNVBA-M12D
