Festo 151174. One-way flow control valve GRLA-1/4-PK-6-B
€21.08
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-151174
Manufacturer Nr.
GRLA-1/4-PK-6-B
One-way flow control valve
Frequently Bought Together
-
This Item:
€21.08Excl. 19% VAT , excl. Shipping Cost
-
Festo 2103. One-way flow control valve GR-3/4
€325.76Excl. 19% VAT , excl. Shipping Cost
-

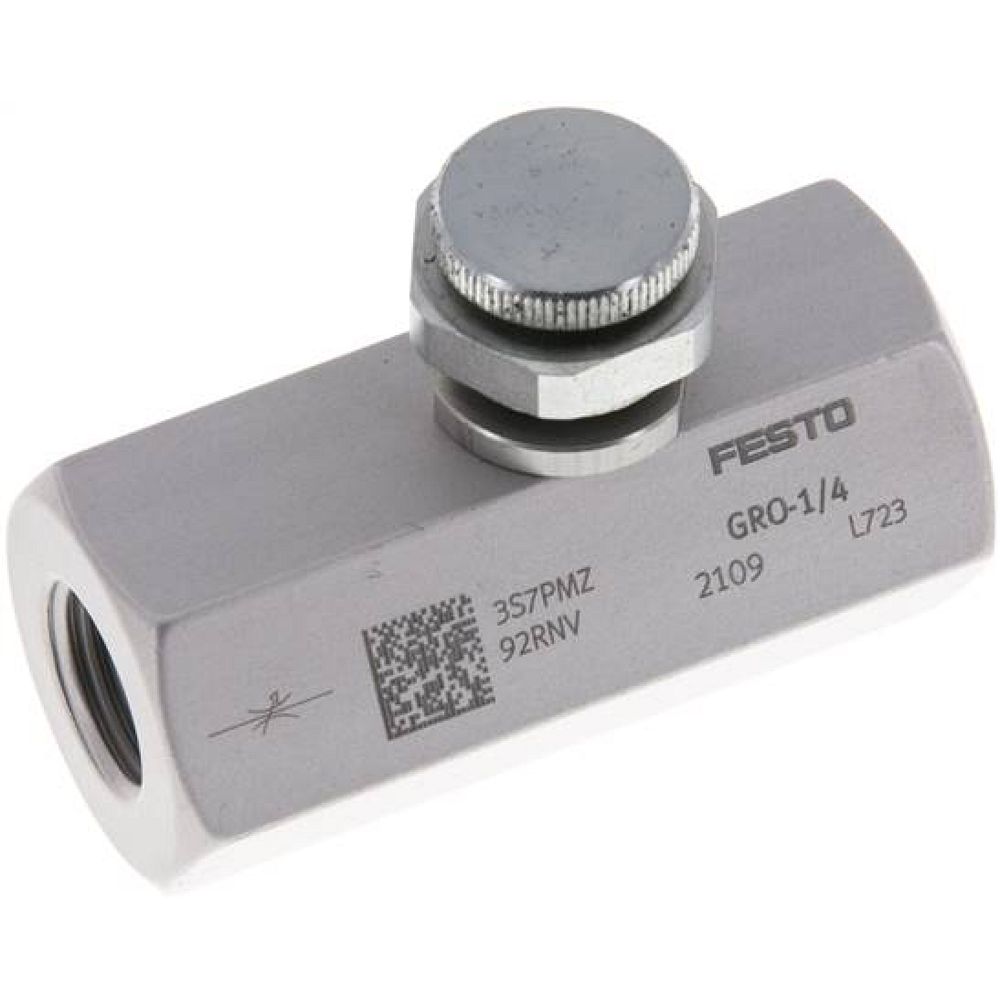

Festo 2109. Throttle valve GRO-1/4
€64.71Excl. 19% VAT , excl. Shipping Cost
Total price
| Valve function | Exhaust air one-way flow control function |
| Pneumatic connection, port 1 | For barbed fitting I.D. 6 mm with union nut |
| Pneumatic connection, port 2 | Male thread G1/4 |
| Adjustment component | Slotted head screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 540 l/min |
| Standard nominal flow rate in blocked direction | 410 l/min ... 585 l/min |
| Ambient temperature | -10 °C ... 60 °C |
| Maritime classification | See certificate |
| Explosion protection | The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Mounting position | optional |
| Symbol | 00991452 |
| Operating pressure complete temperature range | 0.3 bar ... 10 bar |
| Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) | 840 l/min |
| Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi) | 635 l/min ... 910 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 °C ... 60 °C |
| Nominal size | 6 mm |
| Max. tightening torque | 11 Nm |
| Product weight | 45 g |
| Material screwed plug | Wrought aluminium alloy |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material adjusting screw | Brass |
| Material swivel fitting | Die-cast zinc |
| Manufacturer Nr. | GRLA-1/4-PK-6-B |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568030599 |
| Weight | 0.046000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
