Festo 2103. One-way flow control valve GR-3/4
€325.76
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-2103
Manufacturer Nr.
GR-3/4
One-way flow control valve
Frequently Bought Together
-
This Item:
€325.76Excl. 19% VAT , excl. Shipping Cost
-
Festo 193150. One-way flow control valve GRLA-3/8-QS-8-D
€18.77Excl. 19% VAT , excl. Shipping Cost
-

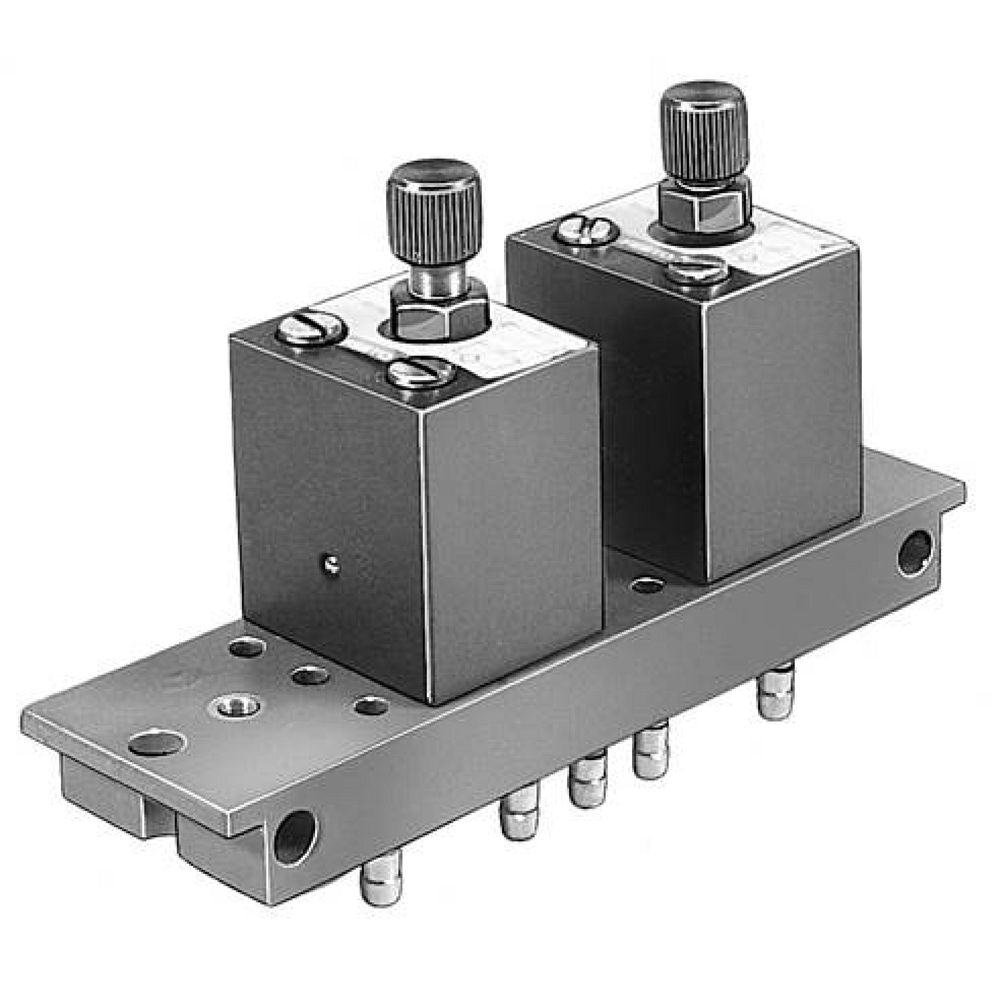

Festo 4566. One-way flow control valve GRF-PK-3X2
€256.06Excl. 19% VAT , excl. Shipping Cost
Total price
| Valve function | One-way flow control function |
| Pneumatic connection, port 1 | G3/4 |
| Pneumatic connection, port 2 | G3/4 |
| Adjustment component | Knurled screw |
| Type of mounting | Front panel mounting With through-hole |
| Standard nominal flow rate in flow control direction | 3300 l/min |
| Standard nominal flow rate in blocked direction | 4800 l/min |
| Operating pressure | 0.3 bar ... 15 bar |
| Ambient temperature | -10 °C ... 60 °C |
| Material housing | Wrought aluminium alloy |
| Explosion protection | The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Mounting position | optional |
| Symbol | 00991453 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 °C ... 60 °C |
| Product weight | 938 g |
| Note on materials | RoHS-compliant |
| Manufacturer Nr. | GR-3/4 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568000080 |
| Weight | 0.900000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
