Festo 161407. One-way flow control valve CRGRLA-1/2-B
€105.10
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-161407
Manufacturer Nr.
CRGRLA-1/2-B
One-way flow control valve
Frequently Bought Together
-
This Item:
€105.10Excl. 19% VAT , excl. Shipping Cost
-
Festo 175055. One-way flow control valve GRLZ-M5-QS-3-LF-C
€22.12Excl. 19% VAT , excl. Shipping Cost
-
Festo 193149. One-way flow control valve GRLA-3/8-QS-6-D
€21.32Excl. 19% VAT , excl. Shipping Cost
Total price
| Valve function | One-way flow control function |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Type of actuation | Manual |
| Adjustment component | Slotted head screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 2100 l/min |
| Standard nominal flow rate in blocked direction | 1550 l/min ... 2200 l/min |
| Operating pressure | 0.03 MPa ... 1 MPa |
| Operating pressure | 0.3 bar ... 10 bar |
| Operating pressure | 4.35 psi ... 145 psi |
| Ambient temperature | -20 °C ... 80 °C |
| Maritime classification | See certificate |
| Explosion protection | The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Mounting position | optional |
| Symbol | 00991452 |
| Rotatability | 360°/no continuous swivelling permissible |
| Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) | 4265 l/min |
| Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi) | 3550 l/min ... 4325 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 4 according to ISO 14644-1 |
| Storage temperature | -10 °C ... 40 °C |
| Suitable for use with food | See supplementary material information |
| Media temperature | -10 °C ... 60 °C |
| Nominal size | 10.6 mm |
| Max. tightening torque | 40 Nm |
| Permissible actuation moment, regulating screw | 3 Nm |
| Product weight | 262.3 g |
| Note on materials | RoHS-compliant |
| Material seals | FPM PVC |
| Material hollow bolt | High-alloy steel |
| Material adjusting screw | High-alloy stainless steel |
| Material swivel fitting | High-alloy stainless steel |
| Manufacturer Nr. | CRGRLA-1/2-B |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568129217 |
| Weight | 0.260000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought

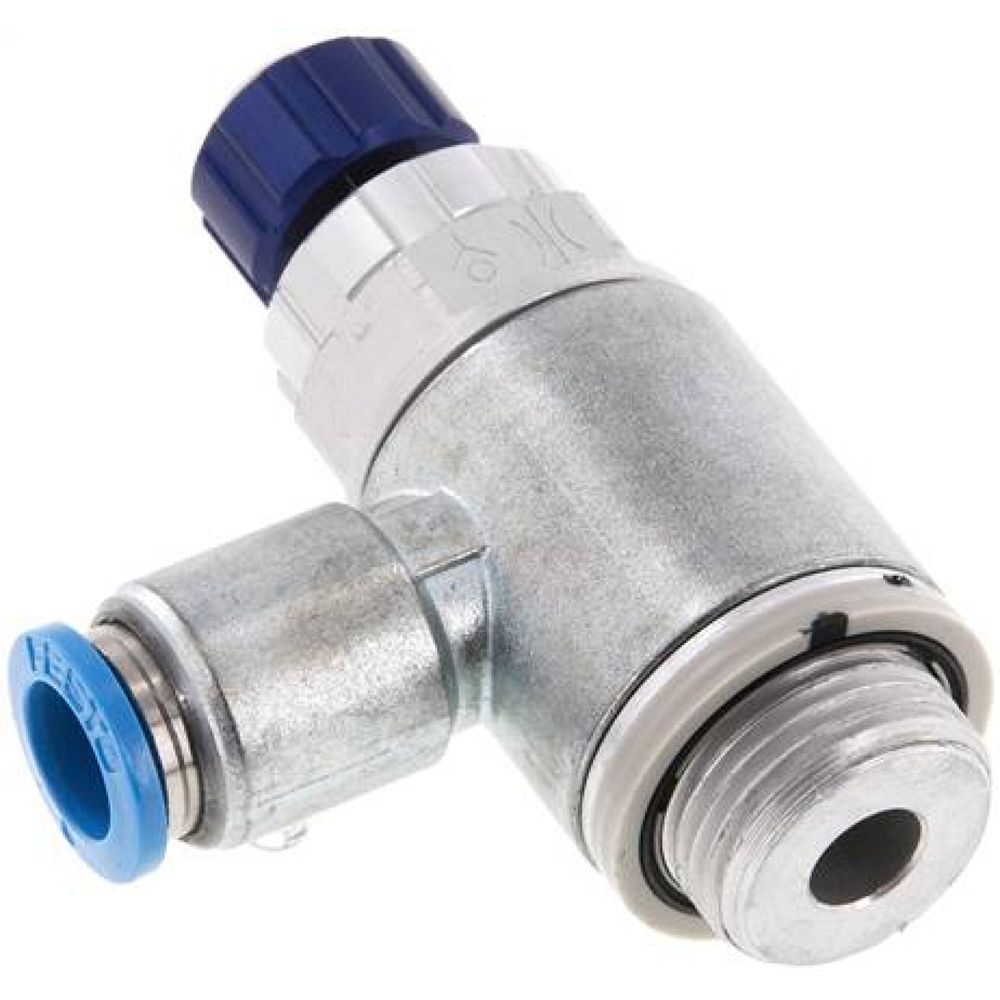

Festo 534342. One-way flow control valve GRLA-3/8-QS-8-RS-D
