Festo 159714. Solenoid valve JMN1H-5/2-D-3-C

Name: Festo 159714. Solenoid valve JMN1H-5/2-D-3-C
Brand: Festo
SKU: FES-159714
Price: 206.54 EUR
Availability: InStock

€206.54

Excl. 19% VAT , excl. Shipping Cost

Article

FES-159714

Manufacturer: Festo

Manufacturer Nr.

JMN1H-5/2-D-3-C

Solenoid valve

Skip to the end of the images gallery

Skip to the beginning of the images gallery

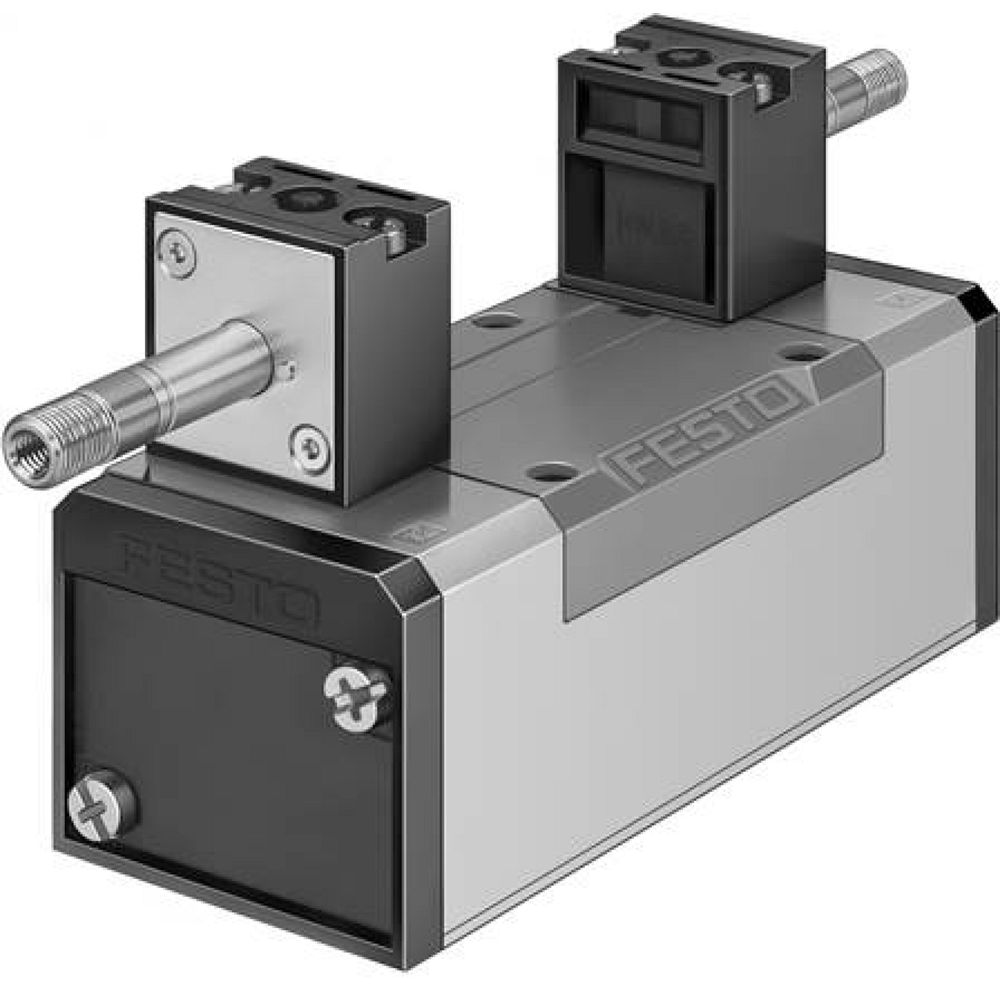

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 159714. Solenoid valve JMN1H-5/2-D-3-C
€206.54
Excl. 19% VAT , excl. Shipping Cost
Festo 159709. Solenoid valve MN1H-5/3B-D-3-C
€245.82
Excl. 19% VAT , excl. Shipping Cost
Festo 151034. Solenoid valve MFH-5/3G-D-3-S-C
€276.32
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Downloads

Valve function	5/2 double solenoid
Type of actuation	Electric
Construction width	65 mm
Standard nominal flow rate	4500 l/min
pneumatic working port	Sub-base size 3 to ISO 5599-1 G1/2
Operating voltage	Via solenoid coil, must be ordered separately
Operating pressure	0.2 MPa ... 1 MPa
Operating pressure	2 bar ... 10 bar
Design	Piston gate valve
Approval	c UL us - Recognized (OL)
Maritime classification	See certificate
Degree of protection	IP65
Nominal size	14.5 mm
Grid dimension	71 mm
Exhaust-air function	With flow control option
Sealing principle	Soft
Mounting position	optional
Conforms to standard	ISO 5599-1
Manual override	Detenting via accessory Non-detenting
ISO code	355
Type of piloting	Pilot actuated
Pilot air supply	Internal
Flow direction	Non-reversible
Symbol	00991005
lap	Positive overlap
Switching time reversal	21 ms
Max. positive test pulse with 0 signal	3700 µs
Max. negative test pulse with 1 signal	4600 µs
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Vibration resistance	Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistance	Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Media temperature	-5 °C ... 50 °C
Sound pressure level	85 dB(A)
Ambient temperature	-5 °C ... 50 °C
Product weight	1090 g
Electrical connection	Via N1 coil, to be ordered separately
Type of mounting	On sub-base Via through-hole and screw
Pilot exhaust port 82	M5
Pilot exhaust port 84	M5
Pneumatic connection, port 1	Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 2	Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 3	Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 4	Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 5	Sub-base size 3 to ISO 5599-1
Note on materials	RoHS-compliant
Material seals	HNBR NBR
Material housing	Die-cast aluminium

More Information
Manufacturer Nr.	JMN1H-5/2-D-3-C
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568012137
Weight	0.950000
HS-Code	84812090
Article authenticity	Original product
Condition of article	New
