Aventics 5/4-directional valve, Series 740 5727510220 V740-5/4CC-DI06-024DC-07
€390.67
Excl. 19% VAT ,
excl. Shipping Cost
Article
AVE-5727510220
Manufacturer Nr.
5727510220
V740-5/4CC-DI06-024DC-07
Frequently Bought Together
-
This Item:
€390.67Excl. 19% VAT , excl. Shipping Cost
-

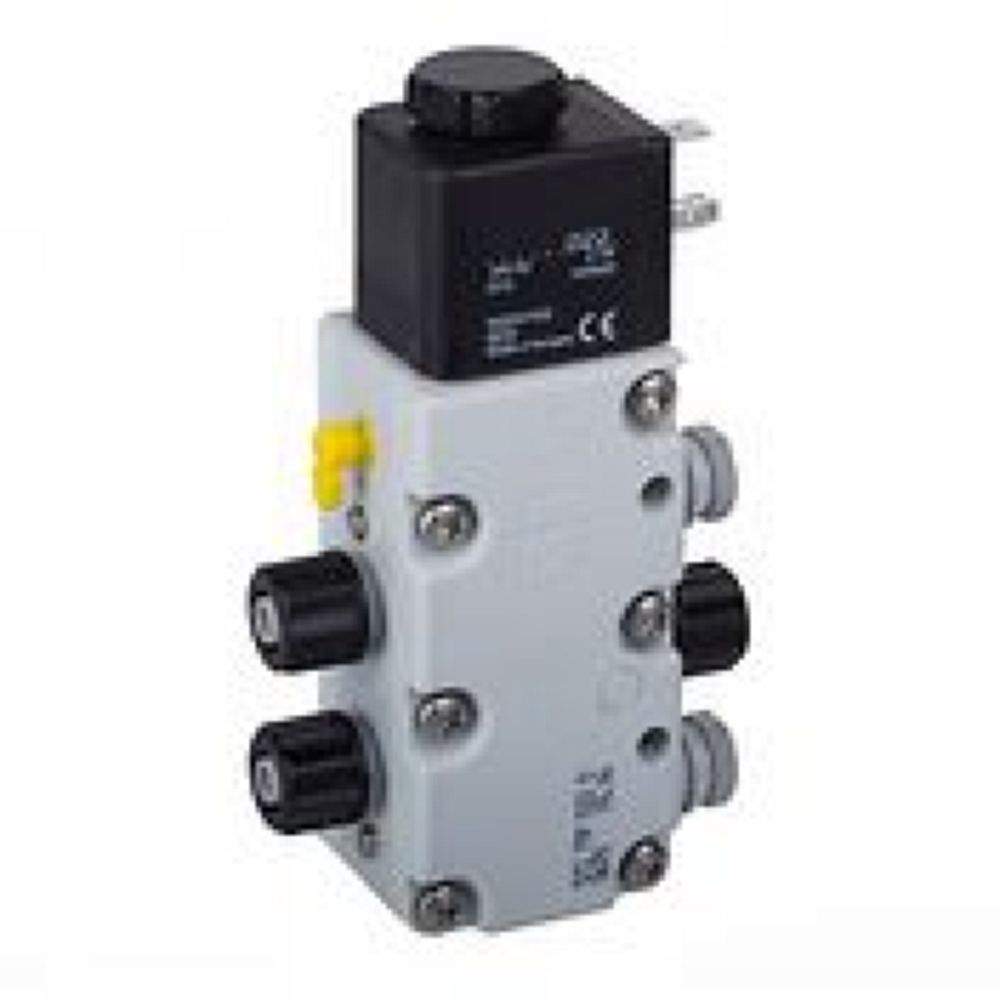

Aventics 5/2-directional valve, Series 740 5727450220 V740-5/2AR-024DC-07
€132.17Excl. 19% VAT , excl. Shipping Cost
-

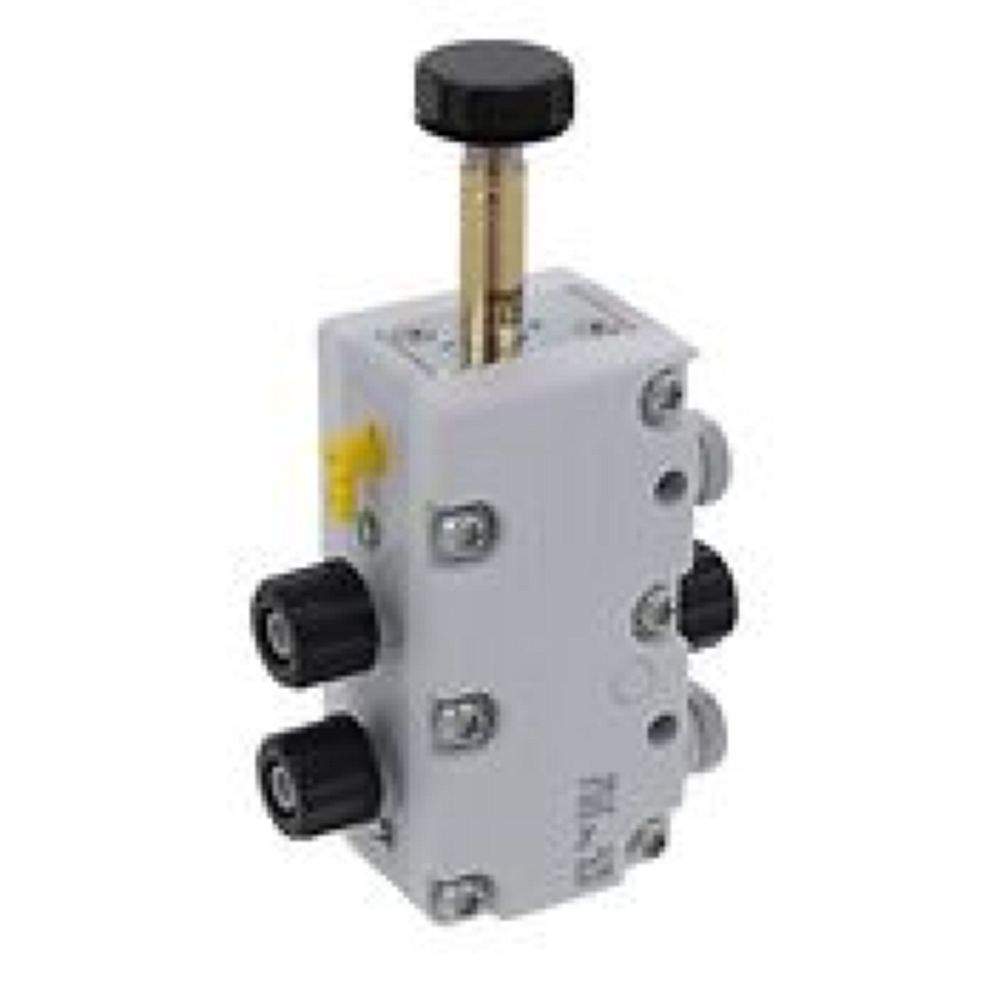

Aventics 5/2-directional valve, Series 740 5727405302 V740-5/2AS-00000-07
€103.53Excl. 19% VAT , excl. Shipping Cost
Total price
| Activation | Electrically |
| Nominal flow Qn | 700 l/min |
| Switching principle | 5/4 |
| Compressed air connection output | Ø 8x1 |
| Working pressure min. | 3 bar |
| Working pressure max | 10 bar |
| DC operating voltage | 24 V |
| Voltage tolerance DC | -10% / +10% |
| Manual override | without detent |
| Electrical connection type | Plug |
| Electrical connection size | EN 175301-803, form A |
| Sealing principle | Soft Seal |
| Pilot | Internal |
| Valve type | Diaphragm poppet valve |
| Valve plug connector | With valve plug connector |
| Connection type | Pipe connection |
| Blocking principle | Plate principle, Single base plate principle |
| Can be assembled into blocks | Can be assembled into blocks |
| Min. ambient temperature | -15 °C |
| Max. ambient temperature | 50 °C |
| Min. medium temperature | -15 °C |
| Max. medium temperature | 50 °C |
| Medium | Compressed air |
| Max. particle size | 50 µm |
| Oil content of compressed air min. | 0 mg/m³ |
- Robust polymer housing
- Suitable for all air qualities
- For consistently high repeatability
- Base plate assembly and block assembly possible
- Versions also available with UL and ATEX coils
| Manufacturer Nr. | 5727510220 |
|---|---|
| Manufacturer | Aventics |
| GPSR manufacturer information | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Weight | 0.500000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Aventics 5/2-directional valve, Series 740 5727455480 V740-5/2AR-230AC-07
€128.04
Excl. 19% VAT ,
excl. Shipping Cost
Aventics 5/2-directional valve, Series 740 5727485280 V740-5/2DS-230DC-07
€202.83
Excl. 19% VAT ,
excl. Shipping Cost
.jpg?width=240&height=300&store=en&image-type=small_image)

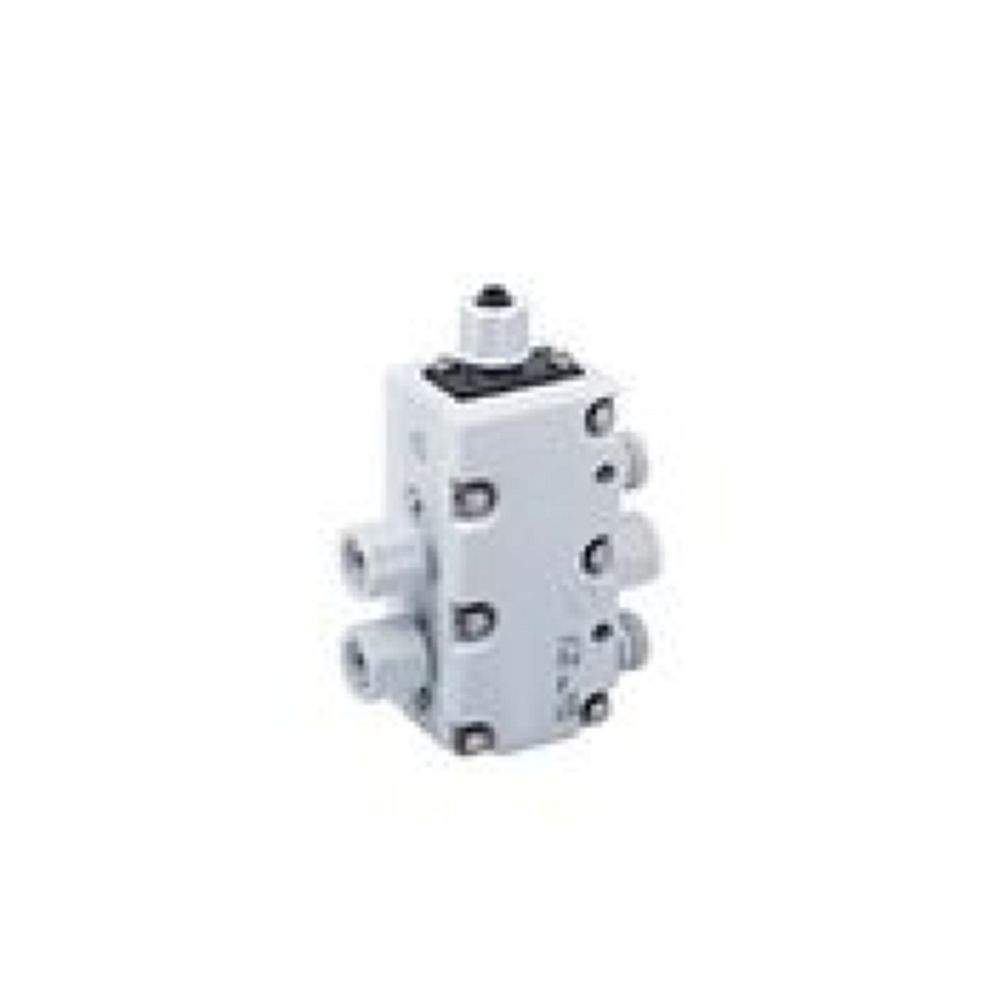

Aventics 5/2-directional valve, Series 740-CP 5717451000 V740-5/2AS-07-CP
€89.69
Excl. 19% VAT ,
excl. Shipping Cost

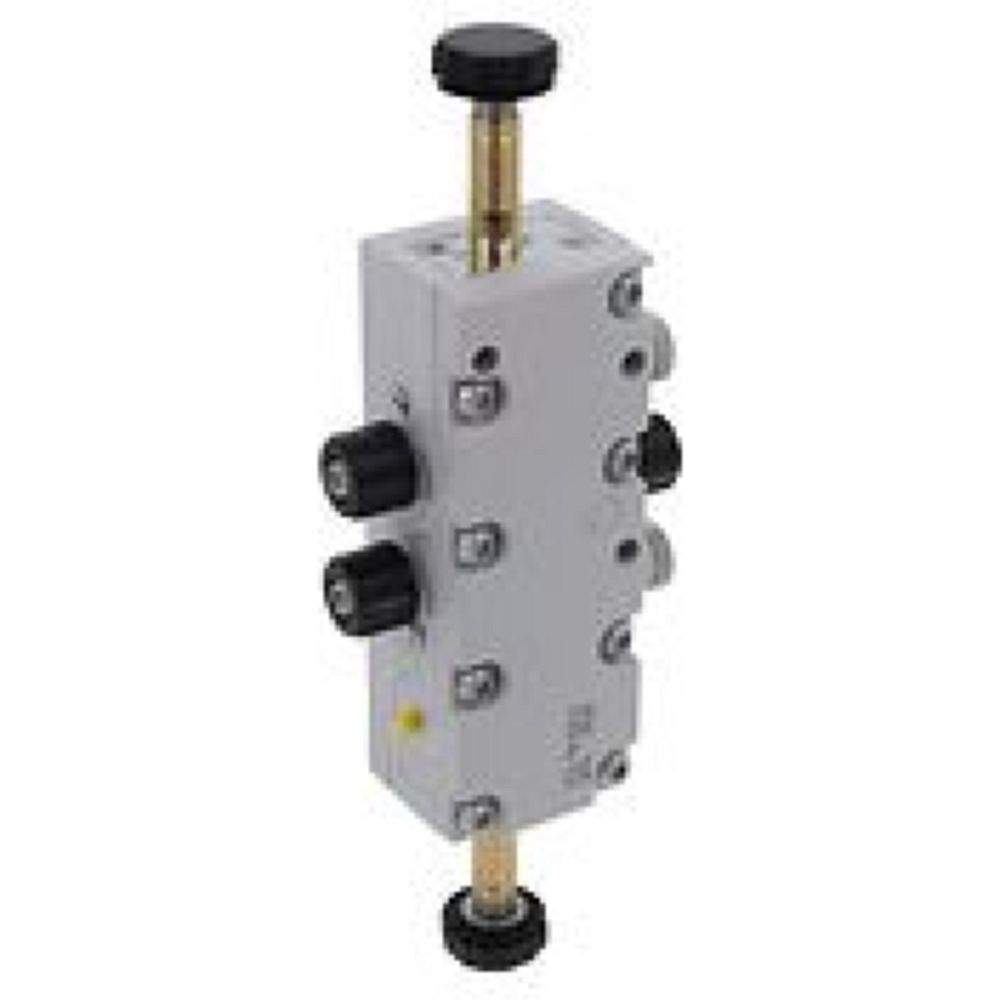

Aventics 5/2-directional valve, Series 740 5727415302 V740-5/2DS-00000-07
€138.37
Excl. 19% VAT ,
excl. Shipping Cost
Aventics 5/2-directional valve, Series 740 5727460220 V740-5/2DS-024DC-07
€197.20
Excl. 19% VAT ,
excl. Shipping Cost

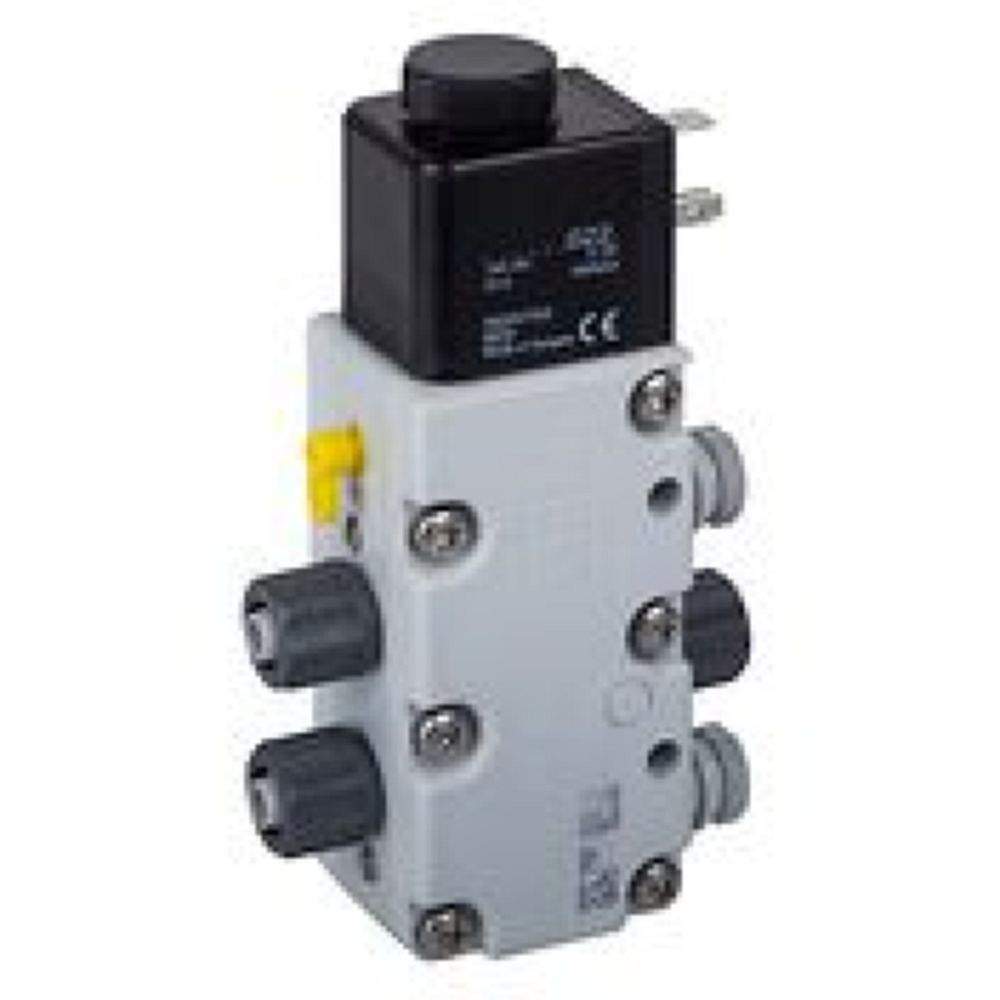

Aventics 5/2-directional valve, Series 740-UL R432038437 V740-5/2SS-24VDC-CURUS
€157.54
Excl. 19% VAT ,
excl. Shipping Cost

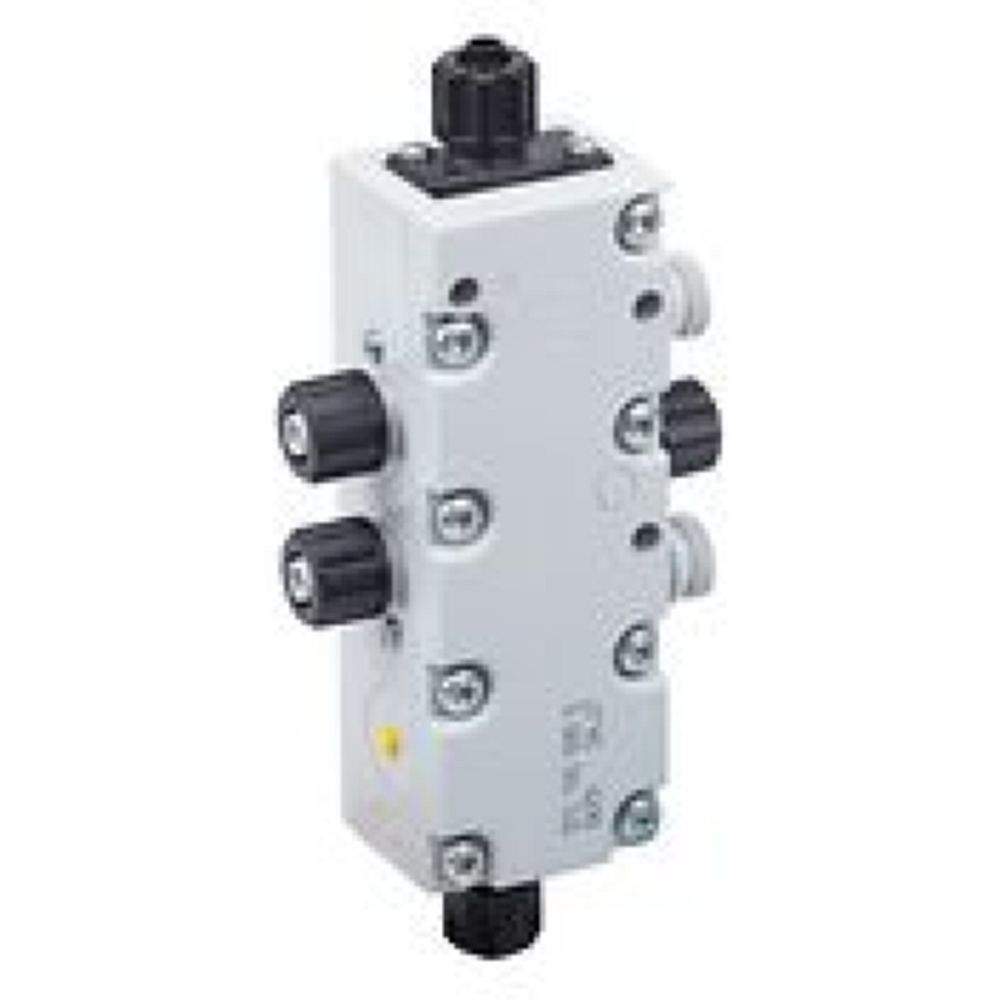

Aventics 5/2-directional valve, Series 740 5717460000 V740-5/2DP-07
