Guide cylinder, with slide bearing, pistons 16mm,stroke 50mm
€290.48
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-041499
Manufacturer Nr.
ZDFM 16/50 G
Guide cylinder, with slide bearing, pistons 16mm,stroke 50mm
Frequently Bought Together
-
This Item:
€290.48Excl. 19% VAT , excl. Shipping Cost
-
EMC SGM 63/100. Guide cylinder, with slide bearing, pistons 63mm, stroke 100mm
€264.07Excl. 19% VAT , excl. Shipping Cost
-
EMC SGM 12/40. Guide cylinder, with slide bearing, pistons 12mm, stroke 40mm
€83.48Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
| Piston diameter [mm] | 16 |
| Stroke [mm] | 50 |
| Version | with slide bearing |
| F (compressed air port) | M 5 |
| Repair sets | ZDFM 16 REP |
| lateral force permissible [N] | 20 |
| permissible torque at the end-plate [Nm] | 0,28 |
| A [mm] | 10 |
| B [mm] | 0 |
| C [mm] | 10 |
| D [mm] | 8 |
| E1 [mm] | 52 |
| E2 [mm] | 16 |
| F1 [mm] | 10,5 |
| F2 [mm] | 9 |
| F3 [mm] | 6 |
| G1 [mm] | 62 |
| G2 [mm] | 25 |
| H [mm] | 42 |
| H1 [mm] | 40 |
| L1 [mm] | 33,0 |
| L2 [mm] | 46,0 |
| L3 [mm] | 46,0 |
| M1 [mm] | 64 |
| M2 [mm] | 33 |
| N [mm] | 22 |
| N1 [mm] | 15 |
| N2 [mm] | 18 |
| O1 [mm] | 13 |
| O2 [mm] | 7 |
| O3 [mm] | 54 |
| P1 | M 5 |
| Q [mm] | 20 |
| R [mm] | 8,0 |
| T1 [mm] | 2,5 |
| T2 [mm] | 5,5 |
| Manufacturer Nr. | ZDFM 16/50 G |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571810108 |
| Weight | 55.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

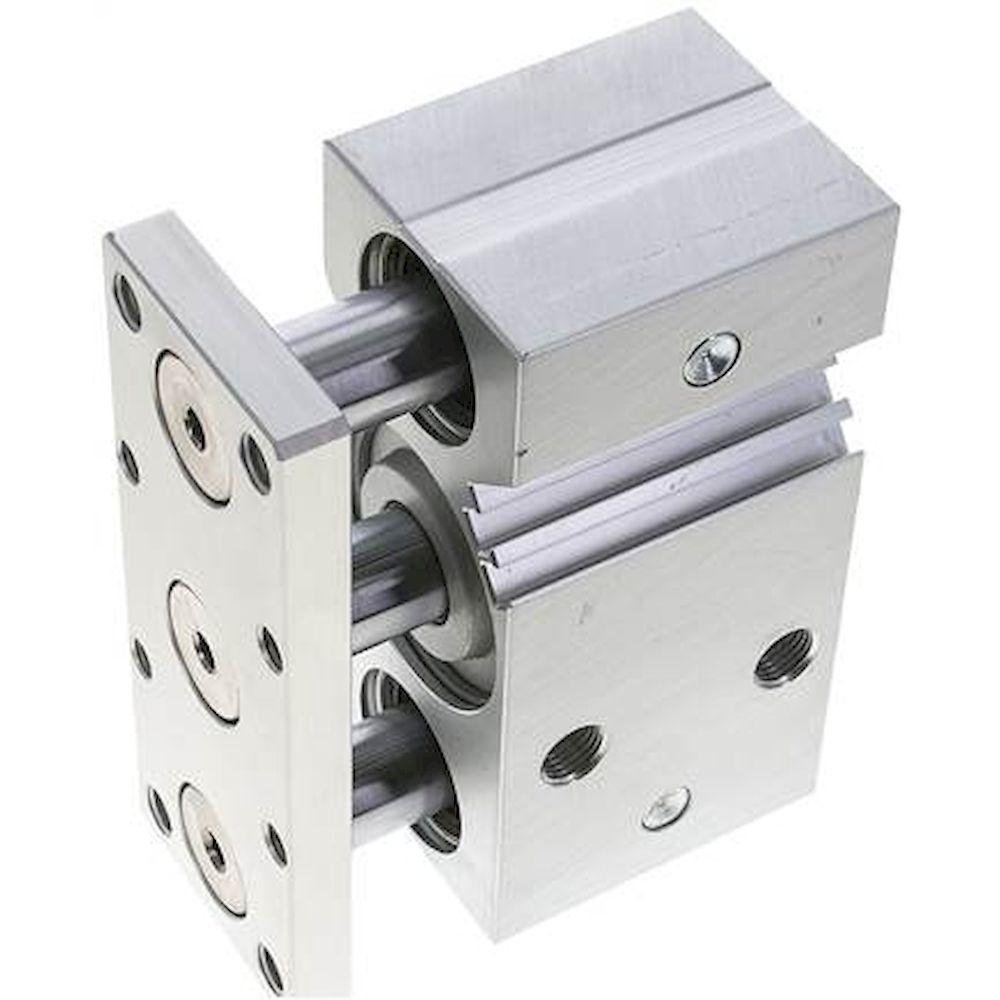

Guide cylinder, with ball bushing, pistons 50mm,stroke 25mm
€651.47
Excl. 19% VAT ,
excl. Shipping Cost

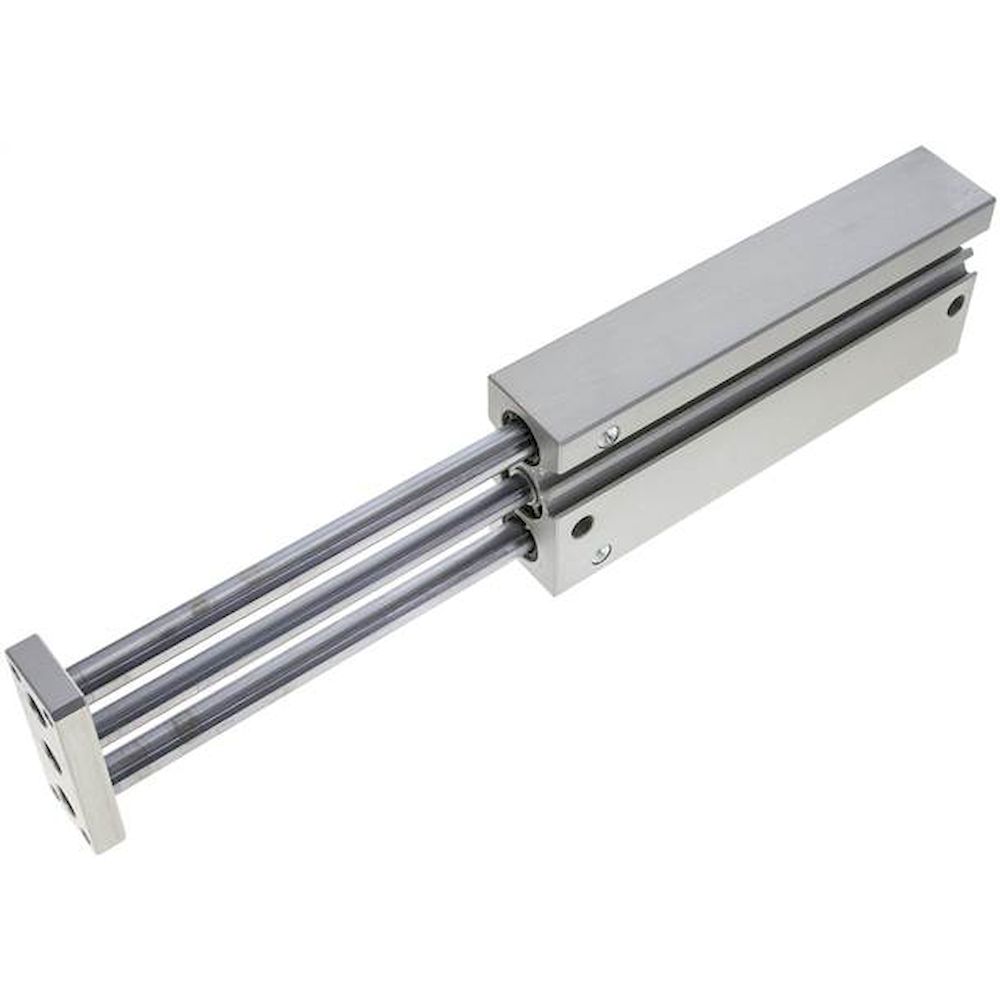

Guide cylinder, with slide bearing, pistons 20mm,stroke 150mm
€521.42
Excl. 19% VAT ,
excl. Shipping Cost

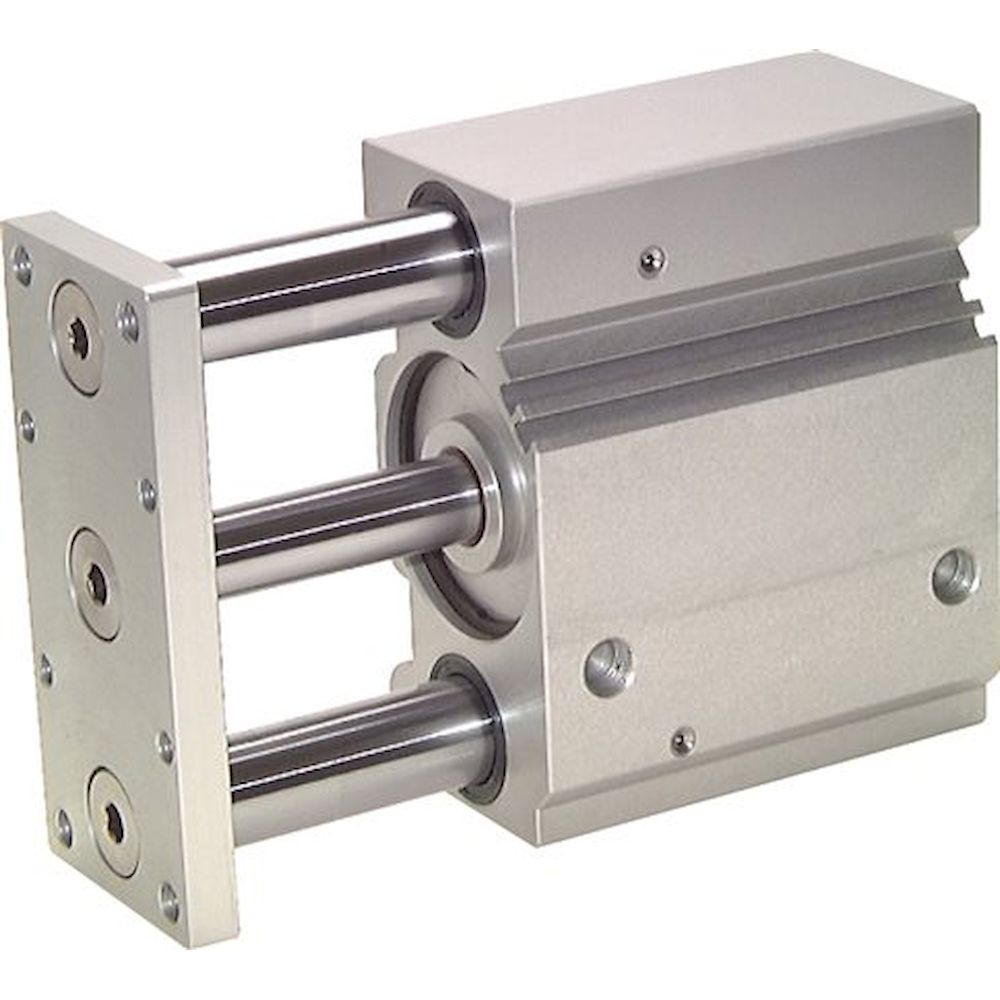

Guide cylinder, with slide bearing, pistons 80mm,stroke 50mm
