Airtec XLK 63/125. ISO 15552 cylinders, piston 63 mm, stroke 125 mm

Name: Airtec XLK 63/125. ISO 15552 cylinders, piston 63 mm, stroke 125 mm
Brand: Airtec
SKU: FL-XLK-63/125
Price: 280.16 EUR
Availability: InStock

€280.16

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XLK-63/125

Manufacturer Nr.

XLK 63/125

ISO 15552 cylinders, piston 63 mm, stroke 125 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Airtec XLK 63/125. ISO 15552 cylinders, piston 63 mm, stroke 125 mm
€280.16
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 40/1000-EK. ISO 15552 cylinders, piston 40 mm, stroke 1000 mm
€271.32
Excl. 19% VAT , excl. Shipping Cost

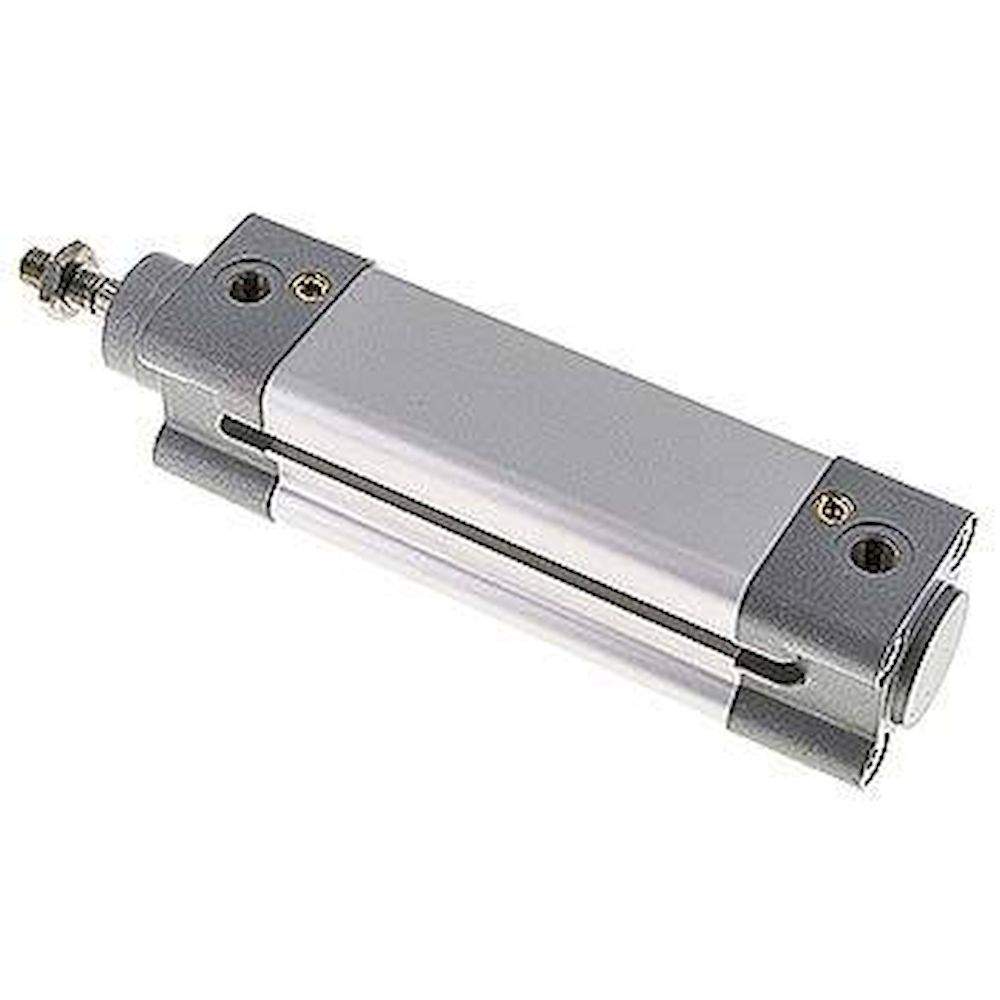

Airtec XL 32/75-EK. ISO 15552 cylinders, piston 32 mm, stroke 75 mm
€109.69
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and foot: stove-enamelled die-cast aluminium, cylinder tube: anodized aluminium profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A

Piston diameter [mm]	63
Stroke [mm]	125
Version	continuous piston rod
A (thread)	M 16x1,5
G (compressed air port)	G 3/8"
Repair sets	XL 63 REP
B [mm]	20
C [mm]	45
D [mm]	25,0
F [mm]	32
G [mm]	37
H [mm]	158
K [mm]	4
M [mm]	74,0
N [mm]	56,5
CH [mm]	17
RT	M 8
