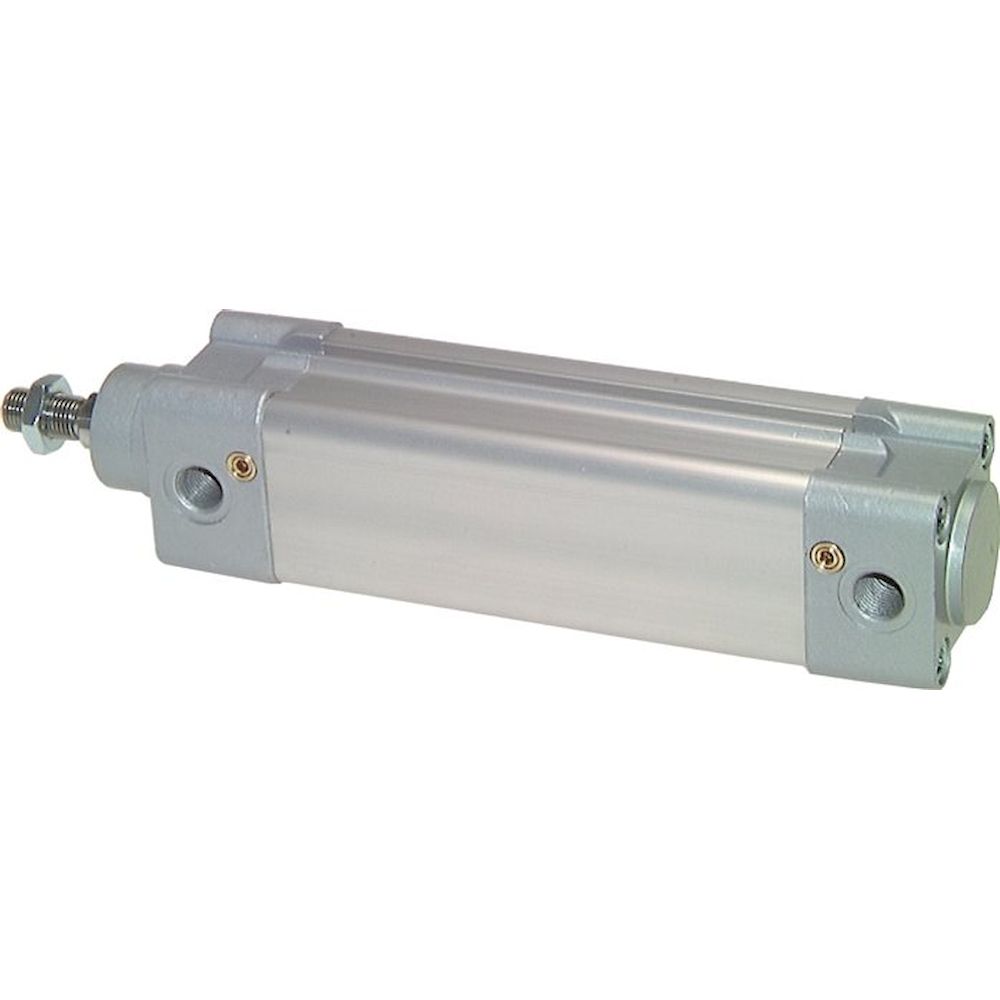

Airtec XL 32/235. ISO 15552 cylinders, piston 32 mm, stroke 235 mm

Name: Airtec XL 32/235. ISO 15552 cylinders, piston 32 mm, stroke 235 mm
Brand: Airtec
SKU: FL-XL-32/235
Price: 118.39 EUR
Availability: InStock

€118.39

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XL-32/235

Manufacturer Nr.

XL 32/235

ISO 15552 cylinders, piston 32 mm, stroke 235 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Airtec XL 32/235. ISO 15552 cylinders, piston 32 mm, stroke 235 mm
€118.39
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 50/300. ISO 15552 cylinders, piston 50 mm, stroke 300 mm
€163.13
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 63/40. ISO 15552 cylinders, piston 63 mm, stroke 40 mm
€130.24
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and foot: stove-enamelled die-cast aluminium, cylinder tube: anodized aluminium profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A

Piston diameter [mm]	32
Stroke [mm]	235
Version	Standard
A (thread)	M 10x1,25
G (compressed air port)	G 1/8"
Repair sets	XL 32 REP
B [mm]	12
C [mm]	30
D [mm]	18,0
F [mm]	22
G [mm]	26
H [mm]	120
K [mm]	4
M [mm]	47,0
N [mm]	32,5
CH [mm]	10
RT	M 6
