EMC XLE 63/200. ISO 15552 cylinders, piston 63 mm, stroke 200 mm, ECO

Name: EMC XLE 63/200. ISO 15552 cylinders, piston 63 mm, stroke 200 mm, ECO
Brand: E.MC
SKU: FL-XLE-63/200
Price: 92.85 EUR
Availability: InStock

€92.85

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XLE-63/200

Manufacturer Nr.

XLE 63/200

ISO 15552 cylinders, piston 63 mm, stroke 200 mm, ECO

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: EMC XLE 63/200. ISO 15552 cylinders, piston 63 mm, stroke 200 mm, ECO
€92.85
Excl. 19% VAT , excl. Shipping Cost

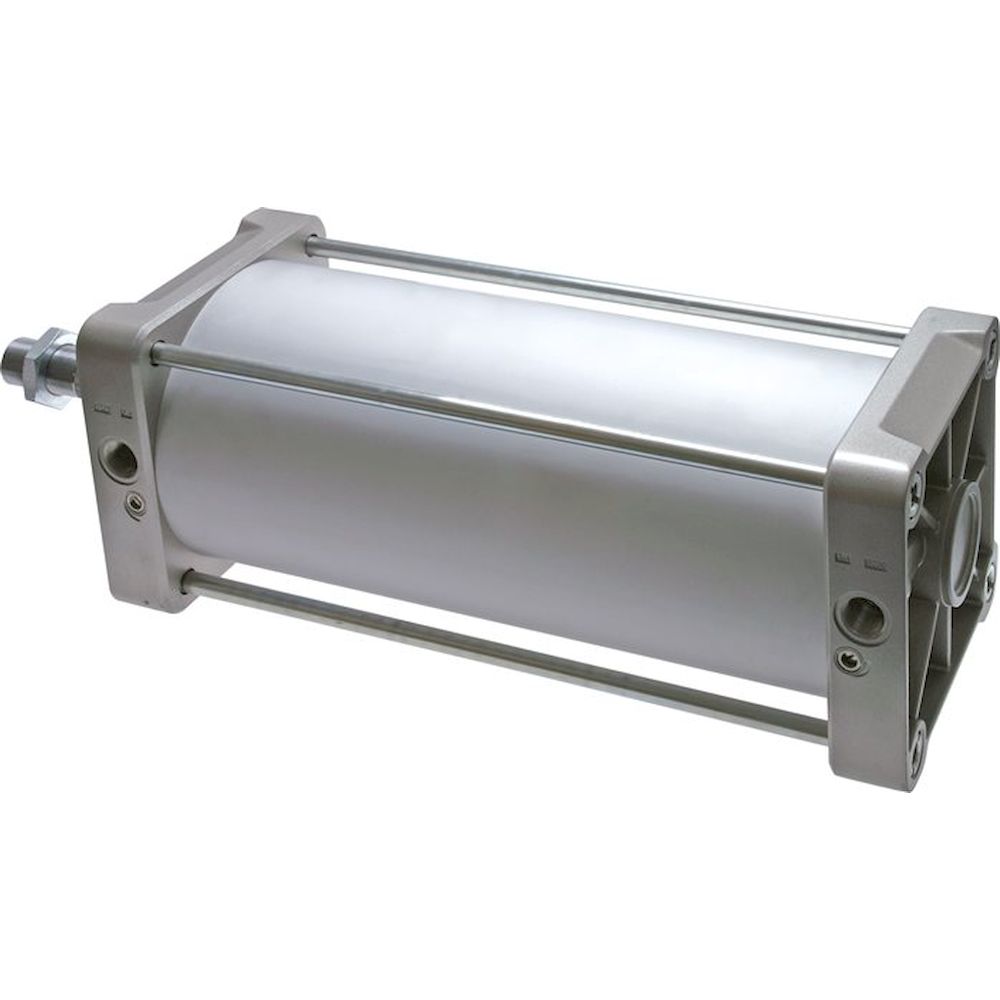

ISO 15552 cylinders, piston 250 mm, stroke 1250 mm, ECO
€4,750.90
Excl. 19% VAT , excl. Shipping Cost
ISO 15552 cylinders, piston 250 mm, stroke 500 mm, ECO
€3,304.63
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2

Piston diameter [mm]	63
Stroke [mm]	200
A (piston rod thread)	M 16x1,5
G (compressed air port)	G 3/8"
Repair sets	XLE 63 REP
B [mm]	20
C [mm]	45
D [mm]	27
F [mm]	32
G [mm]	37
H [mm]	158
K [mm]	4,0
M [mm]	75,0
N [mm]	56,5
CH [mm]	17
RT	M 8
