ISO 15552 cylinders, piston 200 mm, stroke 320 mm, ECO

Name: ISO 15552 cylinders, piston 200 mm, stroke 320 mm, ECO
Brand: Fluidics equipment
SKU: FL-273681
Price: 1034.63 EUR
Availability: InStock

€1,034.63

Excl. 19% VAT , excl. Shipping Cost

Article

FL-273681

Manufacturer Nr.

TM 200/320

ISO 15552 cylinders, piston 200 mm, stroke 320 mm, ECO

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: ISO 15552 cylinders, piston 200 mm, stroke 320 mm, ECO
€1,034.63
Excl. 19% VAT , excl. Shipping Cost
ISO 15552 cylinders, piston 320 mm, stroke 1750 mm, ECO
€10,168.47
Excl. 19% VAT , excl. Shipping Cost

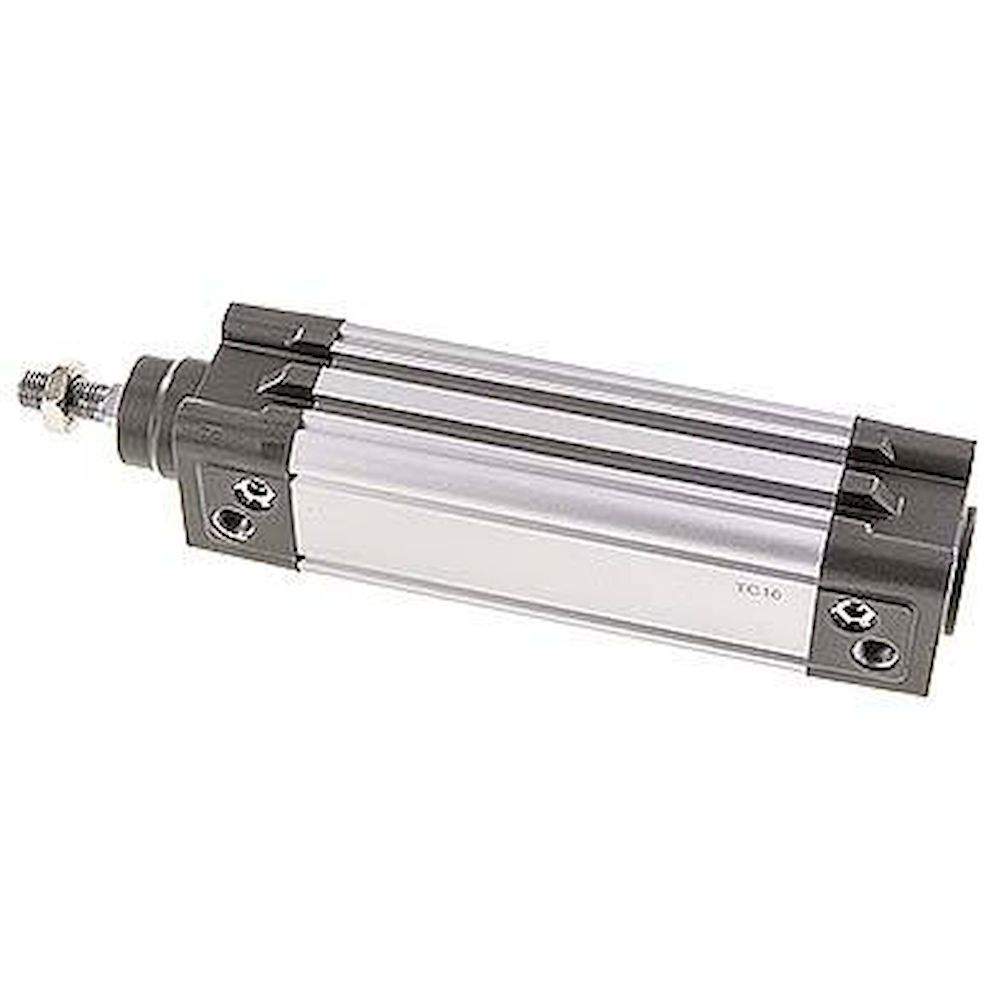

EMC XLE 50/150. ISO 15552 cylinders, piston 50 mm, stroke 150 mm, ECO
€70.55
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2

Piston diameter [mm]	200
Stroke [mm]	320
A (piston rod thread)	M 36x2
G (compressed air port)	G 3/4"
Repair sets	TM 200 REP
B [mm]	40
C [mm]	75
D [mm]	65
F [mm]	72
G [mm]	95
H [mm]	275
K [mm]	6,0
M [mm]	220,0
N [mm]	175,0
CH [mm]	36
RT	M 16

More Information
Manufacturer Nr.	TM 200/320
Manufacturer	Fluidics equipment
EAN	4050571698874
Weight	22.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
