ISO 15552 cylinders, piston 320 mm, stroke 400 mm, ECO

Name: ISO 15552 cylinders, piston 320 mm, stroke 400 mm, ECO
Brand: Fluidics equipment
SKU: FL-273721
Price: 5321.78 EUR
Availability: InStock

€5,321.78

Excl. 19% VAT , excl. Shipping Cost

Article

FL-273721

Manufacturer Nr.

TM 320/400

ISO 15552 cylinders, piston 320 mm, stroke 400 mm, ECO

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: ISO 15552 cylinders, piston 320 mm, stroke 400 mm, ECO
€5,321.78
Excl. 19% VAT , excl. Shipping Cost
ISO 15552 cylinders, piston 250 mm, stroke 320 mm, ECO
€2,983.09
Excl. 19% VAT , excl. Shipping Cost

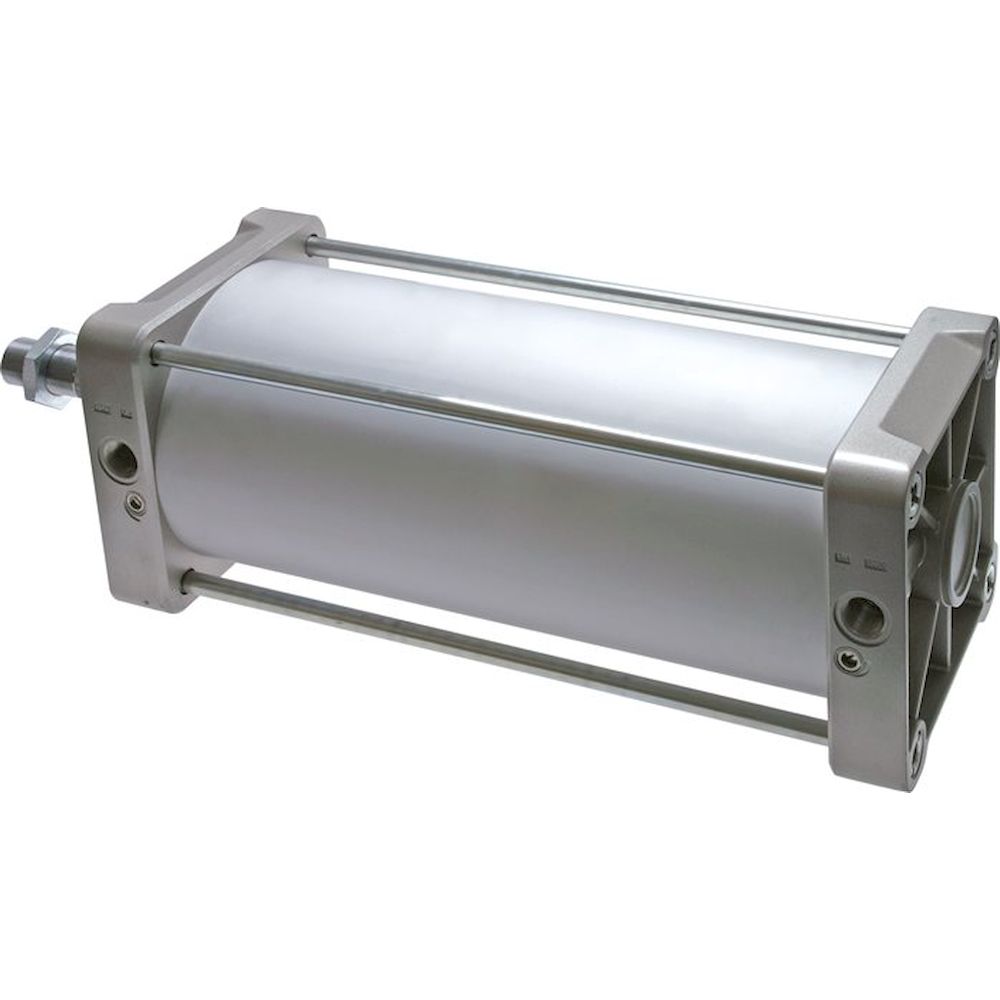

ISO 15552 cylinders, piston 250 mm, stroke 1500 mm, ECO
€5,143.28
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2

Piston diameter [mm]	320
Stroke [mm]	400
A (piston rod thread)	M 48x2
G (compressed air port)	G 1"
Repair sets	TM 320 REP
B [mm]	63
C [mm]	110
D [mm]	90
F [mm]	96
G [mm]	120
H [mm]	340
K [mm]	10,0
M [mm]	350,0
N [mm]	270,0
CH [mm]	55
RT	M 24

More Information
Manufacturer Nr.	TM 320/400
Manufacturer	Fluidics equipment
EAN	4050571699468
Weight	1.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
