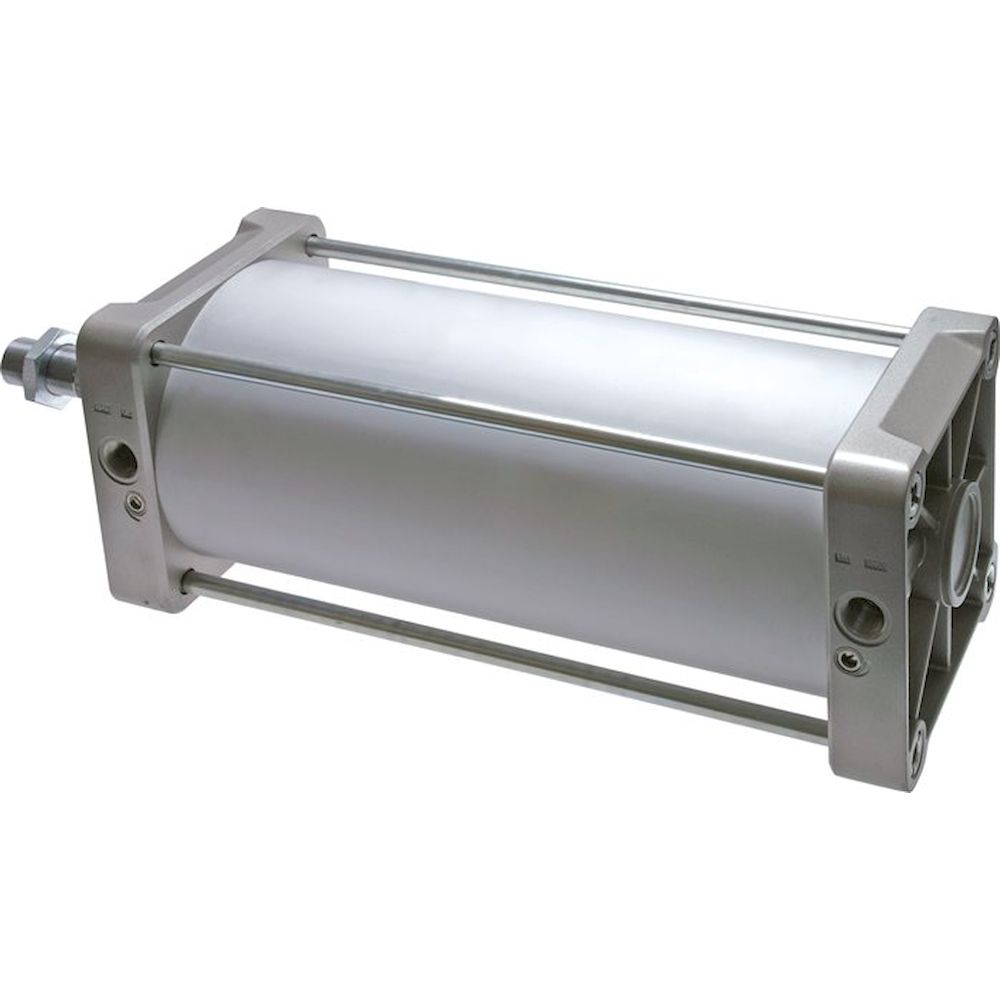

ISO 15552 cylinders, piston 160 mm, stroke 80 mm, ECO

Name: ISO 15552 cylinders, piston 160 mm, stroke 80 mm, ECO
Brand: Fluidics equipment
SKU: FL-298518
Price: 661.19 EUR
Availability: InStock

€661.19

Excl. 19% VAT , excl. Shipping Cost

Article

FL-298518

Manufacturer Nr.

TM 160/80

ISO 15552 cylinders, piston 160 mm, stroke 80 mm, ECO

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: ISO 15552 cylinders, piston 160 mm, stroke 80 mm, ECO
€661.19
Excl. 19% VAT , excl. Shipping Cost
EMC XLE 100/125. ISO 15552 cylinders, piston 100 mm, stroke 125 mm, ECO
€153.35
Excl. 19% VAT , excl. Shipping Cost

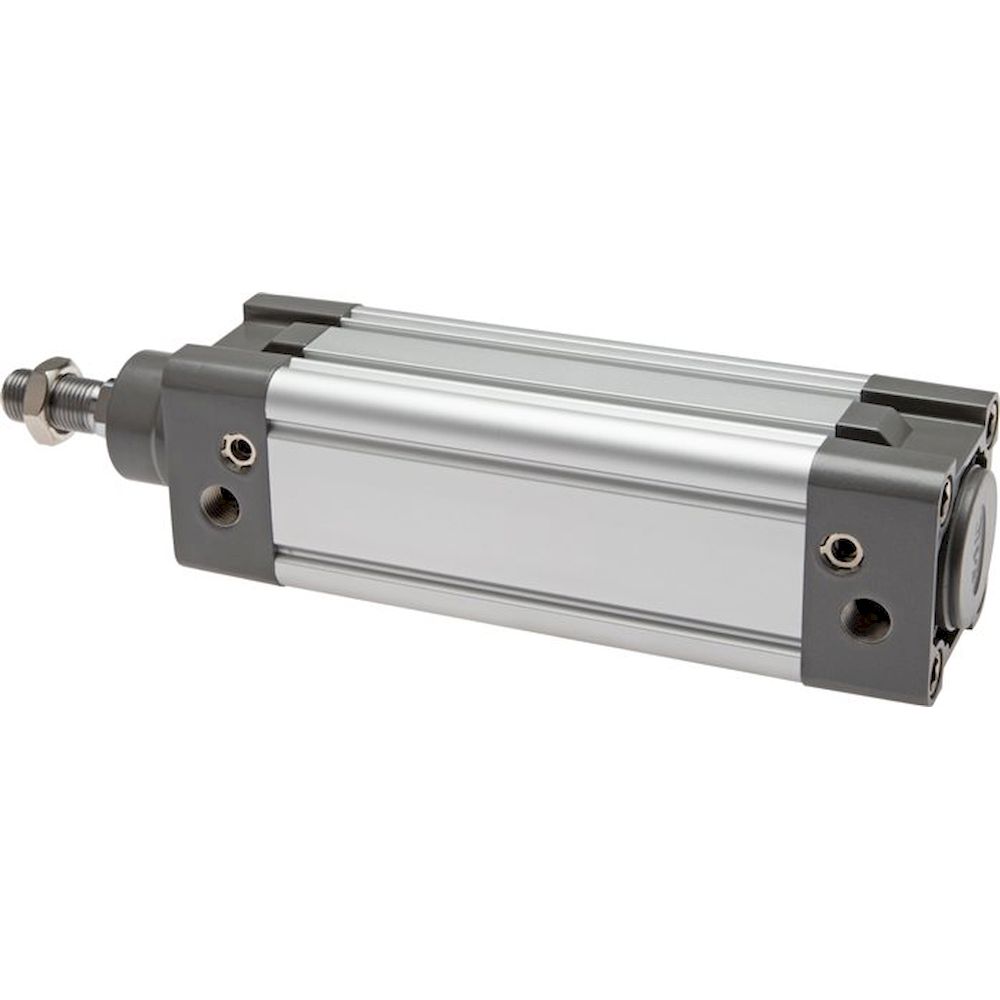

EMC XLE 50/150. ISO 15552 cylinders, piston 50 mm, stroke 150 mm, ECO
€70.55
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2

Piston diameter [mm]	160
Stroke [mm]	80
A (piston rod thread)	M 36x2
G (compressed air port)	G 3/4"
Repair sets	TM 160 REP
B [mm]	40
C [mm]	65
D [mm]	50
F [mm]	72
G [mm]	80
H [mm]	260
K [mm]	6,0
M [mm]	180,0
N [mm]	140,0
CH [mm]	36
RT	M 16

More Information
Manufacturer Nr.	TM 160/80
Manufacturer	Fluidics equipment
EAN	4050571698720
Weight	13.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
