ISO 15552 cylinders, piston 320 mm, stroke 200 mm, ECO

Name: ISO 15552 cylinders, piston 320 mm, stroke 200 mm, ECO
Brand: Fluidics equipment
SKU: FL-273718
Price: 4593.4 EUR
Availability: InStock

€4,593.40

Excl. 19% VAT , excl. Shipping Cost

Article

FL-273718

Manufacturer Nr.

TM 320/200

ISO 15552 cylinders, piston 320 mm, stroke 200 mm, ECO

Skip to the end of the images gallery

Skip to the beginning of the images gallery

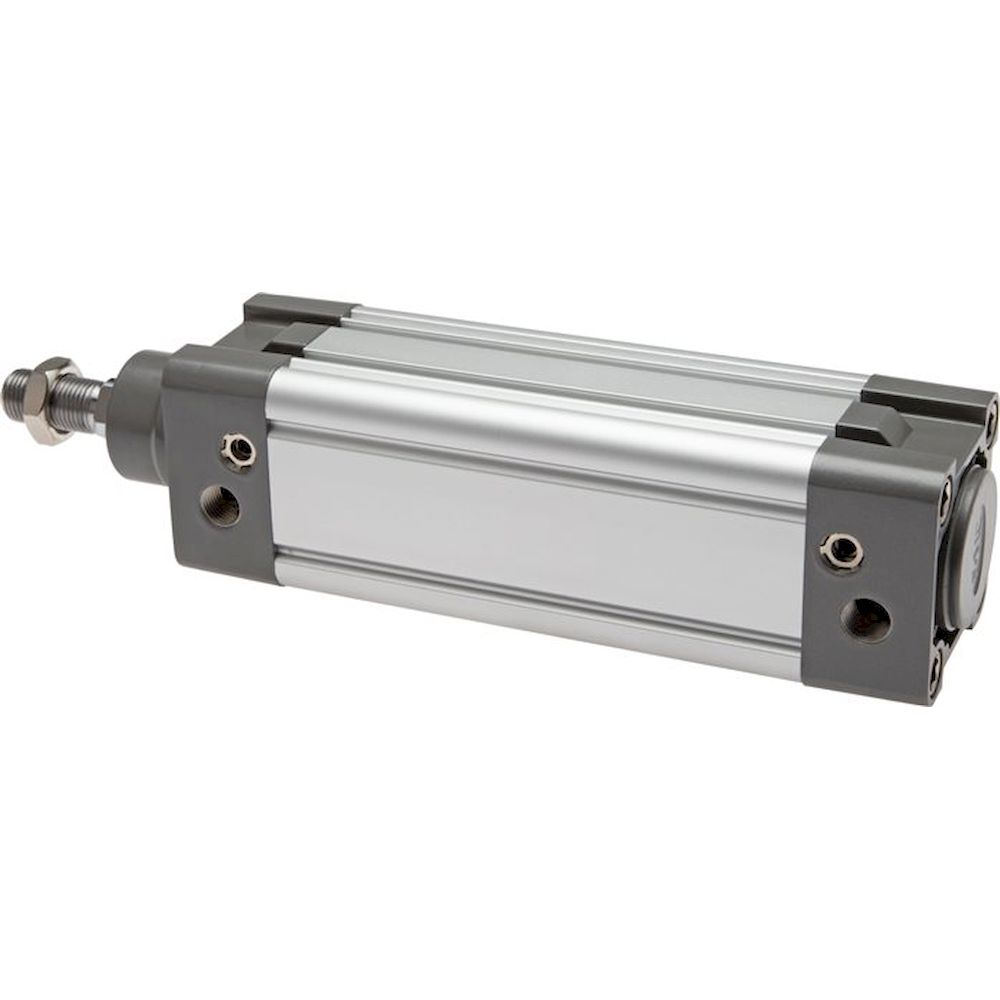

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: ISO 15552 cylinders, piston 320 mm, stroke 200 mm, ECO
€4,593.40
Excl. 19% VAT , excl. Shipping Cost
EMC XLE 32/50. ISO 15552 cylinders, piston 32 mm, stroke 50 mm, ECO
€46.31
Excl. 19% VAT , excl. Shipping Cost
ISO 15552 cylinders, piston 250 mm, stroke 320 mm, ECO
€2,983.09
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2

Piston diameter [mm]	320
Stroke [mm]	200
A (piston rod thread)	M 48x2
G (compressed air port)	G 1"
Repair sets	TM 320 REP
B [mm]	63
C [mm]	110
D [mm]	90
F [mm]	96
G [mm]	120
H [mm]	340
K [mm]	10,0
M [mm]	350,0
N [mm]	270,0
CH [mm]	55
RT	M 24

More Information
Manufacturer Nr.	TM 320/200
Manufacturer	Fluidics equipment
EAN	4050571699406
Weight	1.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
