SV-18-V. Quick exhaust valve G 1/8", Standard with FKM seal
€17.25
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SV-18-V
Manufacturer Nr.
SV 18-V
Quick exhaust valve G 1/8", Standard with FKM seal
Frequently Bought Together
-
This Item:
€17.25Excl. 19% VAT , excl. Shipping Cost
-
SV-12-MEMBRANE-V. Quick exhaust valve , Spare diaphragm (FKM)
€10.34Excl. 19% VAT , excl. Shipping Cost
-

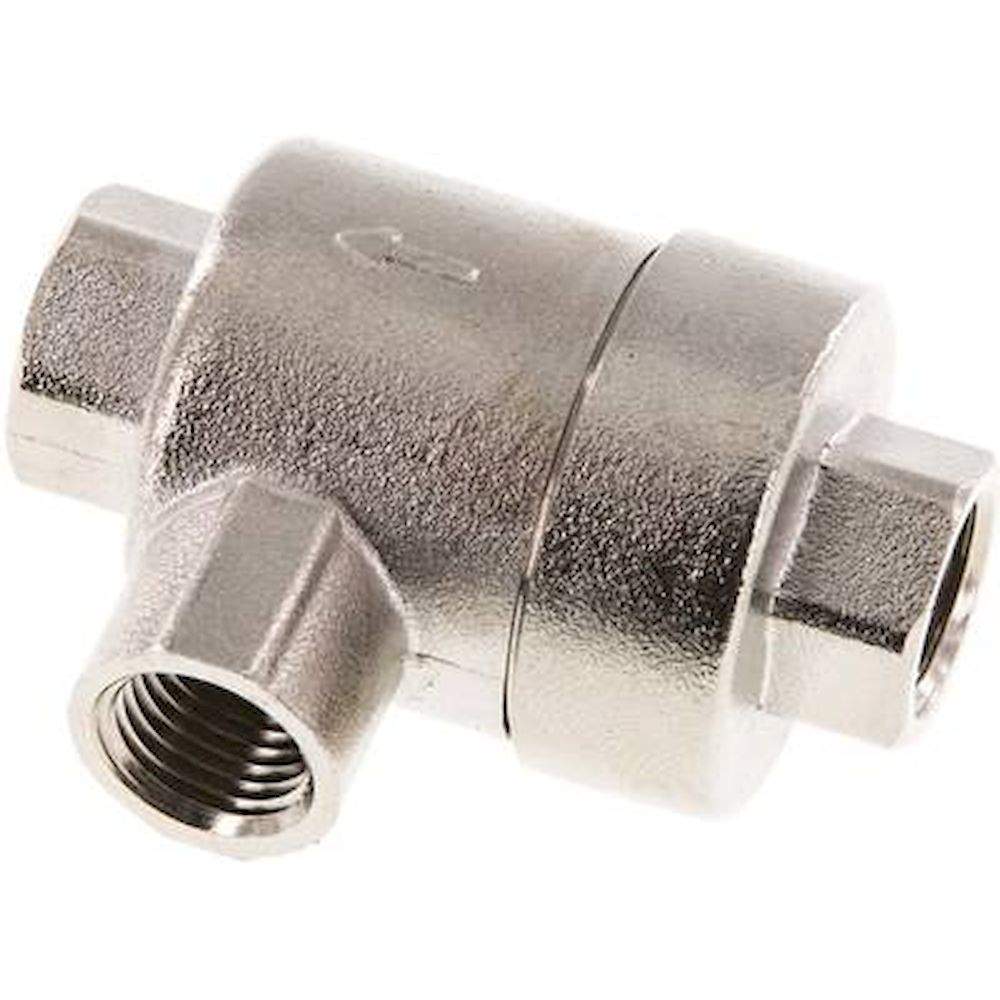

SV-14-V. Quick exhaust valve G 1/4", Standard with FKM seal
€19.21Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Precision model: Body: Aluminium anodized, Seals: NBR, standard versions: Body: Nickel-plated brass, seals: NBR/polyurethane
Media:
oiled and unoiled filtered compressed air
Function:
These valves are used to vent the cylinders quickly and enhance the cylinder speed. For this, they are screwed directly on the cylinder using the connection 2. Breathing: The air flowing through the control valve can flow continuously from connection 1 to the connection 2. Venting: When the control valve switches over to venting, 1 becomes depressurized. The valve switches to flow from 2 to 3 and the air from the cylinder can be freely vented into the open.
Warning:
Only for use in cylinders where there is sufficient end position damping (adjustable cushion, shock absorber). When using a silencer in connection 3, this must be large enough to avoid dynamic pressure.
Precision model: Body: Aluminium anodized, Seals: NBR, standard versions: Body: Nickel-plated brass, seals: NBR/polyurethane
Media:
oiled and unoiled filtered compressed air
Function:
These valves are used to vent the cylinders quickly and enhance the cylinder speed. For this, they are screwed directly on the cylinder using the connection 2. Breathing: The air flowing through the control valve can flow continuously from connection 1 to the connection 2. Venting: When the control valve switches over to venting, 1 becomes depressurized. The valve switches to flow from 2 to 3 and the air from the cylinder can be freely vented into the open.
Warning:
Only for use in cylinders where there is sufficient end position damping (adjustable cushion, shock absorber). When using a silencer in connection 3, this must be large enough to avoid dynamic pressure.
| Manufacturer Nr. | SV 18-V |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571664282 |
| Weight | 0.105000 |
| HS-Code | 84799070 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Airtec SU-25-310. Signal interrupter M 5, Series Precision
€50.03
Excl. 19% VAT ,
excl. Shipping Cost

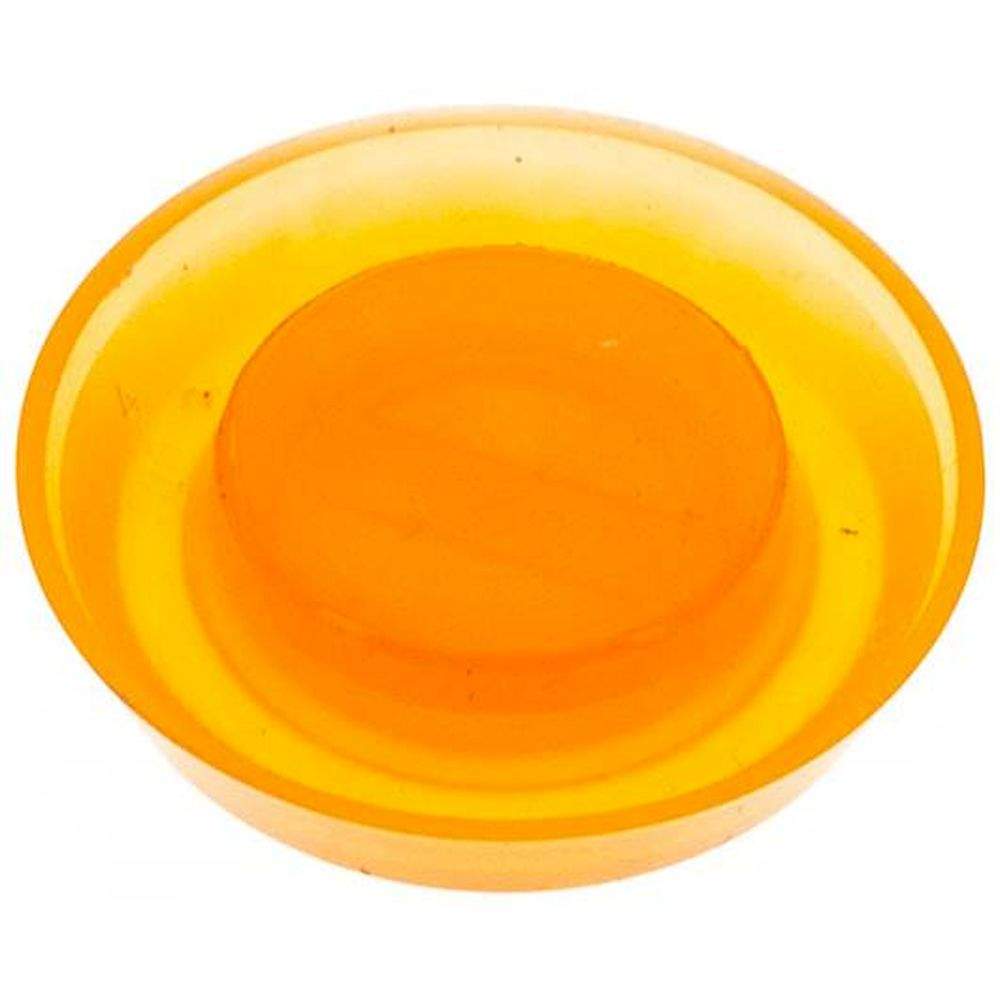

SV-1438-MEMBRANE. Quick exhaust valve , Spare diaphragm (standard)
€1.65
Excl. 19% VAT ,
excl. Shipping Cost

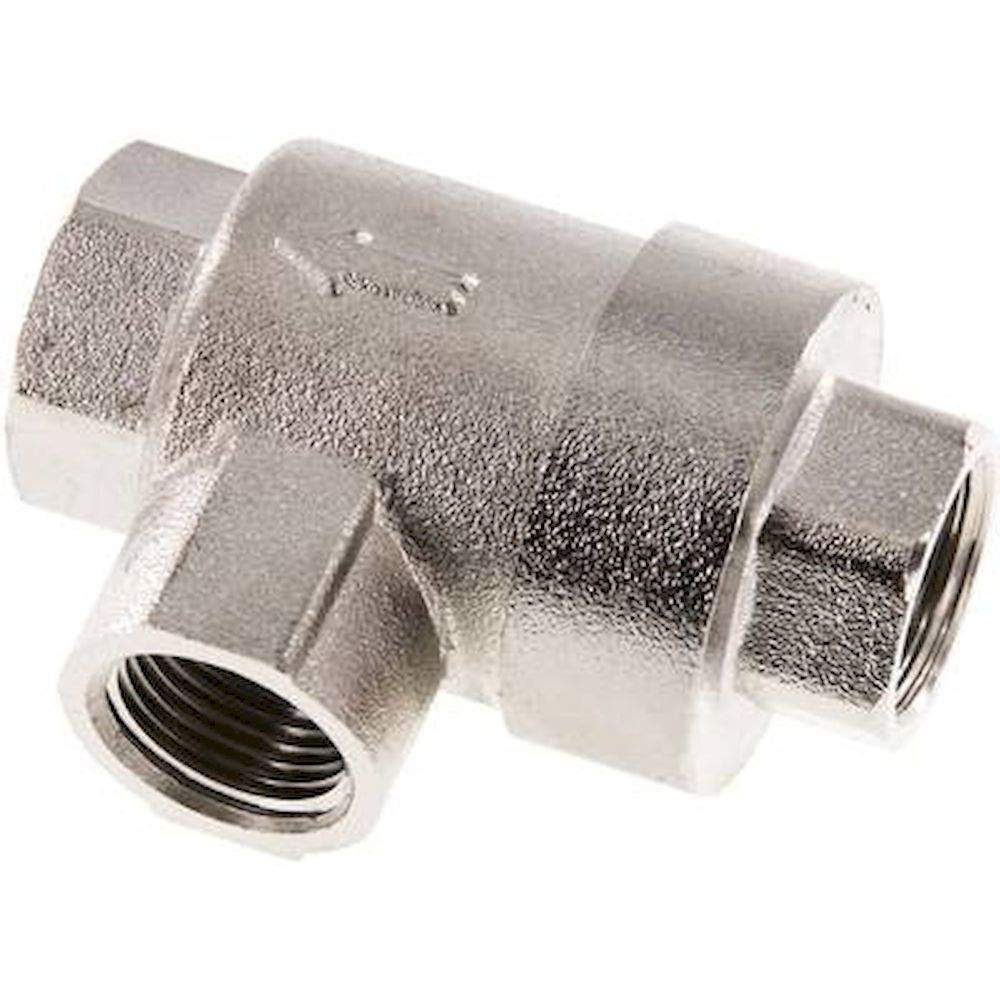

SV-38-V. Quick exhaust valve G 3/8", Standard with FKM seal
