RSV-14/RS6. Air saving valve R 1/4"-8x6mm

Materials:
Body: Aluminium anodised and galvanised steel, seals: NBR

Temperature range:
-10°C to +70°C

Operating pressure:
1 to 16 bar

Pressure regulation range:
1 to 8 bar

Media:
oiled and unlubricated, filtered compressed air, neutral and non-hazardous gases

Function:

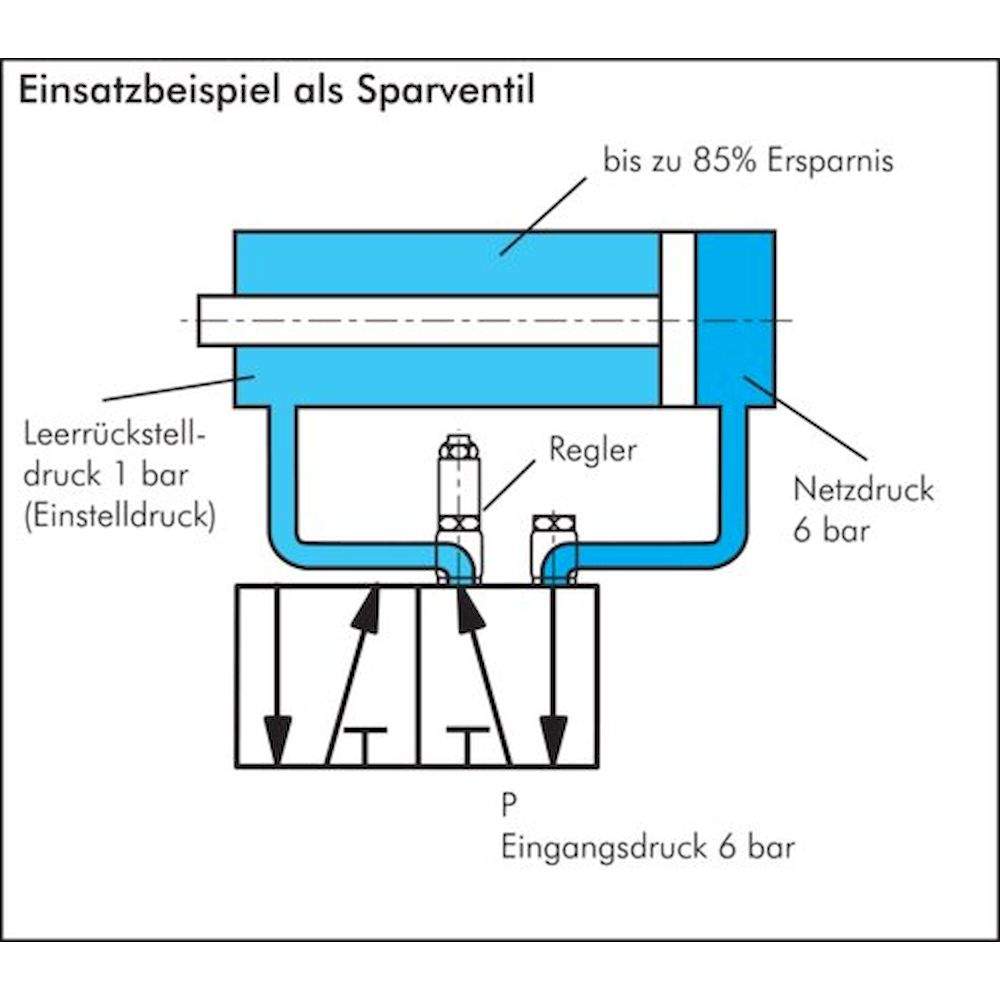

•In many applications, the working pressure is only required in one direction. Consequently, significant air can be saved by reducing the reset pressure.
•The configured pressure also remains constant when the input pressure drops.
•If the primary pressure builds up from the thread side, the configured pressure will escape on the connection side. The compressed air can flow through a bypass in the opposing direction without a throttle. The pressure regulator can also be inserted behind a valve.
