Airtec NXDA 16/80. Compact cylinders, double acting, piston 16 mm, stroke 80 mm
€84.10
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NXDA-16/80
Manufacturer Nr.
NXDA 16/80
Compact cylinders, double acting, piston 16 mm, stroke 80 mm
Frequently Bought Together
-
This Item:
€84.10Excl. 19% VAT , excl. Shipping Cost
-

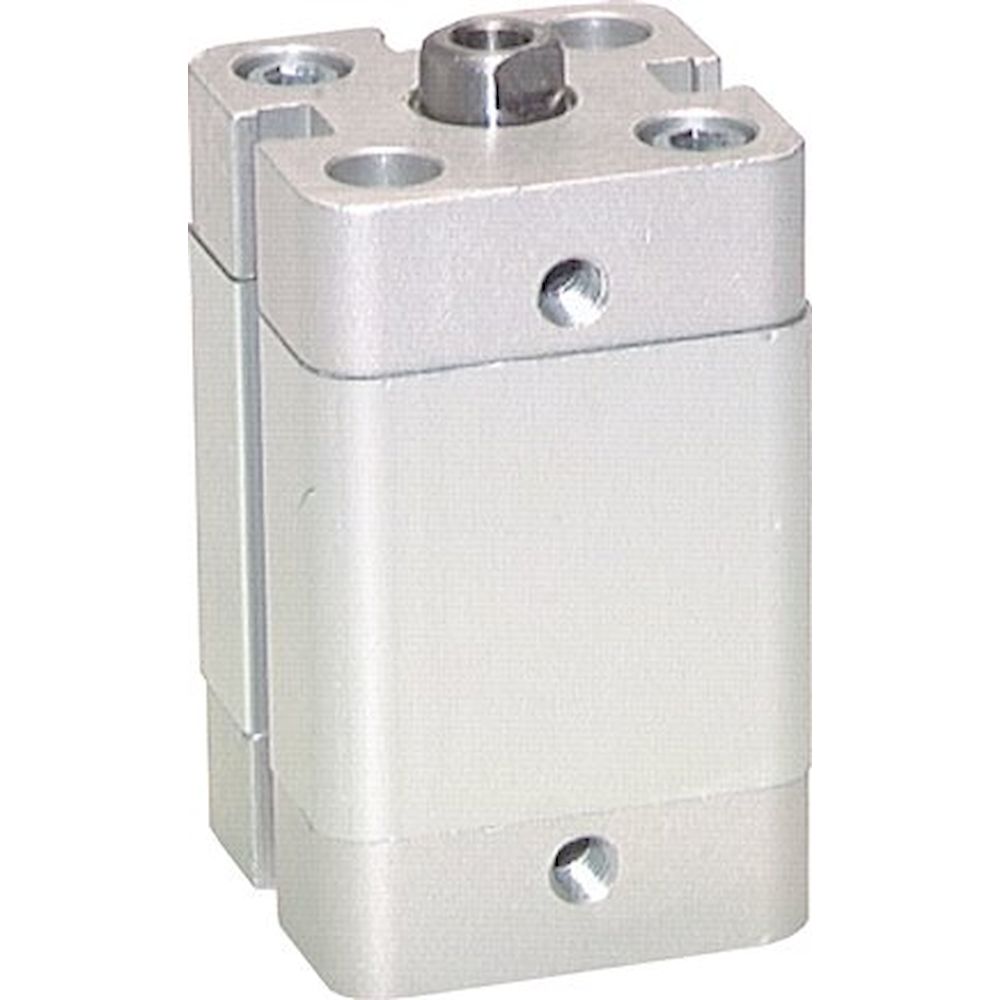

Airtec NXD 100/40. Compact cylinders, double acting, piston 100 mm, stroke 40 mm
€190.62Excl. 19% VAT , excl. Shipping Cost
-

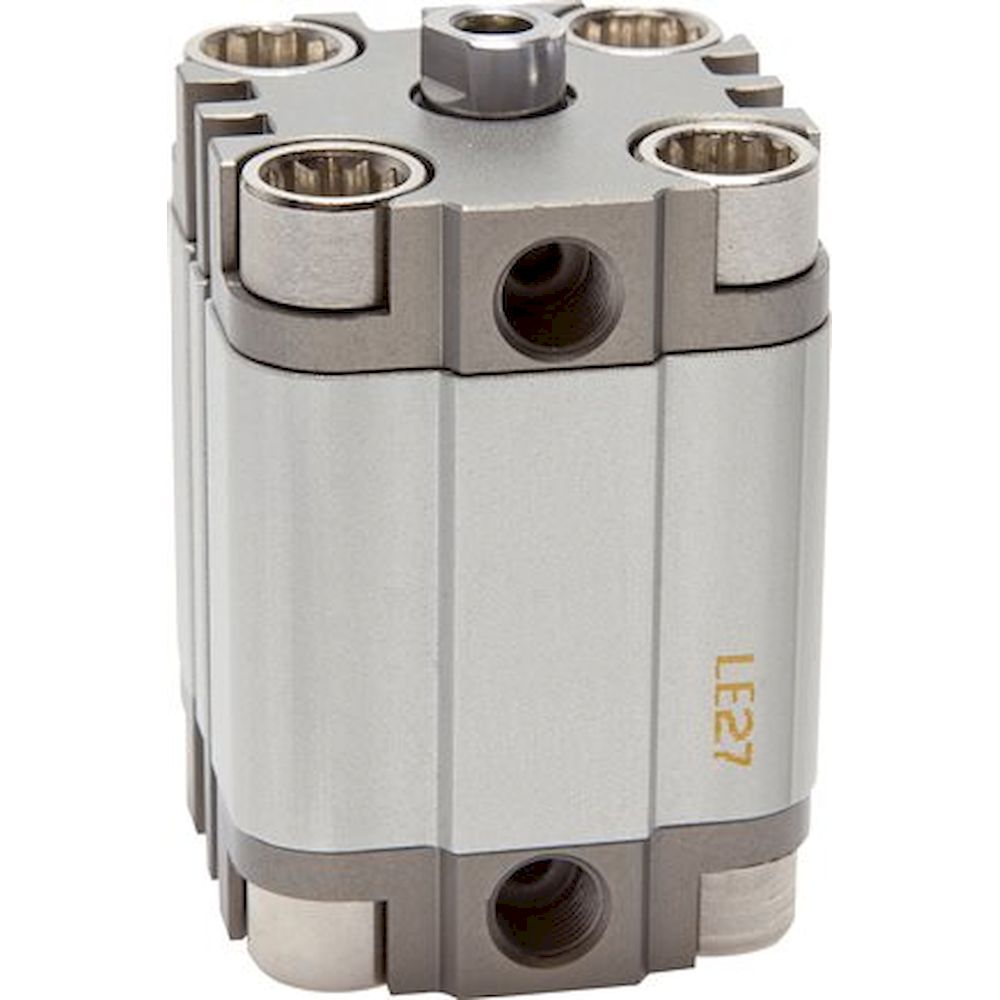

EMC SES 20 REP. Reparatursatz für SES-Zylinder 20mm
€5.70Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 16 |
| Stroke [mm] | 80 |
| Version | non-rotating piston rod |
| M (compressed air port) | M 5 |
| Repair sets | NXD 16 REP |
| A [mm] | 29 |
| B [mm] | 8 |
| C [mm] | 6 |
| D [mm] | 3,3 |
| E | M 4 |
| F [mm] | 6,0 |
| G [mm] | 9 |
| H [mm] | 5 |
| I | M 3 |
| J [mm] | 38,0 |
| K [mm] | 3 |
| L [mm] | 0 |
| N [mm] | 8,0 |
| O [mm] | 12,25 |
| P [mm] | 18 |
| R [mm] | 14 |
| S [mm] | 9,9 |
| T [mm] | 6 |
| U [mm] | 3,5 |
| W [mm] | 3,8 |
| X [mm] | 1,0 |
| Y [mm] | 6 |
| Z [mm] | 4,5 |
| Manufacturer Nr. | NXDA 16/80 |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571530136 |
| Weight | 24.000000 |
| HS-Code | 84799070 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Airtec NXD 25/160. Compact cylinders, double acting, piston 25 mm, stroke 160 mm
€81.70
Excl. 19% VAT ,
excl. Shipping Cost
Airtec NXDA 50/125. Compact cylinders, double acting, piston 50 mm, stroke 125 mm
€186.45
Excl. 19% VAT ,
excl. Shipping Cost

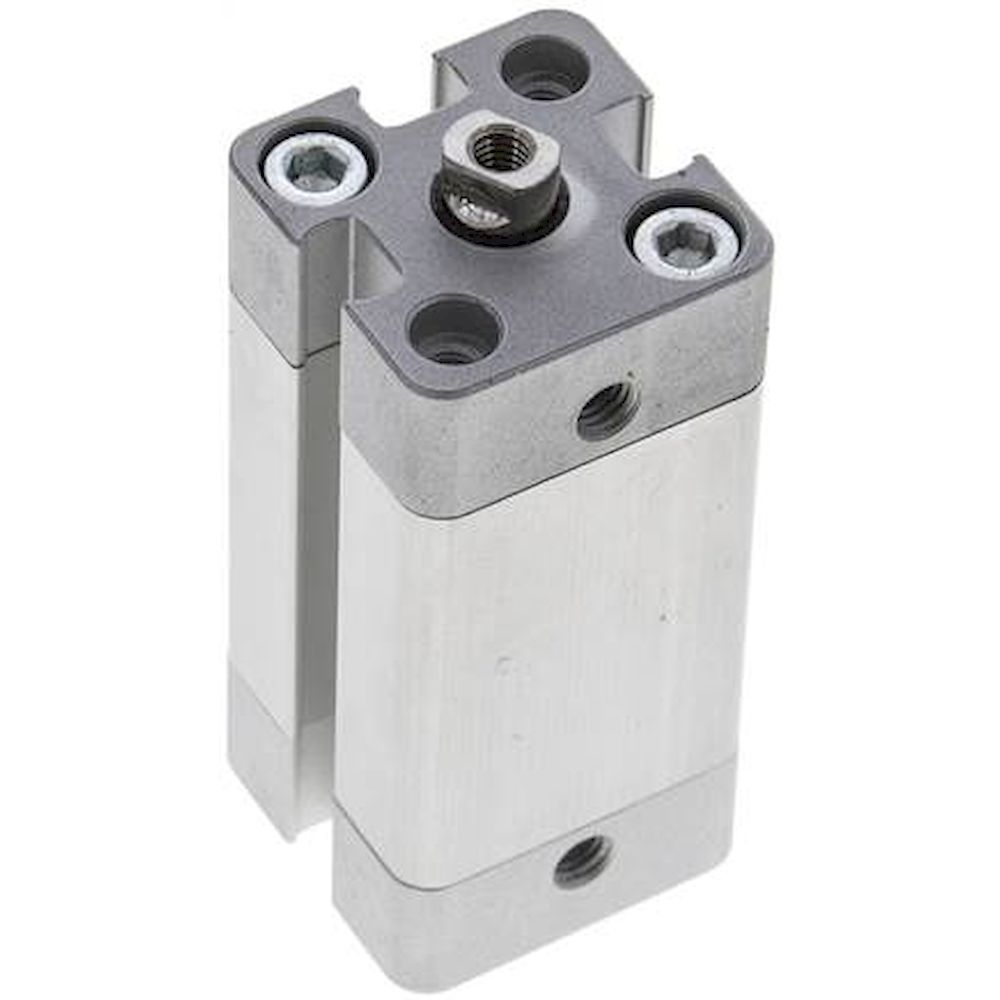

Airtec NXD 16/25. Compact cylinders, double acting, piston 16 mm, stroke 25 mm
€44.07
Excl. 19% VAT ,
excl. Shipping Cost

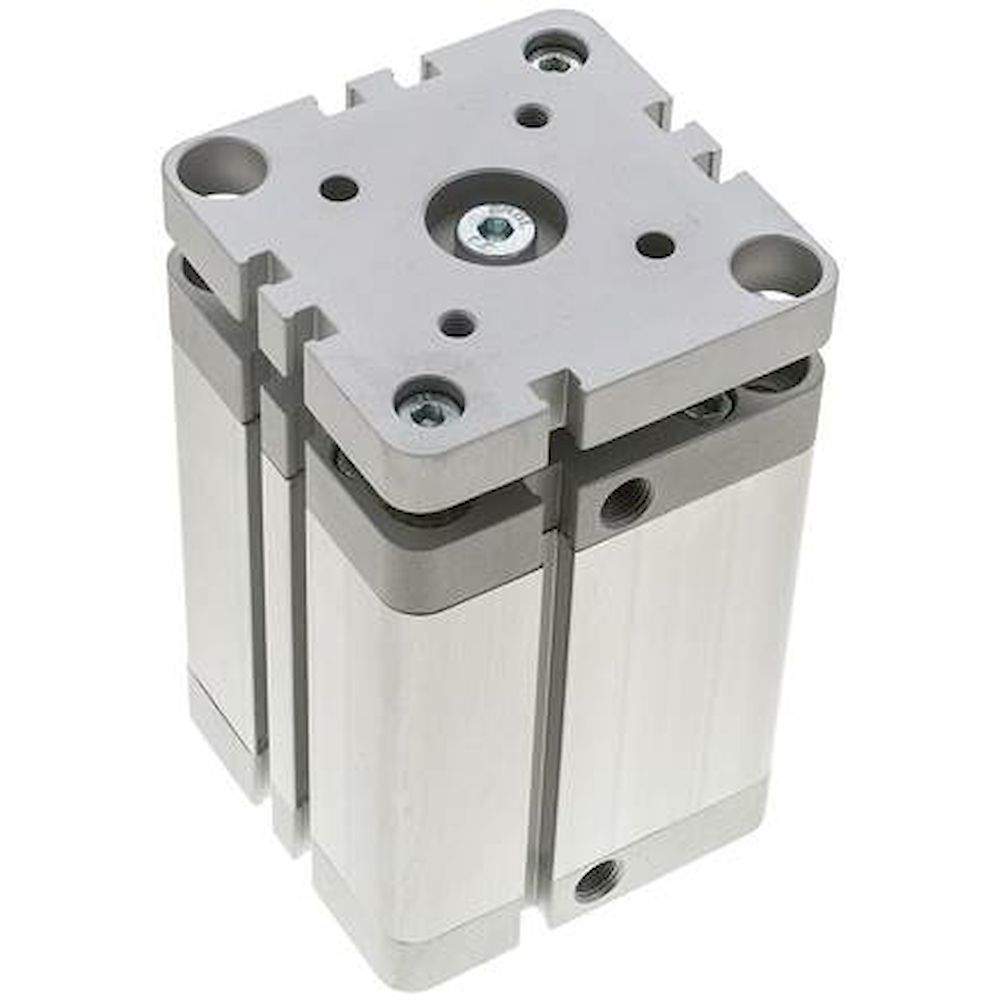

Airtec NXDA 63/60. Compact cylinders, double acting, piston 63 mm, stroke 60 mm
