Airtec NXDA 32/15. Compact cylinders, double acting, piston 32 mm, stroke 15 mm
€91.42
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-NXDA-32/15
Manufacturer Nr.
NXDA 32/15
Compact cylinders, double acting, piston 32 mm, stroke 15 mm
Frequently Bought Together
-
This Item:
€91.42Excl. 19% VAT , excl. Shipping Cost
-
Airtec NXDK 16/10. Compact cylinders, double acting, piston 16 mm, stroke 10 mm
€55.22Excl. 19% VAT , excl. Shipping Cost
-
Airtec NXD 63/15-AG. Compact cylinders, double acting, piston 63 mm, stroke 15 mm
€101.26Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
| Piston diameter [mm] | 32 |
| Stroke [mm] | 15 |
| Version | non-rotating piston rod |
| M (compressed air port) | G 1/8" |
| Repair sets | NXD 32 REP |
| A [mm] | 50 |
| B [mm] | 12 |
| C [mm] | 6 |
| D [mm] | 5,2 |
| E | M 6 |
| F [mm] | 9,0 |
| G [mm] | 17 |
| H [mm] | 8 |
| I | M 5 |
| J [mm] | 44,5 |
| K [mm] | 5 |
| L [mm] | 4 |
| N [mm] | 8,0 |
| O [mm] | 14,50 |
| P [mm] | 32 |
| R [mm] | 28 |
| S [mm] | 19,8 |
| T [mm] | 10 |
| U [mm] | 5,5 |
| W [mm] | 6,5 |
| X [mm] | 2,5 |
| Y [mm] | 10 |
| Z [mm] | 6,0 |
| Manufacturer Nr. | NXDA 32/15 |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571530488 |
| Weight | 38.000000 |
| HS-Code | 84799070 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

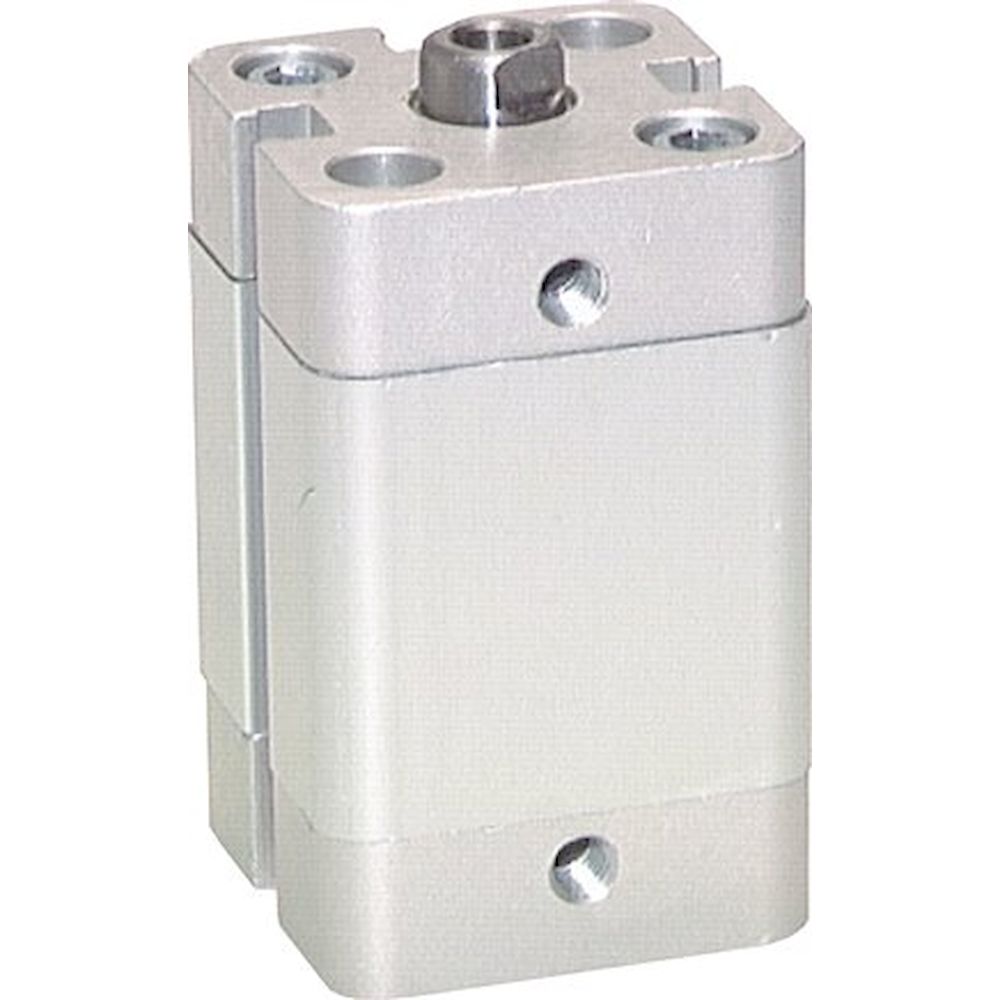

Airtec NXDK 12/10. Compact cylinders, double acting, piston 12 mm, stroke 10 mm
