Airtec NE 63/15 M10. Short-stroke cylinders, single acting, piston 63 mm, stroke 15 mm

Name: Airtec NE 63/15 M10. Short-stroke cylinders, single acting, piston 63 mm, stroke 15 mm
Brand: Airtec
SKU: FL-NE-63/15-M10
Price: 78.57 EUR
Availability: InStock

€78.57

Excl. 19% VAT , excl. Shipping Cost

Article

FL-NE-63/15-M10

Manufacturer Nr.

NE 63/15 M10

Short-stroke cylinders, single acting, piston 63 mm, stroke 15 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

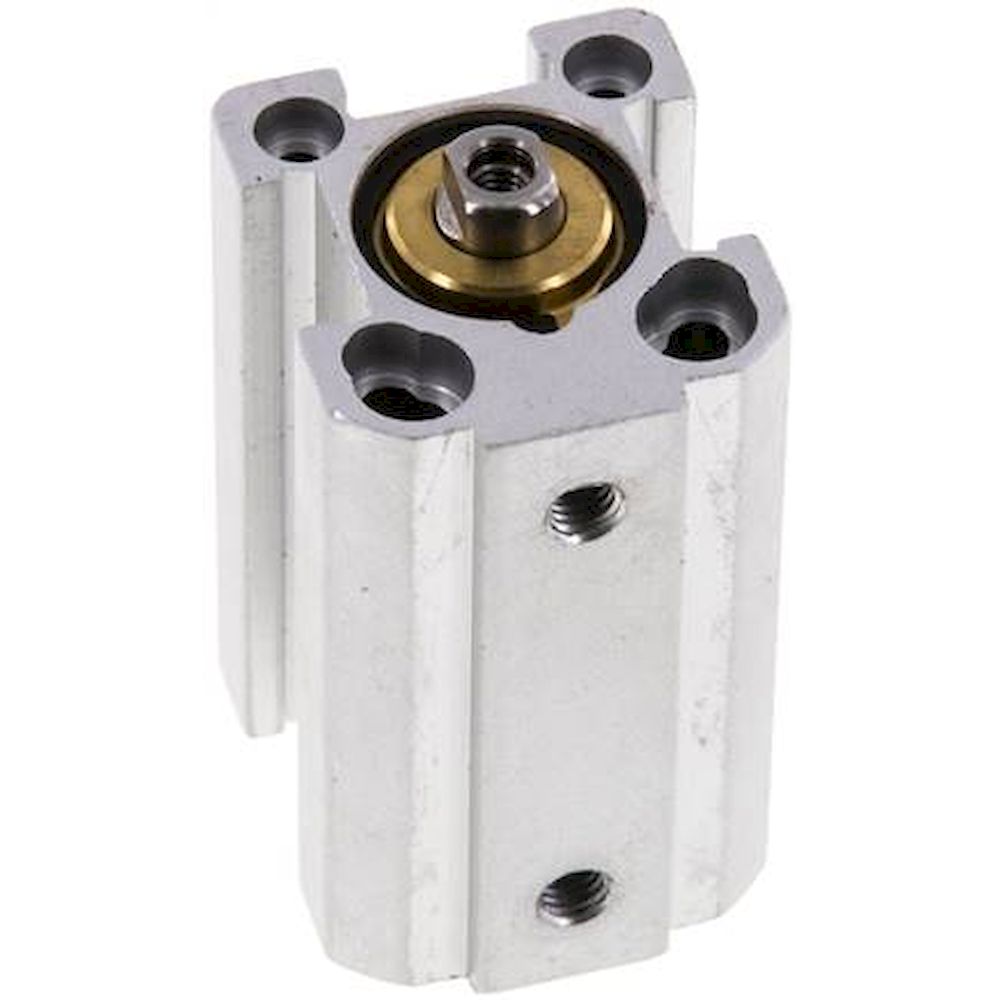

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Airtec NE 63/15 M10. Short-stroke cylinders, single acting, piston 63 mm, stroke 15 mm
€78.57
Excl. 19% VAT , excl. Shipping Cost

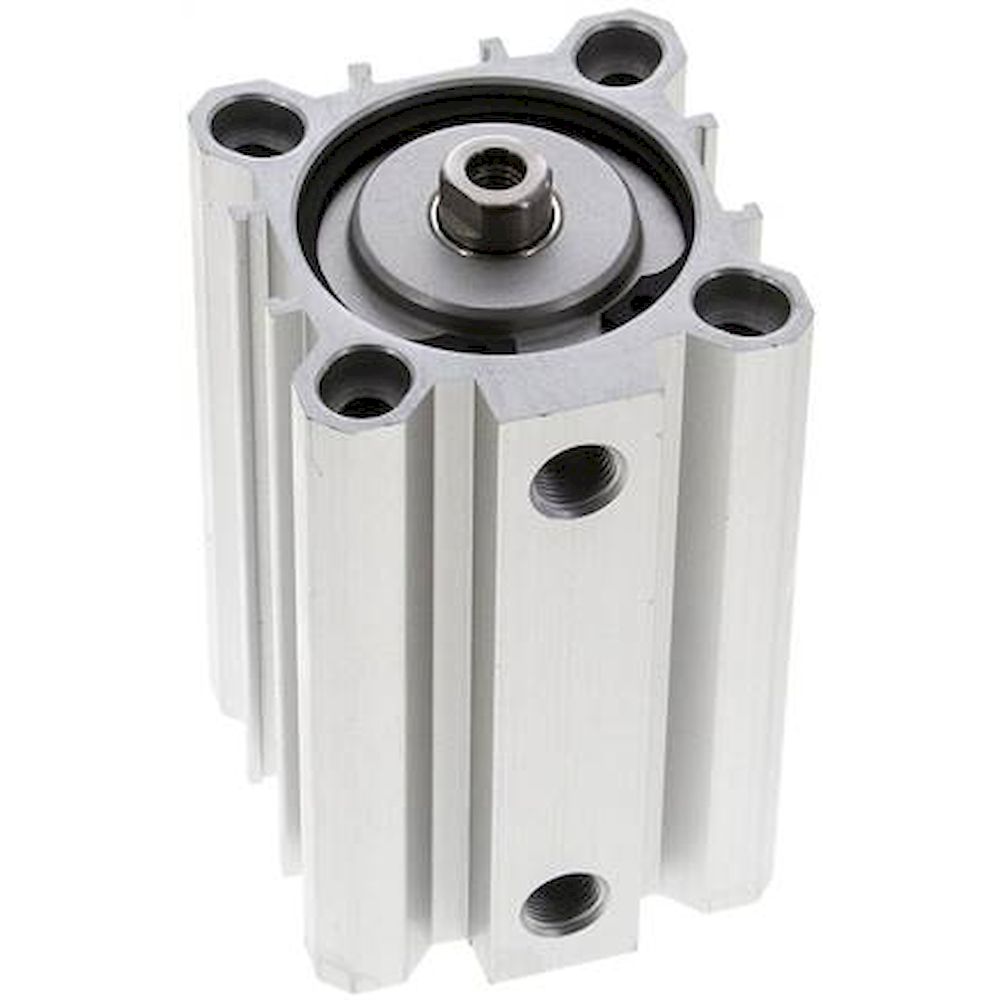

Short-stroke cylinders, single acting, piston 40 mm, stroke 50 mm
€102.16
Excl. 19% VAT , excl. Shipping Cost

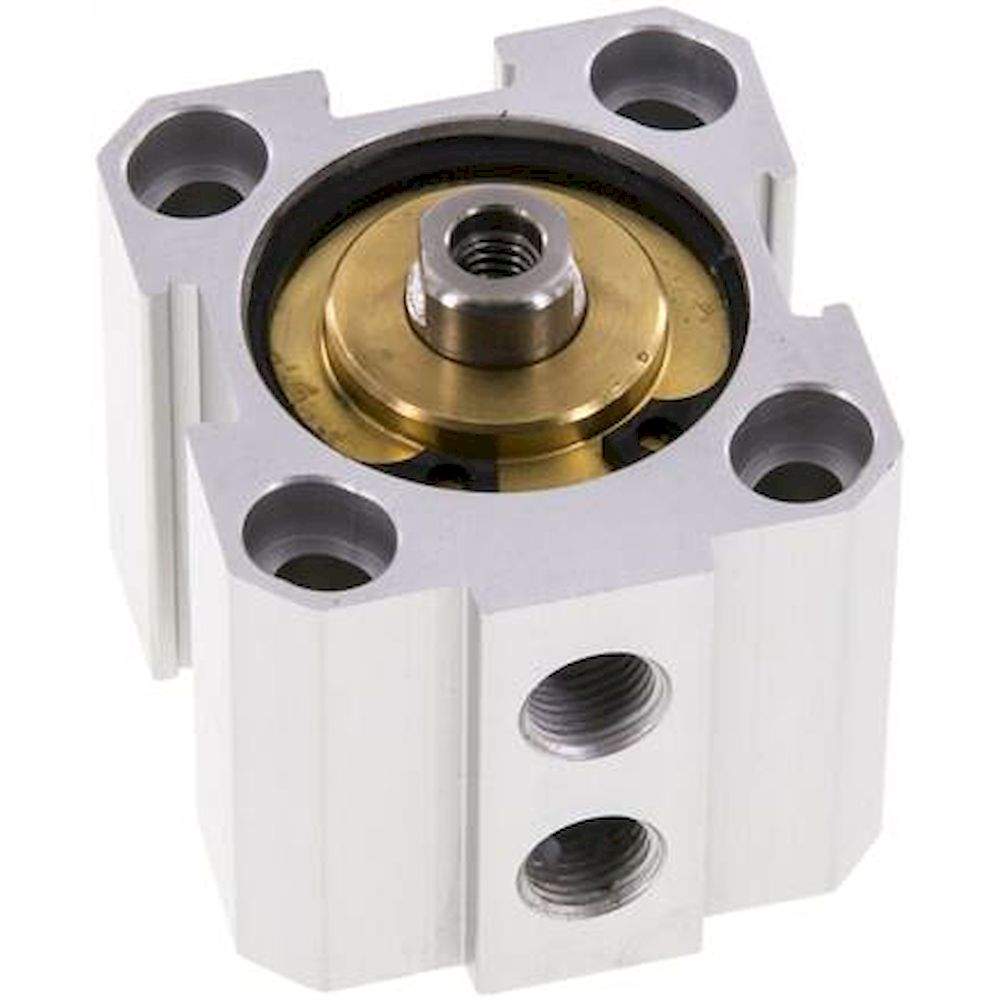

Short-stroke cylinders, single acting, piston 32 mm, stroke 10 mm
€64.36
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Cylinder switch type:
G

Piston diameter [mm]	63
Stroke [mm]	15
Version	without magnetic piston
C1 (piston rod thread)	M 10
P (compressed air port)	G 1/8"
A [mm]	86,0
B [mm]	80
D [mm]	16
F [mm]	9,0
G [mm]	14,0
H [mm]	46,0
I [mm]	62
J [mm]	11,0
K [mm]	62,0
L [mm]	37,0
N [mm]	60,0
Q [mm]	8,8
S [mm]	80,0
T [mm]	14
V [mm]	13
W [mm]	7,0
X [mm]	50
Y [mm]	22
Z [mm]	30
AA [mm]	15,0
AB [mm]	12

More Information
Manufacturer Nr.	NE 63/15 M10
Manufacturer	Airtec
EAN	4050571525545
Weight	6.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
