Short-stroke cylinders, single acting, piston 32 mm, stroke 15 mm

Name: Short-stroke cylinders, single acting, piston 32 mm, stroke 15 mm
Brand: Fluidics equipment
SKU: FL-256009
Price: 67.59 EUR
Availability: InStock

€67.59

Excl. 19% VAT , excl. Shipping Cost

Article

FL-256009

Manufacturer Nr.

NE 32/15

Short-stroke cylinders, single acting, piston 32 mm, stroke 15 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Short-stroke cylinders, single acting, piston 32 mm, stroke 15 mm
€67.59
Excl. 19% VAT , excl. Shipping Cost

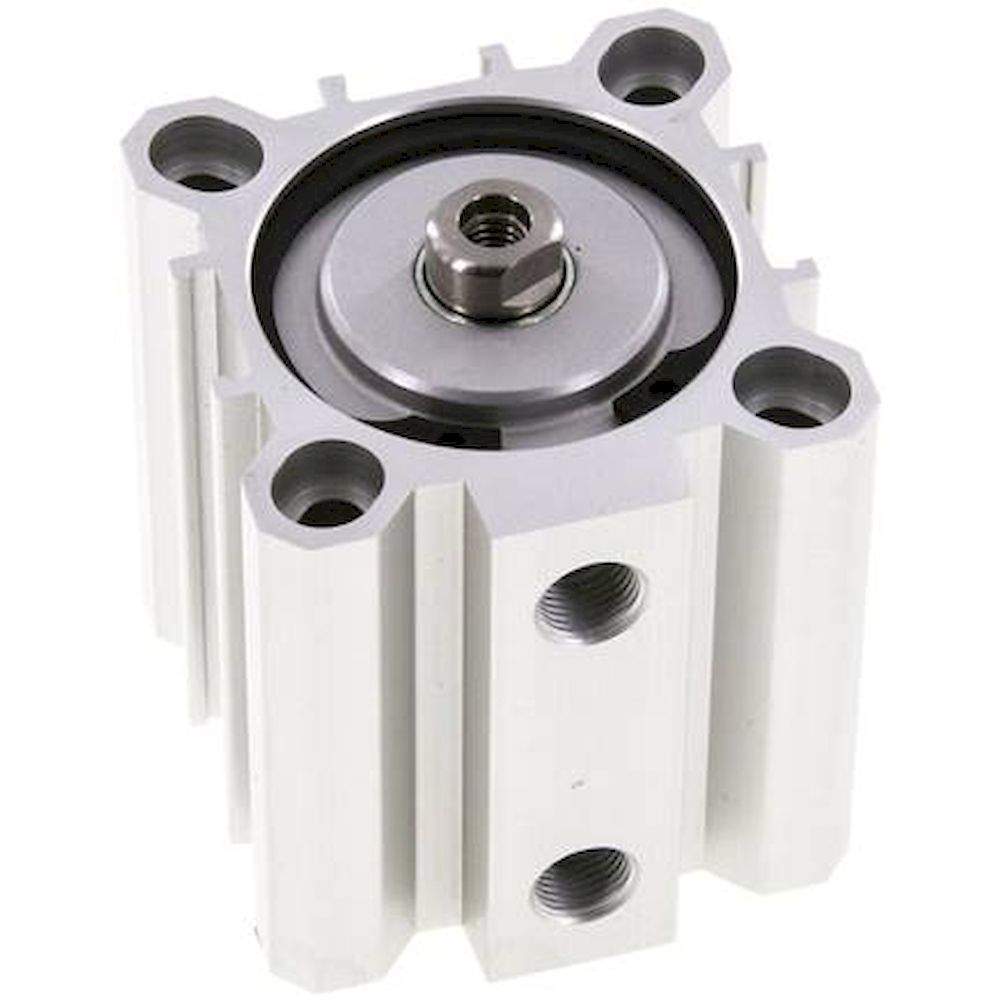

Short-stroke cylinders, single acting, piston 40 mm, stroke 30 mm
€92.08
Excl. 19% VAT , excl. Shipping Cost
Short-stroke cylinders, single acting, piston 80 mm, stroke 10 mm
€202.61
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Cylinder switch type:
G

Piston diameter [mm]	32
Stroke [mm]	15
Version	without magnetic piston
C1 (piston rod thread)	M 6
P (compressed air port)	G 1/8"
A [mm]	51,0
B [mm]	46
D [mm]	12
F [mm]	5,8
G [mm]	9,0
H [mm]	27,0
I [mm]	32
J [mm]	11,5
K [mm]	36,0
L [mm]	29,5
N [mm]	34,0
Q [mm]	5,7
S [mm]	48,0
T [mm]	12
V [mm]	10
W [mm]	6,0
X [mm]	28
Y [mm]	17
Z [mm]	20
AA [mm]	11,0
AB [mm]	10

More Information
Manufacturer Nr.	NE 32/15
Manufacturer	Fluidics equipment
EAN	4050571525309
Weight	22.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
