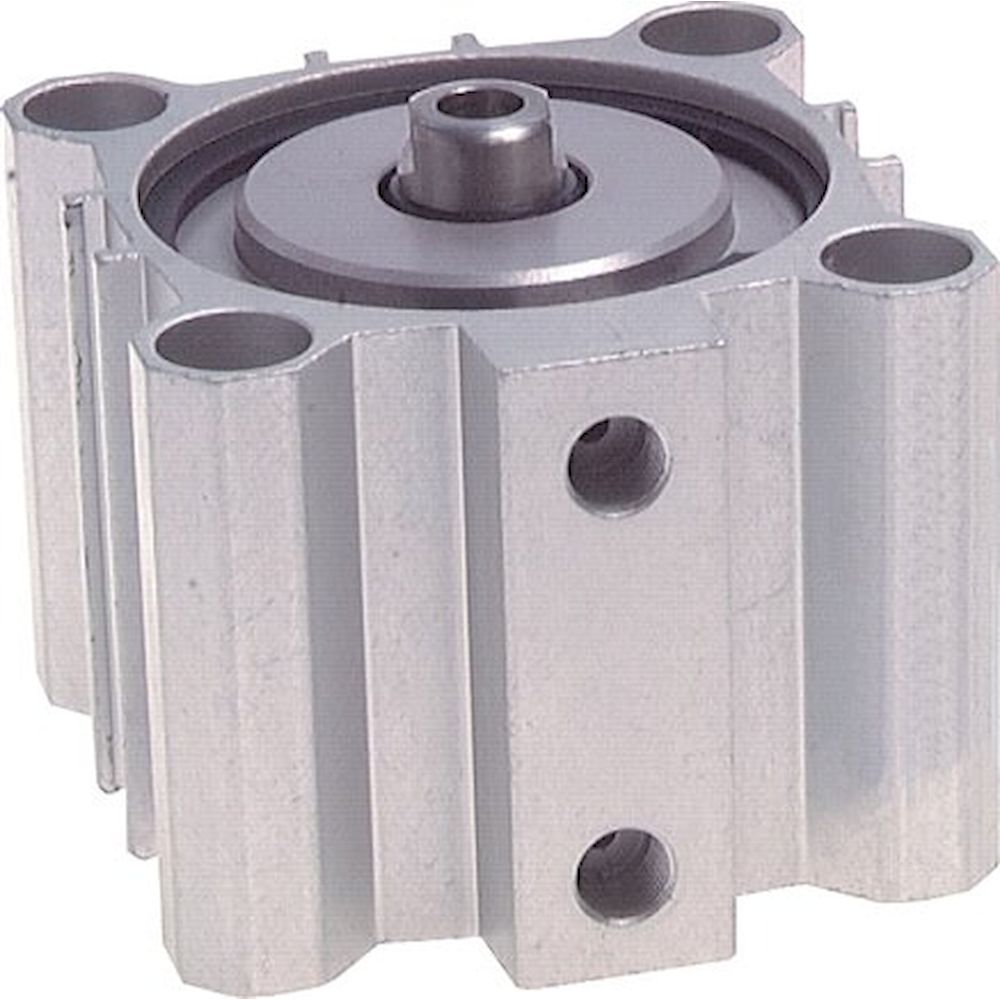

Short-stroke cylinders, double acting, piston 63 mm, stroke 80 mm

Name: Short-stroke cylinders, double acting, piston 63 mm, stroke 80 mm
Brand: Fluidics equipment
SKU: FL-228552
Price: 153.92 EUR
Availability: InStock

€153.92

Excl. 19% VAT , excl. Shipping Cost

Article

FL-228552

Manufacturer Nr.

ND 63/80

Short-stroke cylinders, double acting, piston 63 mm, stroke 80 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Short-stroke cylinders, double acting, piston 63 mm, stroke 80 mm
€153.92
Excl. 19% VAT , excl. Shipping Cost
Short-stroke cylinders, double acting, piston 32 mm, stroke 40 mm
€76.72
Excl. 19% VAT , excl. Shipping Cost
Short-stroke cylinders, double acting, piston 80 mm, stroke 20 mm
€205.21
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Cylinder switch type:
G

Piston diameter [mm]	63
Stroke [mm]	80
Version	without magnetic piston
C1 (piston rod thread)	M 8
P (compressed air port)	G 1/8"
Repair sets	ND 63 REP
A [mm]	86,0
B [mm]	80
D [mm]	16
F [mm]	9,0
G [mm]	14,0
H [mm]	46,0
I [mm]	62
J [mm]	11,0
K [mm]	62,0
L [mm]	37,0
N [mm]	60,0
Q [mm]	8,8
S [mm]	80,0
T [mm]	14
V [mm]	13
W [mm]	7,0
X [mm]	50
Y [mm]	22
Z [mm]	30
AA [mm]	15,0
AB [mm]	12

More Information
Manufacturer Nr.	ND 63/80
Manufacturer	Fluidics equipment
EAN	4050571523558
Weight	11.000000
HS-Code	84799070
Article authenticity	Original product
Condition of article	New
