Short-stroke cylinders, double acting, piston 63 mm, stroke 30 mm
€135.48
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-036516
Manufacturer Nr.
ND 63/30
Short-stroke cylinders, double acting, piston 63 mm, stroke 30 mm
Frequently Bought Together
-
This Item:
€135.48Excl. 19% VAT , excl. Shipping Cost
-
Short-stroke cylinders, double acting, piston 100 mm, stroke 100 mm
€314.01Excl. 19% VAT , excl. Shipping Cost
-
Short-stroke cylinders, double acting, piston 12 mm, stroke 15 mm
€43.57Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Cylinder switch type:
G
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Cylinder switch type:
G
| Piston diameter [mm] | 63 |
| Stroke [mm] | 30 |
| Version | without magnetic piston |
| C1 (piston rod thread) | M 8 |
| P (compressed air port) | G 1/8" |
| Repair sets | ND 63 REP |
| A [mm] | 86,0 |
| B [mm] | 80 |
| D [mm] | 16 |
| F [mm] | 9,0 |
| G [mm] | 14,0 |
| H [mm] | 46,0 |
| I [mm] | 62 |
| J [mm] | 11,0 |
| K [mm] | 62,0 |
| L [mm] | 37,0 |
| N [mm] | 60,0 |
| Q [mm] | 8,8 |
| S [mm] | 80,0 |
| T [mm] | 14 |
| V [mm] | 13 |
| W [mm] | 7,0 |
| X [mm] | 50 |
| Y [mm] | 22 |
| Z [mm] | 30 |
| AA [mm] | 15,0 |
| AB [mm] | 12 |
| Manufacturer Nr. | ND 63/30 |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571523510 |
| Weight | 7.000000 |
| HS-Code | 84799070 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Short-stroke cylinders, double acting, piston 40 mm, stroke 10 mm
€96.85
Excl. 19% VAT ,
excl. Shipping Cost
Short-stroke cylinders, double acting, piston 32 mm, stroke 50 mm
€91.46
Excl. 19% VAT ,
excl. Shipping Cost
Short-stroke cylinders, double acting, piston 63 mm, stroke 30 mm
€152.46
Excl. 19% VAT ,
excl. Shipping Cost

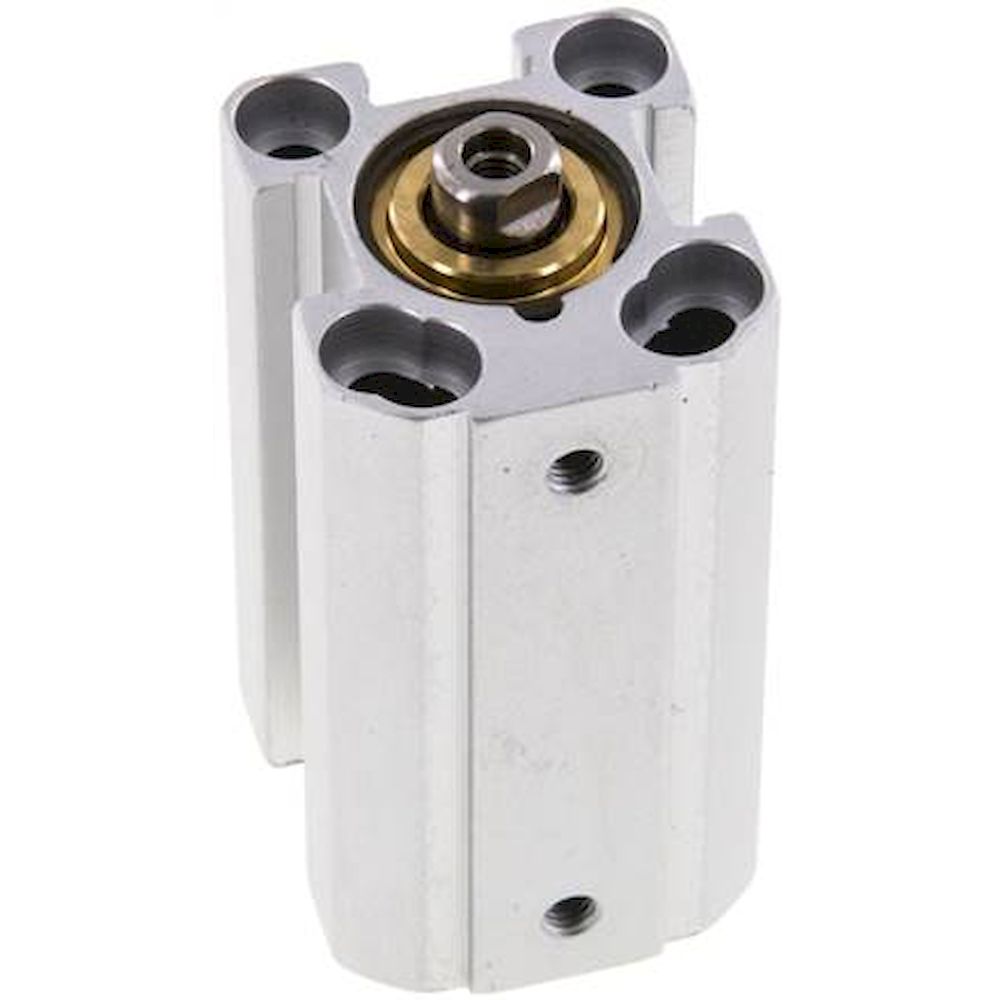

Short-stroke cylinders, double acting, piston 20 mm, stroke 40 mm
