Enerpac HCG1508, 1497 kN Capacity, 200 mm Stroke, Single-Acting, High Tonnage Hydraulic Cylinder
€2,705.80
Excl. 19% VAT ,
excl. Shipping Cost
Article
ENP-HCG1508
Manufacturer Nr.
HCG1508
HCG1508, 1497 kN Capacity, 200 mm Stroke, Single-Acting, High Tonnage Hydraulic Cylinder
Frequently Bought Together
-
This Item:
€2,705.80Excl. 19% VAT , excl. Shipping Cost
-
Enerpac HCG8004, 8149 kN Capacity, 100 mm Stroke, Single-Acting, High Tonnage Hydraulic Cylinder
€0.00Excl. 19% VAT , excl. Shipping Cost
-
Enerpac HCR15012, 1497 kN Capacity, 300 mm Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
€4,335.92Excl. 19% VAT , excl. Shipping Cost
Total price
Model: HCG1508 |ECCN: EAR99 | Harmonization: 8412210075
Series: HCG |Product Line: Industrial Tools
Series: HCG |Product Line: Industrial Tools
- Hardened surface resists side-loading and cyclic wear
- 10% side-load resistance over full stroke
- Stop-ring to prevent plunger blow-out
- Weather protected, inside and out
- Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke
- Certified lifting eyes, base mounting holes and collar threads
Dimension imperial
Collapsed Height A (in)
15.63
Collapsed Height With Optional Tilt Saddle A1 (in)
16.38
Optional Tilt Saddle Addition To Collapsed Height A1 (in)
0.75
Optional Tilt Saddle Diameter J1 (in)
3.82
Extended Height B (in)
23.5
Outside Diameter D (in)
8.46
Cylinder Bore Diameter E (in)
6.5
Plunger Diameter F (in)
4.72
Base to Advance Port H (in)
1.61
Saddle Diameter J1 (in)
3.7
Saddle Protrusion from Plunger K (in)
0.12
Saddle Maximum Tilt Angle Radius (degrees)
5
Base Mounting Holes Thread V
M12 x 1,75
Collar Thread Size W
M215 x 3
Collar Thread Length X (in)
2.17
Dimension metric
Collapsed Height A (mm)
397
Collapsed Height With Optional Tilt Saddle A1 (mm)
416
Optional Tilt Saddle Addition To Collapsed Height A1 (mm)
19
Extended Height B (mm)
597
Outside Diameter D (mm)
215
Cylinder Bore Diameter E (mm)
165
Plunger Diameter F (mm)
120
Base to Advance Port H (mm)
41
Saddle Diameter J (mm)
94
Saddle Protrusion from Plunger K1 (mm)
3
Saddle Maximum Tilt Angle Radius (degrees)
5
Base Mounting Holes Bolt Circle U (mm)
185
Base Mounting Holes Thread V
M12 x 1,75
Collar Thread Size W
M215 x 3
Collar Thread Length X (mm)
55
Base Mounting Holes Thread Depth Z (mm)
22
| Manufacturer Nr. | HCG1508 |
|---|---|
| Manufacturer | Enerpac |
| Weight | 94.000000 |
| Note | Industriewerkzeuge |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought
Enerpac RAR308, 309 kN Capacity, 200 mm Stroke, Double-Acting, Aluminum Hydraulic Cylinder
€2,338.11
Excl. 19% VAT ,
excl. Shipping Cost
Enerpac HCG50010, 5114 kN Capacity, 250 mm Stroke, Single-Acting, High Tonnage Hydraulic Cylinder
€0.00
Excl. 19% VAT ,
excl. Shipping Cost

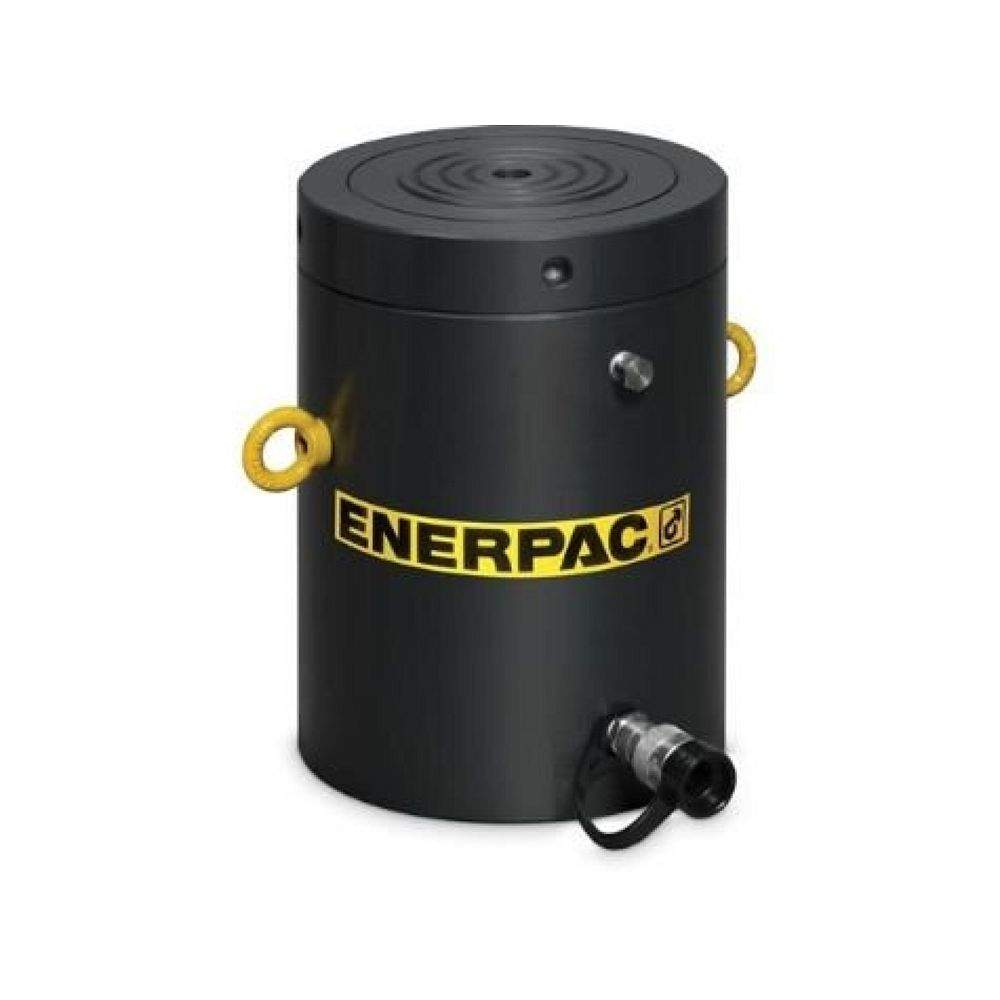

Enerpac HCL10010, 1002 kN Capacity, 250 mm Stroke, Single-Acting, High Tonnage, Lock Nut Hydraulic Cylinder
