Festo 8079819. Motor cable NEBM-F1W31-XC-0.5-F1N-DF1W31
€105.69
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-8079819
Manufacturer Nr.
NEBM-F1W31-XC-0.5-F1N-DF1W31
Motor cable
Frequently Bought Together
-
This Item:
€105.69Excl. 19% VAT , excl. Shipping Cost
-

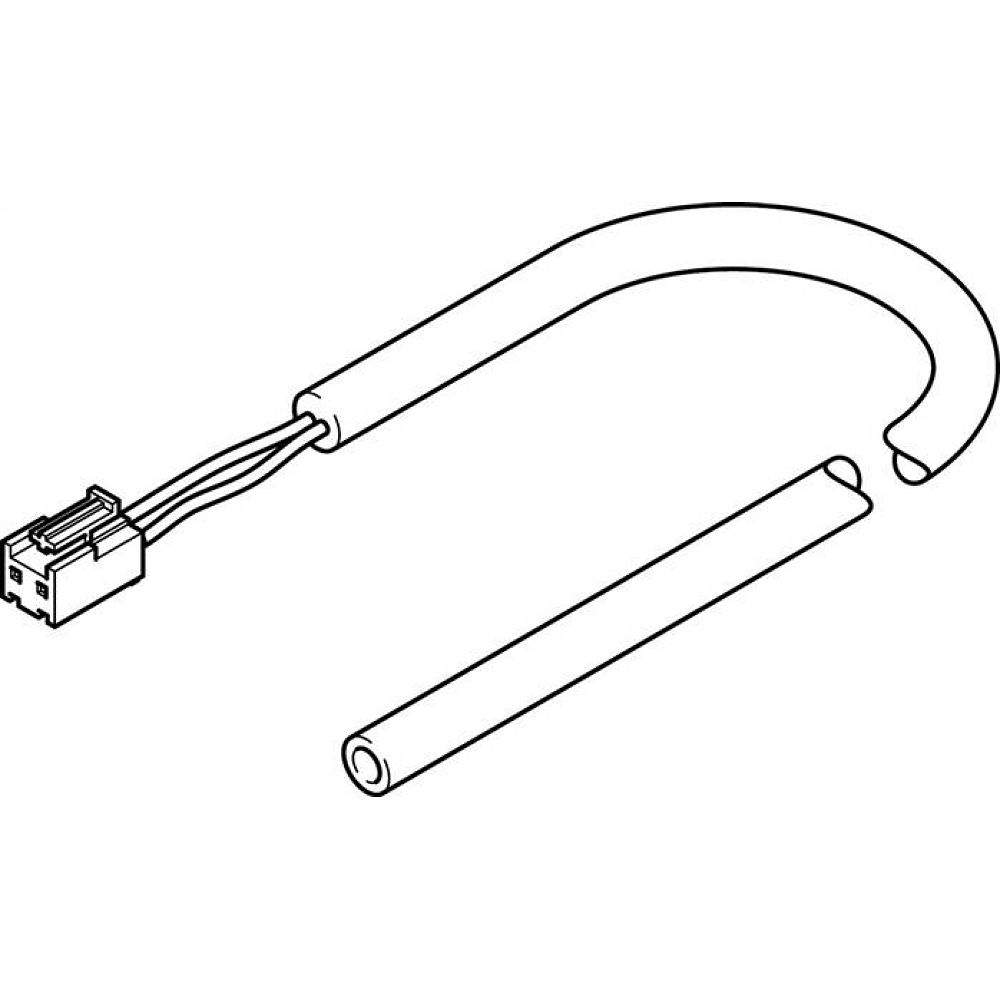

Festo NEBM-L4G2-E-10-N-LE2 (4977492) Motor Cable
€85.40Excl. 19% VAT , excl. Shipping Cost
-
Festo 5219197. Motor cable NEBM-H6G4-E-2.5-Q13N-LE4
€41.97Excl. 19% VAT , excl. Shipping Cost
Total price
| Cable designation | Without inscription label holder |
| Frequency of connection | 30 |
| Product weight | 27 g |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Angular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, note on cable outlet | 90° |
| Electrical connection 1, connector system | Connection pattern F1 |
| Electrical connection 1, number of connections/cores | 31 |
| Electrical connection 1, used connections/cores | 31 |
| Electrical connection 1, type of mounting | Snap-in locking |
| Electrical connection 1, connection pattern | 00995930 |
| Electrical connection 2, function | Controller side |
| Electrical connection 2, design | Angular |
| Electrical connection 2, connection type | Socket |
| Electrical connection 2, cable outlet | Angled |
| Electrical connection 2, note on cable outlet | 90° |
| Electrical connection 2, connector system | Connection pattern F1 |
| Electrical connection 2, number of connections/cores | 31 |
| Electrical connection 2, used connections/cores | 31 |
| electrical connection 2, type of mounting | Snap-in locking |
| Electrical connection 2, connection pattern | 00995930 |
| Operational voltage range DC | 0 V ... 50 V |
| Nominal operating voltage DC | 24 V |
| Current rating at 40° C | 0.5 A |
| Immunity to surge | 0.25 kV |
| Cable length | 0.5 m |
| Cable characteristic | For dynamic applications |
| Test conditions cable | Test conditions on request |
| Bending radius, fixed cable | 0 mm |
| Information on bending radius, fixed cable installation | Can be bent once |
| Bending radius, moving cable | 25 mm |
| Cable structure | 31 wires, distance 0.5 mm |
| Nominal cross section conductor | 0.0105 mm² |
| Degree of protection | IP20 |
| Note on degree of protection | In assembled state |
| Ambient temperature | -20 °C ... 75 °C |
| Ambient temperature with moving cable | -5 °C ... 70 °C |
| Storage temperature | -25 °C ... 55 °C |
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive |
| CE marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS-compliant |
| Pollution degree | 1 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Material cable sheath | PET |
| Cable sheath colour | grey |
| Material housing | PA |
| Housing colour | Black |
| Material electrical contact | Copper alloy, tin-plated |
| Manufacturer Nr. | NEBM-F1W31-XC-0.5-F1N-DF1W31 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568447342 |
| Weight | 0.021000 |
| HS-Code | 85444290 |
| Article authenticity | Original product |
| Condition of article | New |
