Festo 8036688. Solenoid valve VUVS-LT30-M52-MD-G38-F8-1C1
€85.77
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-8036688
Manufacturer Nr.
VUVS-LT30-M52-MD-G38-F8-1C1
Solenoid valve
Frequently Bought Together
-
This Item:
€85.77Excl. 19% VAT , excl. Shipping Cost
-
Festo 577515. Solenoid valve VUVS-LT20-M52-MD-G18-F7-1C1
€70.22Excl. 19% VAT , excl. Shipping Cost
-
Festo 575617. Solenoid valve VUVS-L30-P53C-MZD-G38-F8
€92.42Excl. 19% VAT , excl. Shipping Cost
Total price
| Valve function | 5/2-way, monostable |
| Type of actuation | Electric |
| Valve size | 31 mm |
| Standard nominal flow rate | 1800 l/min |
| pneumatic working port | G3/8 |
| Operating voltage | 24V DC |
| Operating pressure | 0.25 MPa ... 1 MPa |
| Operating pressure | 2.5 bar ... 10 bar |
| Design | Poppet seat |
| Type of reset | Mechanical spring |
| Approval | c UL us - Recognized (OL) |
| Degree of protection | IP65 With plug socket To IEC 60529 |
| Nominal size | 8.1 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting Non-detenting |
| Type of piloting | Pilot actuated |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Symbol | 00991035 |
| lap | Underlap |
| b value | 0.3 |
| C value | 9.9 l/sbar |
| Switching time off | 26 ms |
| Switching time on | 17 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 2000 µs |
| Max. negative test pulse with 1 signal | 3600 µs |
| Characteristic coil data | 24 V DC: 3.3 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Media temperature | -10 °C ... 60 °C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 486 g |
| Electrical connection | Type C To EN 175301-803 |
| Type of mounting | Either: On manifold rail With through-hole |
| Breather connection | Not ducted |
| Pilot exhaust port 84 | M5 |
| Pneumatic connection, port 1 | G3/8 |
| Pneumatic connection, port 2 | G3/8 |
| Pneumatic connection, port 3 | G3/8 |
| Pneumatic connection, port 4 | G3/8 |
| Pneumatic connection, port 5 | G3/8 |
| Note on materials | RoHS-compliant |
| Material seals | HNBR NBR TPE-U(PU) |
| Material housing | Painted die cast aluminium |
| Material piston slide | POM |
| Material screws | Galvanised steel |
| Manufacturer Nr. | VUVS-LT30-M52-MD-G38-F8-1C1 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568429645 |
| Weight | 0.500000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought

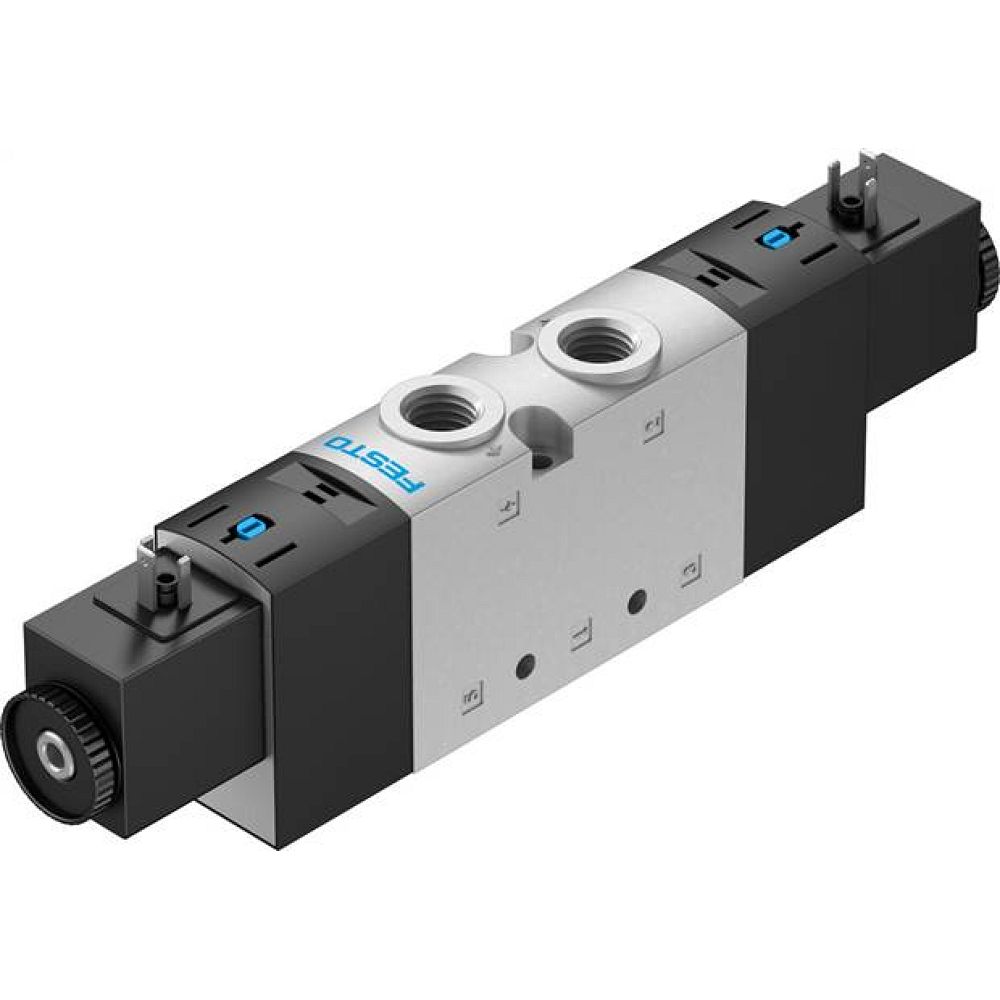

Festo 8035211. Solenoid valve VUVS-LT25-T32H-MD-G14-F8-1C1
€104.24
Excl. 19% VAT ,
excl. Shipping Cost

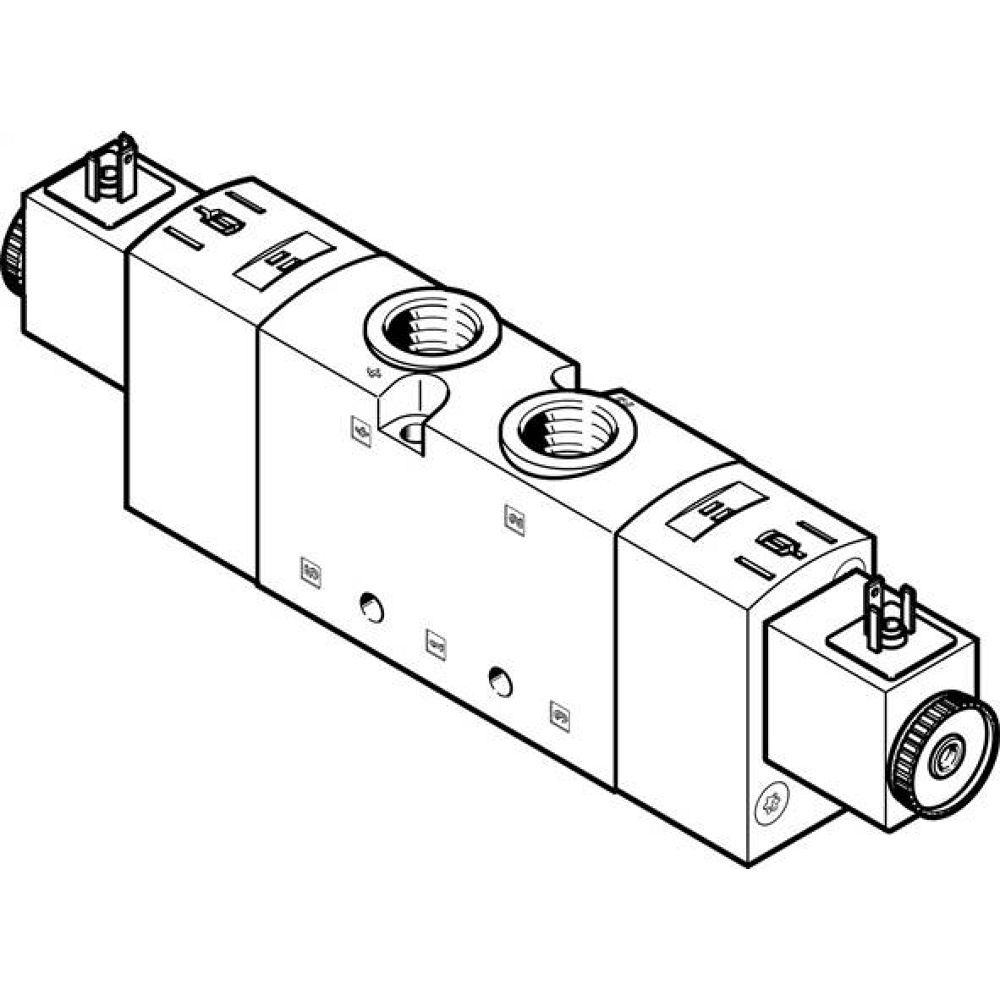

Festo 8036702. Solenoid valve VUVS-LT30-T32C-MD-G38-F8-1C1
