Festo 8070244. ball valve actuator unit VZBM-A-1/2"-RP-25-D-2-B2-PB20
€176.87
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-8070244
Manufacturer Nr.
VZBM-A-1/2"-RP-25-D-2-B2-PB20
ball valve actuator unit
Frequently Bought Together
-
This Item:
€176.87Excl. 19% VAT , excl. Shipping Cost
-

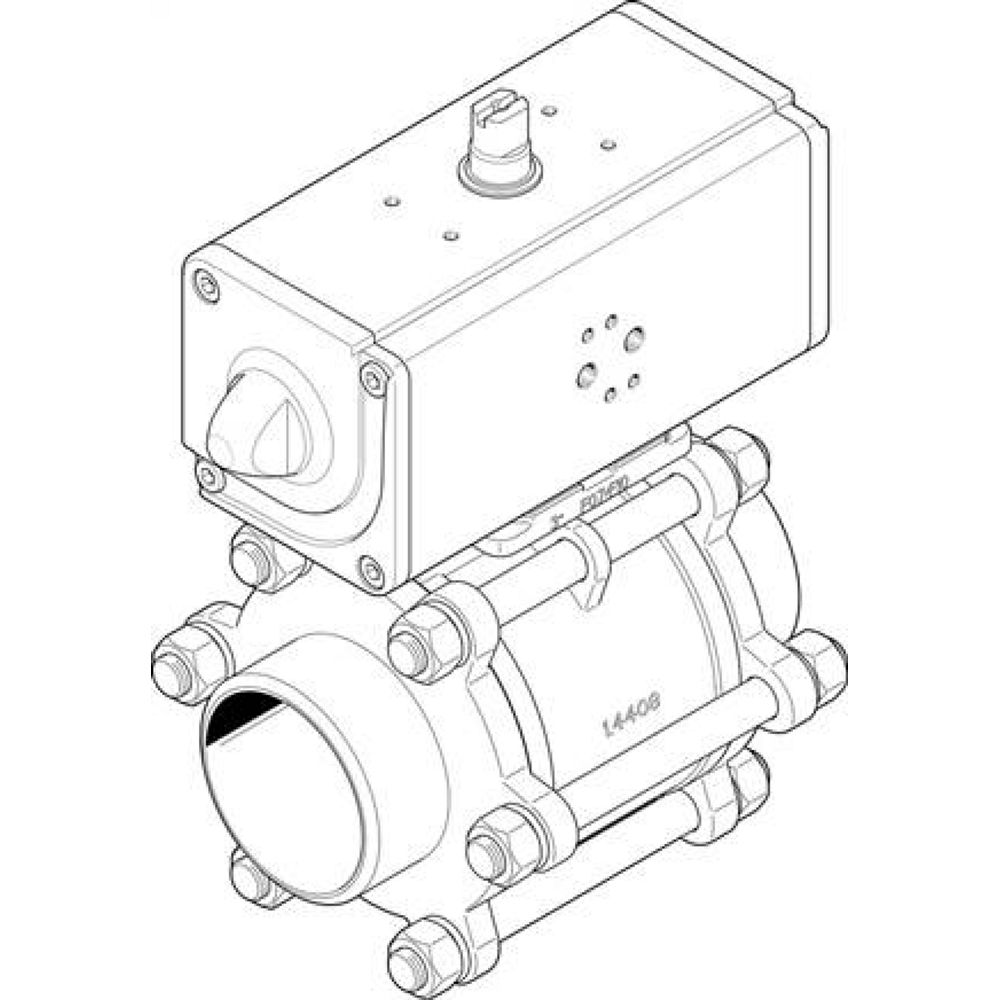

Festo 1774112. ball valve actuator unit VZBA-3"-WW-63-T-22-F0710-V4V4T-PS180-R-90-4-C
€1,656.31Excl. 19% VAT , excl. Shipping Cost
-
Festo 8070271. ball valve actuator unit VZBM-A-11/4"-RP-25-F-3L-B2-PB80
€403.46Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | 2-way ball valve Semi-rotary drive |
| Type of actuation | Pneumatic |
| Mounting position | optional |
| Type of mounting | In-line installation |
| Connection Process valve | Rp1/2 |
| Switching position indicator | Slot direction = flow direction |
| Nominal size DN | 15 |
| Operating pressure | 5.5 bar ... 8 bar |
| Nominal pressure PN | 25 |
| Symbol | 00992011 |
| Medium | Compressed air to ISO 8573-1:2010 [-:-:-] Inert gases Water – no water vapour Neutral fluids |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature | -15 °C ... 90 °C |
| Ambient temperature | -20 °C ... 80 °C |
| Flow rate Kv | 15 m³/h |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | Brass, nickel-plated |
| Material number housing | CW617N |
| Material seals | FPM HNBR PTFE |
| Material ball | Brass, chrome-plated |
| Material number ball | CW614N |
| Material shaft | Brass |
| Material number shaft | CW614N |
| Product weight | 1363 g |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Manufacturer Nr. | VZBM-A-1/2"-RP-25-D-2-B2-PB20 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568445300 |
| Weight | 0.100000 |
| HS-Code | 84818081 |
| Article authenticity | Original product |
| Condition of article | New |
