Festo 8066683. connecting cable NEBB-M12W5-P-5-LE4
€9.37
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-8066683
Manufacturer Nr.
NEBB-M12W5-P-5-LE4
connecting cable
Frequently Bought Together
-
This Item:
€9.37Excl. 19% VAT , excl. Shipping Cost
-
Festo 8001373. Control cable NEBC-S1G25-K-3.2-N-LE25
€24.01Excl. 19% VAT , excl. Shipping Cost
-
Festo 560415. Connecting cable VMPAL-KMSK-S-SD25-IP67-10
€228.37Excl. 19% VAT , excl. Shipping Cost
Total price
| Conforms to standard | Wire colours and connection numbers to EN 60947-5-2 EN 61076-2-101 |
| Explosion protection | The information in the certificate must be observed! Zone 2 (ATEX) Zone 22 (ATEX) |
| Cable designation | With label holder |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connector system | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of connections/cores | 5 |
| Electrical connection 1, used connections/cores | 4 |
| Electrical connection 1, type of mounting | Screw-type lock with A/F13 |
| Electrical connection 1, connection pattern | 00991861 |
| Electrical connection 2, function | Controller side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connector system | Open end |
| Electrical connection 2, number of connections/cores | 4 |
| Electrical connection 2, used connections/cores | 4 |
| Operational voltage range DC | 0 V ... 250 V |
| Operational voltage range AC | 0 V ... 250 V |
| Current rating at 40° C | 4 A |
| Immunity to surge | 2.5 kV |
| Cable length | 5 m |
| Cable characteristic | For static applications |
| Test conditions cable | Test conditions on request |
| Bending radius, fixed cable | 14 mm |
| Cable diameter | 4.5 mm |
| Cable structure | 4 x 0.25 mm² |
| Nominal cross section conductor | 0.25 mm² |
| Wire ends | Sheath removed Cut off bluntly |
| Degree of protection | IP65 IP68 IP69K |
| Note on degree of protection | In assembled state |
| Ambient temperature | -25 °C ... 70 °C |
| CE mark (see declaration of conformity) | To EU Low Voltage Directive In accordance with EU RoHS Directive |
| CE marking (see declaration of conformity) | To UK regulations for electrical equipment To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 |
| Note on materials | RoHS-compliant |
| Pollution degree | 3 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Material cable sheath | PVC |
| Cable sheath colour | grey |
| Material housing | TPE-U(PU) |
| Housing colour | Black |
| Material screw-type lock | Nickel-plated brass |
| Material seals | NBR |
| Material electrical contact | Gold-plated copper alloy |
| Material insulating sheath | PVC |
| Manufacturer Nr. | NEBB-M12W5-P-5-LE4 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568297251 |
| Weight | 0.165000 |
| HS-Code | 85444290 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought

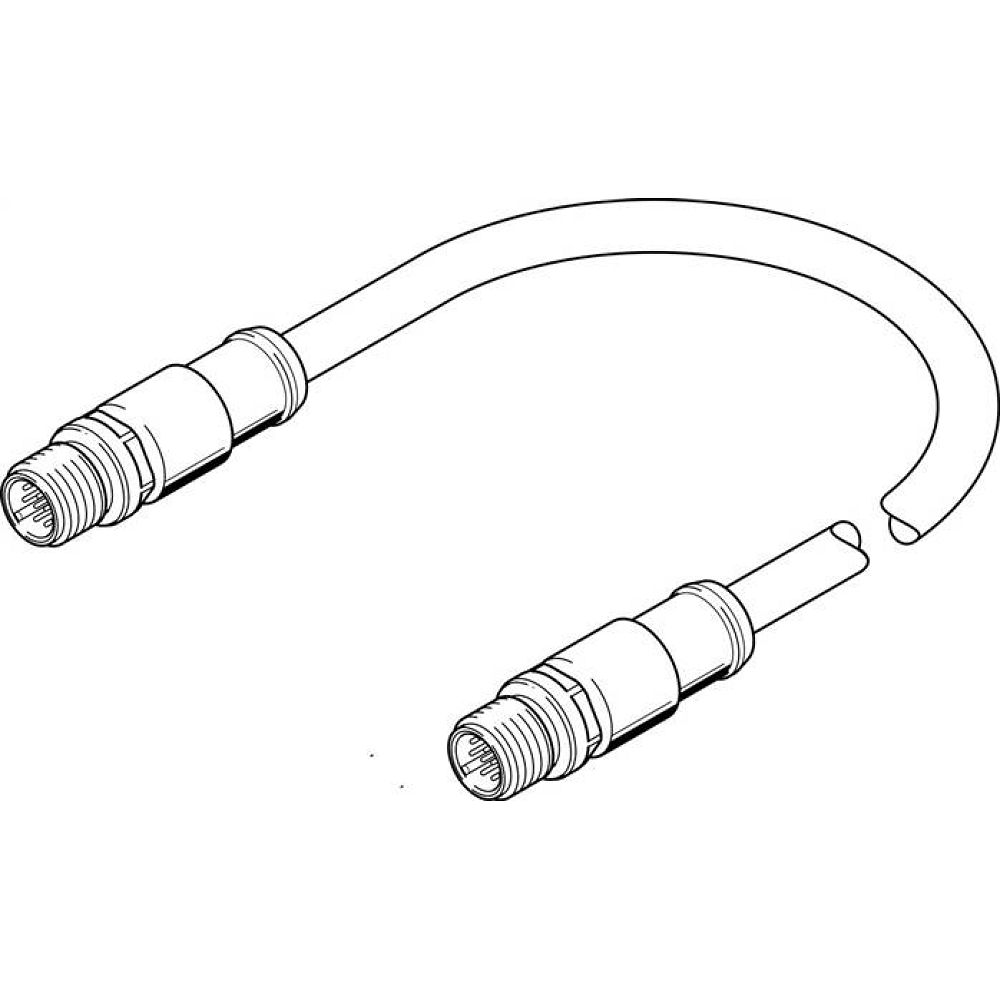

Festo 3947404. connecting cable NEBS-SM12G12-E-0.3-N-M12G12
