Festo 4514999. Valve VOFD-L50T-M32-MN-FG14-10-F10
€293.47
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-4514999
Manufacturer Nr.
VOFD-L50T-M32-MN-FG14-10-F10
Valve
Frequently Bought Together
-
This Item:
€293.47Excl. 19% VAT , excl. Shipping Cost
-

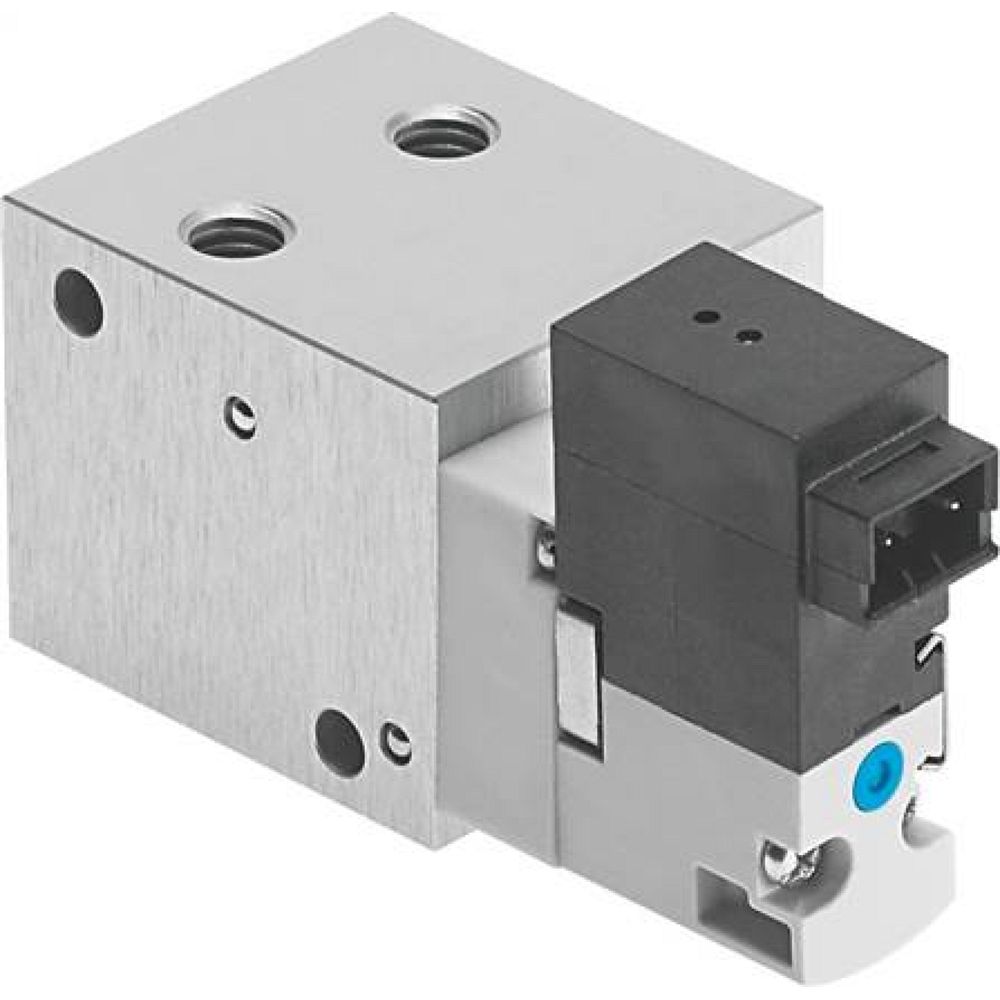

Festo 560707. Solenoid valve VOVG-S12-M52Q-AH-M5-1H2
€84.03Excl. 19% VAT , excl. Shipping Cost
-
Festo 197032. Solenoid valve MHP1-M1H-3/2O-M3-TC
€29.96Excl. 19% VAT , excl. Shipping Cost
Total price
| Valve function | 3/2-way, closed, monostable |
| Type of actuation | Electric |
| Construction width | 50.5 mm |
| Standard nominal flow rate | 493 l/min |
| pneumatic working port | Flange 1/4 NAMUR port pattern |
| Operating pressure | 0 MPa ... 1 MPa |
| Operating pressure | 0 bar ... 10 bar |
| Design | Directly actuated poppet valve |
| Type of reset | Mechanical spring |
| Degree of protection | IP65 |
| Certificate issuing authority | TÜV 968/V 1251.00/21 |
| Nominal size | 5 mm |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | None |
| Type of piloting | Direct |
| Flow direction | Reversible |
| Symbol | 00992956 |
| Safety function | Safe venting |
| Safety Integrity Level (SIL) | Up to SIL 3 High Demand mode To SIL 3 Low Demand mode |
| Suitability for vacuum | yes |
| b value | 0.25 |
| C value | 2 l/sbar |
| Flow rate Kv pressurisation | 0.36 m³/h |
| Flow rate Kv exhaust | 0.36 m³/h |
| Standard nominal flow rate 2-3 | 429 l/min |
| Switching time off | 60 ms |
| Switching time on | 40 ms |
| Explosion protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:2:2] |
| Extended ambient temperature | -25 ... 60° C Low demand mode |
| Corrosion resistance class CRC | 4 - Very high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Media temperature | -25 °C ... 60 °C |
| Ambient temperature | -25 °C ... 60 °C |
| Product weight | 560 g |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | Flange 1/4 NAMUR port pattern |
| Pneumatic connection, port 3 | G1/4 |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material housing | Ematal coated aluminium |
| Manufacturer Nr. | VOFD-L50T-M32-MN-FG14-10-F10 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568274887 |
| Weight | 0.650000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
