Festo 560983. Sub-base VMPAL-AP-4X14

Name: Festo 560983. Sub-base VMPAL-AP-4X14
Brand: Festo
SKU: FES-560983
Price: 30.86 EUR
Availability: InStock

€30.86

Excl. 19% VAT , excl. Shipping Cost

Article

FES-560983

Manufacturer Nr.

VMPAL-AP-4X14

Sub-base

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 560983. Sub-base VMPAL-AP-4X14
€30.86
Excl. 19% VAT , excl. Shipping Cost

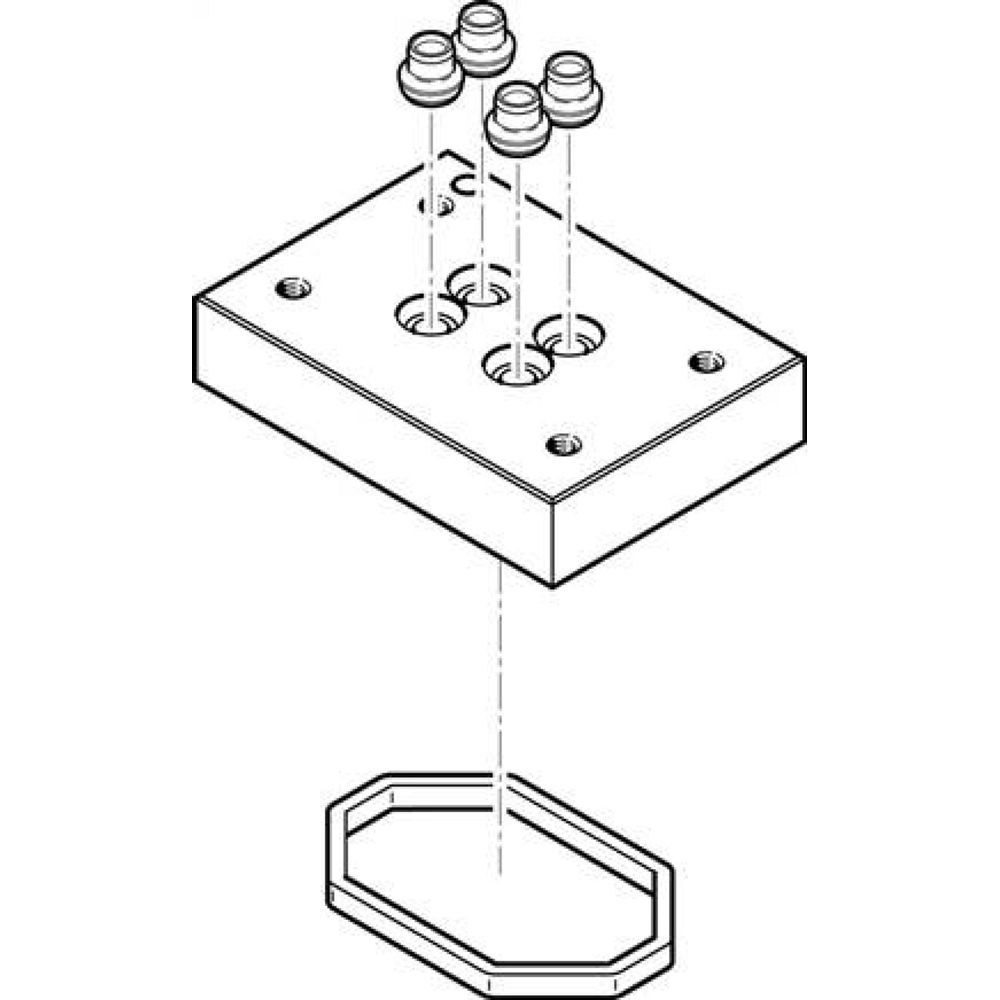

Festo CPV10-VI-P2-M7-D (538811) Multi-Pin Plug
€84.38
Excl. 19% VAT , excl. Shipping Cost
Festo 560957. Plate VMPAL-EG-QS10
€9.13
Excl. 19% VAT , excl. Shipping Cost

Total price

Width	59.6 mm
Length	107.3 mm
Grid dimension	14.9 mm
Valve size	14 mm
Max. number of valve positions	4
Flow direction	Reversible
Valve terminal structure	Valve sizes can be mixed
Operating pressure	-0.09 MPa ... 1 MPa
Operating pressure	-0.9 bar ... 10 bar
Pilot pressure	0.3 MPa ... 0.8 MPa
Pilot pressure	3 bar ... 8 bar
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	3 - high corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-5 °C ... 50 °C
Product weight	130.8 g
Pneumatic connection, port 2	For 14 mm cartridge
Pneumatic connection, port 4	For 14 mm cartridge
Note on materials	RoHS-compliant
Material sub-base	PA-reinforced

More Information
Manufacturer Nr.	VMPAL-AP-4X14
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568260033
Weight	0.175000
HS-Code	84819000
Article authenticity	Original product
Condition of article	New
