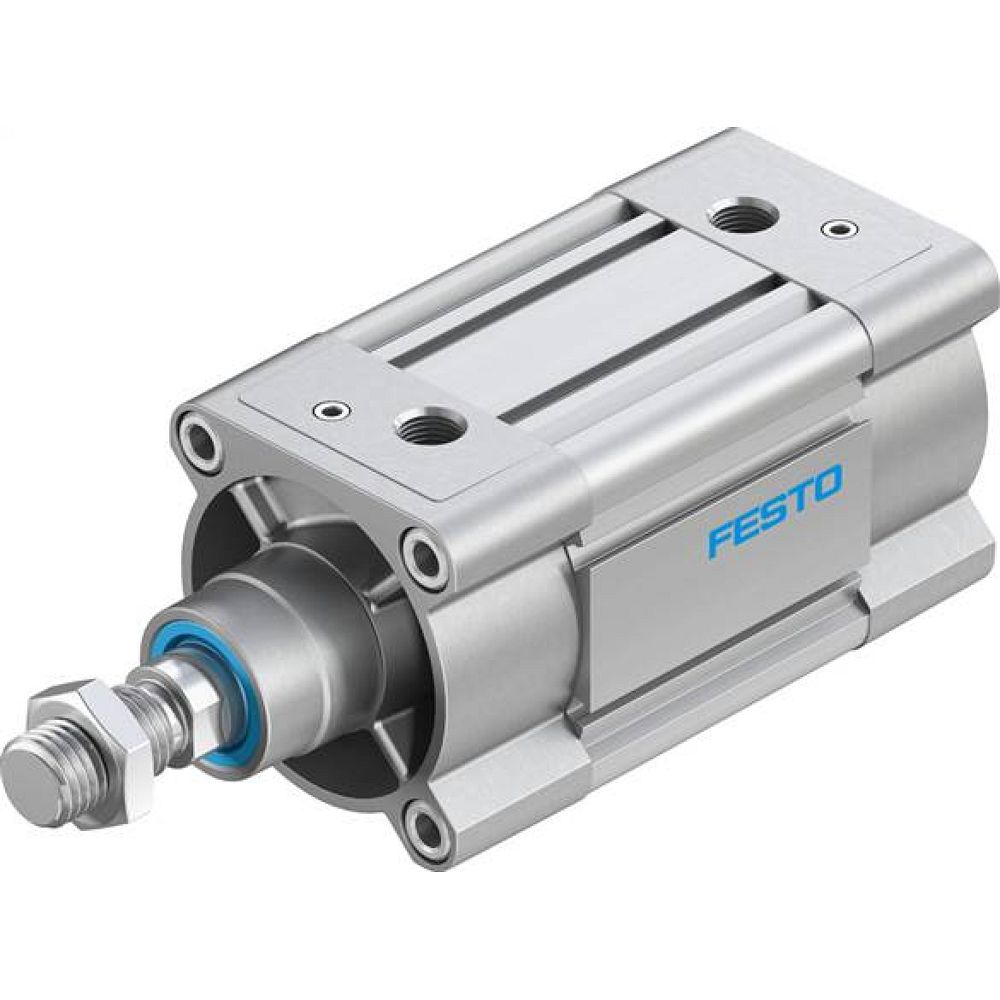

Festo 3660630. ISO cylinder DSBC-40-320-D3-PPVA-N3
Manufacturer Nr.
DSBC-40-320-D3-PPVA-N3
Frequently Bought Together
Stroke 320 mm Piston diameter 40 mm Piston rod thread M12x1.25 Cushioning Pneumatic cushioning, adjustable at both ends Mounting position optional Conforms to standard ISO 15552 Piston-rod end Male thread Design Piston
Piston rod
Profile barrel Position detection Via proximity switch Symbol 00991235 Variants Piston rod at one end Operating pressure 0.06 MPa ... 1.2 MPa Operating pressure 0.6 bar ... 12 bar Mode of operation Double-acting Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -20 °C ... 80 °C Impact energy in end positions 0.7 J Cushioning length 19 mm Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 633 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 754 N Moving mass for 0 mm stroke 205 g Additional moving mass per 10 mm stroke 16 g Basic weight for 0 mm stroke 768 g Additional weight per 10 mm stroke 49 g Type of mounting Either:
Via female thread
With accessories Pneumatic connection G1/4 Note on materials RoHS-compliant Material cover Die-cast aluminium, coated Material piston seal TPE-U(PU) Material piston Wrought aluminium alloy Material piston rod High-alloy steel Material piston rod wiper TPE-U(PU) Buffer seal material TPE-U(PU) Cushioning piston material POM Material cylinder barrel Smooth-anodised wrought aluminium alloy Material nut Galvanised steel Material rod wiper TPE-E Material bearing Metal polymer compound Material collar screws Galvanised steel
More Information
Manufacturer Nr.
DSBC-40-320-D3-PPVA-N3
Manufacturer
Festo
GPSR manufacturer information
Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN
4052568273293
Weight
2.200000
HS-Code
84123100
Article authenticity
Original product
Condition of article
New
