Festo 3540146. Angle seat valve VZXF-L-M22C-M-B-G2-450-M1-V4B2T-50-3
€456.97
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-3540146
Manufacturer Nr.
VZXF-L-M22C-M-B-G2-450-M1-V4B#
Angle seat valve
Frequently Bought Together
-
This Item:
€456.97Excl. 19% VAT , excl. Shipping Cost
-
Festo 4745215. Ball valve VZBE-3/8-T-63-D-2-M-V15V15
€17.92Excl. 19% VAT , excl. Shipping Cost
-
Festo 1002562. Angle seat valve VZXF-L-M22C-M-B-N2-450-M1-V4V4T-50-3
€529.60Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | Poppet valve with piston drive |
| Type of actuation | Pneumatic |
| Sealing principle | Soft |
| Mounting position | optional |
| Type of mounting | In-line installation |
| Line connection | Threaded coupling G2 to DIN ISO 228 |
| Nominal size | 45 mm |
| Valve function | 2/2-way, closed, monostable |
| Flow direction | Non-reversible |
| Medium pressure | 0 MPa ... 0.3 MPa |
| Medium pressure | 0 bar ... 3 bar |
| Nominal pressure PN | 40 |
| Exhaust-air function | Without flow control option |
| Type of reset | Mechanical spring |
| Type of piloting | Externally controlled |
| Pneumatic connection | Female thread G1/8 |
| Operating pressure | 0.6 MPa ... 1 MPa |
| Operating pressure | 6 bar ... 10 bar |
| Operating pressure | 87 psi ... 145 psi |
| Symbol | 00991367 |
| Medium | Vapour Mineral oil-based hydraulic fluid Inert gases Mineral oil Water Filtered compressed air, grade of filtration 200 µm Neutral fluids |
| Direction of flow | Below valve seat, for gaseous and liquid media |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Media temperature | -40 °C ... 200 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Flow rate Kv | 19.5 m³/h |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material process valve housing | Stainless steel casting |
| Material number process valve housing | 1.4408 |
| Material spindle seal | PTFE |
| Material seat seal | PTFE |
| Product weight | 3500 g |
| CE mark (see declaration of conformity) | In accordance with EU Pressure Equipment Directive |
| CE marking (see declaration of conformity) | to UK Pressure Equipment Regulations |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Material drive housing | Nickel-plated brass |
| Manufacturer Nr. | VZXF-L-M22C-M-B-G2-450-M1-V4B# |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568271121 |
| Weight | 4.100000 |
| HS-Code | 84818073 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought

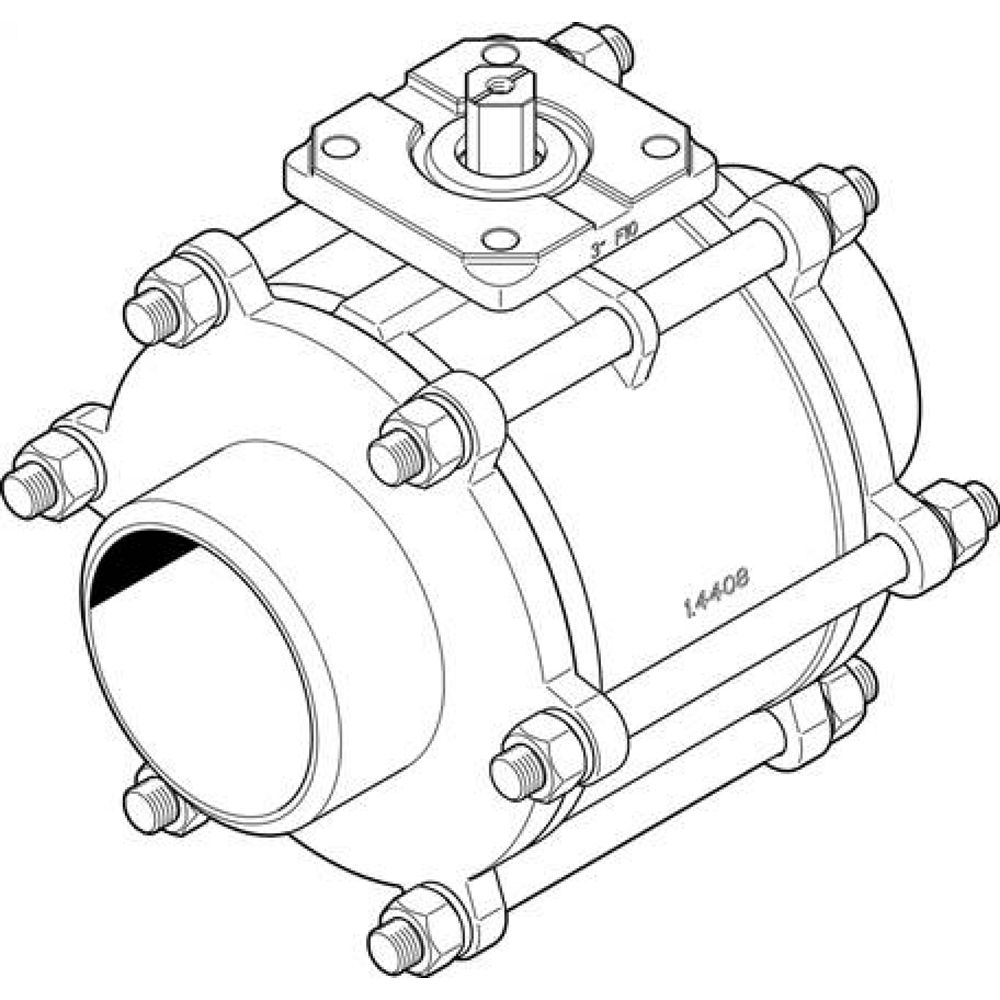

Festo 1686705. Ball valve VZBA-4"-WW-63-T-22-F10-V4V4T
