Festo 3535720. Angle seat valve VZXF-L-M22C-M-A-G112-350-M1-H3B1T-50-7
€215.39
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-3535720
Manufacturer Nr.
VZXF-L-M22C-M-A-G112-350-M1-H#
Angle seat valve
Frequently Bought Together
-
This Item:
€215.39Excl. 19% VAT , excl. Shipping Cost
-

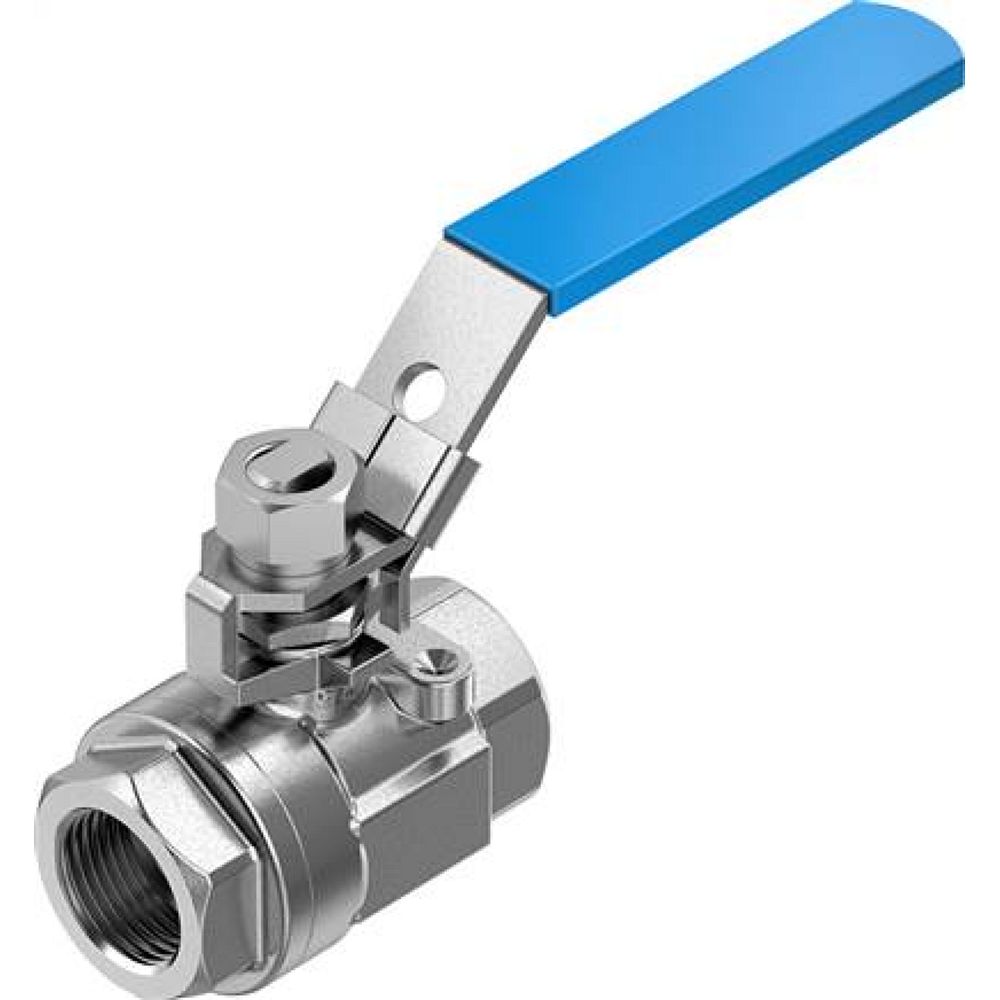

Festo 4745218. Ball valve VZBE-3/4-T-63-D-2-M-V15V15
€28.94Excl. 19% VAT , excl. Shipping Cost
-
Festo 534308. Ball valve VAPB-1 1/2-F-25-F0405
€59.35Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | Poppet valve with piston drive |
| Type of actuation | Pneumatic |
| Sealing principle | Soft |
| Mounting position | optional |
| Type of mounting | In-line installation |
| Line connection | Threaded coupling G1 1/2 to DIN ISO 228 |
| Nominal size | 35 mm |
| Valve function | 2/2-way, closed, monostable |
| Flow direction | Non-reversible |
| Medium pressure | 0 MPa ... 0.7 MPa |
| Medium pressure | 0 bar ... 7 bar |
| Nominal pressure PN | 16 |
| Exhaust-air function | Without flow control option |
| Type of reset | Mechanical spring |
| Type of piloting | Externally controlled |
| Pneumatic connection | Female thread G1/8 |
| Operating pressure | 0.6 MPa ... 1 MPa |
| Operating pressure | 6 bar ... 10 bar |
| Operating pressure | 87 psi ... 145 psi |
| Symbol | 00991367 |
| Medium | Vapour Inert gases Filtered compressed air, grade of filtration 200 µm |
| Direction of flow | Above valve seat, for gaseous media |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Media temperature | -40 °C ... 200 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Flow rate Kv | 23 m³/h |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material process valve housing | Gunmetal (red brass) |
| Material number process valve housing | CC499K |
| Material spindle seal | PTFE |
| Material seat seal | PTFE |
| Product weight | 2300 g |
| CE mark (see declaration of conformity) | In accordance with EU Pressure Equipment Directive |
| CE marking (see declaration of conformity) | to UK Pressure Equipment Regulations |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Material drive housing | Brass |
| Manufacturer Nr. | VZXF-L-M22C-M-A-G112-350-M1-H# |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568270360 |
| Weight | 2.600000 |
| HS-Code | 84818079 |
| Article authenticity | Original product |
| Condition of article | New |
